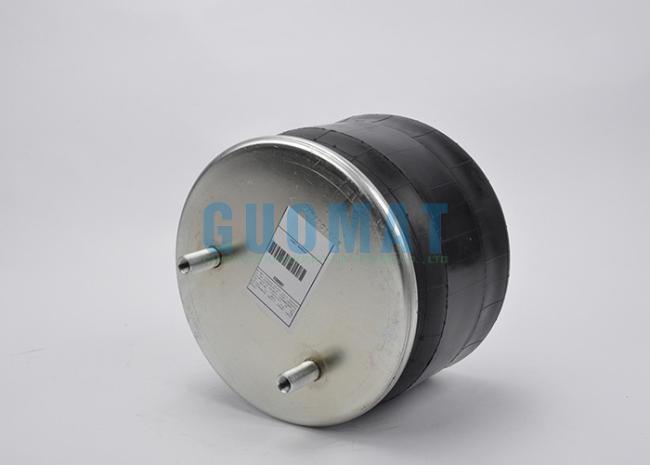

Firestone 1T17B-5 Suspension Air Spring W01-358-8755 Goodyear 1R13-124
FIRESTONE 1T17B-5 Suspension Air Spring W01-358-8755 GOODYEAR 1R13-124
Product Information
GUOMAT NO. : 1T8755
VEHICLE TYPE: Truck
POSITION: The Floating Bridge
OEM REFERENCES
| FIRESTONE 1T17B-5 / 1T17B 5 / 1T17B5 | Continental ContiTech 10 10-15 P 522, |
| FIRESTONE W01-358-8755 / W01 358 8755 / W013588755 | ContiTech order number 64397, |
| Firestone: 8710 | Hendrickson S-22045, |
| Firestone: 8755 | Hendrickson S-21623, |
| Firestone: 8758 | Airtech number 137152, |
| CONTITECH 10 10-15 S 522 / 1010-15S522 / 1010-15S 522 / 101015S522 | Airtech Ref. 38755 C ALU, |
| GOODYEAR 1R13-124 / 1R13 124 / 1R13124 | Automann 1DK25B-8755, |
| 566-26-3-050 / 566 26 3 050 / 566263050 | Firestone number W01-358-8755, |
| Piston: 566-20-7-127 | Firestone Style 1T17B-5, |
| Primeride AS1553 PR17588, | FleetPride AS8755, |
| TRP AS87550 | Goodyear 1R13-124, |
| Goodyear Flex No. 566263050, |
VEHICLE OEM REFERENCES
HENDRICKSON S22045 / S-22045
Hendrickson Trailer Number:S-21623 / S21623
Hendrickson Trailer HK190T
TRIANGLE 8522 6390
Triangle Part Number:8522
Triangle Bellows Number:6390
Dallas Spring: AS8755
Automann: AB1DK25B-8755
Sirco: AS-8755
Triangle spring: 8522
Firestone: 8710
Firestone: 8755
Firestone: 8758
Kande Technology: 64397
ContiTech: 1010-15A760
ContiTech: 1010-15A760H
ContiTech: 1010-15S522
ContiTech: 1010-15S711
Ultraman: AB1DK25B-8755
Dallas Spring: AS8755
Sirco: AS-8755
Midland/Hardware: CS113124
Euclid/Meritor After Sales: E-FS8710
Euclid/Meritor After Sales: E-FS8755
Euclid/Meritor After-sales: FS8710
Euclid/Meritor after-sales service: FS8755
Technical Parameters
Top Plate Number:3300

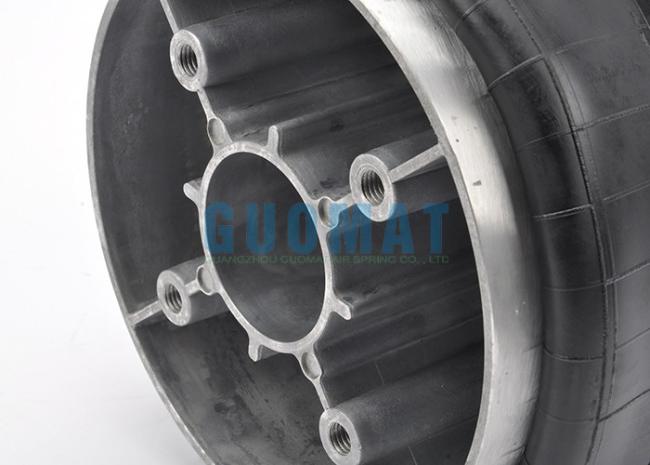

Piston Number:9734
Extended Height:19.70 inch
Compressed Height: 7.20 inch
Top Plate Diameter: 10.38 inch
Bottom Plate Diameter:8.42 inch
Top Plate Hole/Stud: 2
Bottom Plate Hole/Stud: 4
Collapsed Height: 7.3 inch
The warranty period of Air Spring
GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.
Our air spring provides high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.
Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
