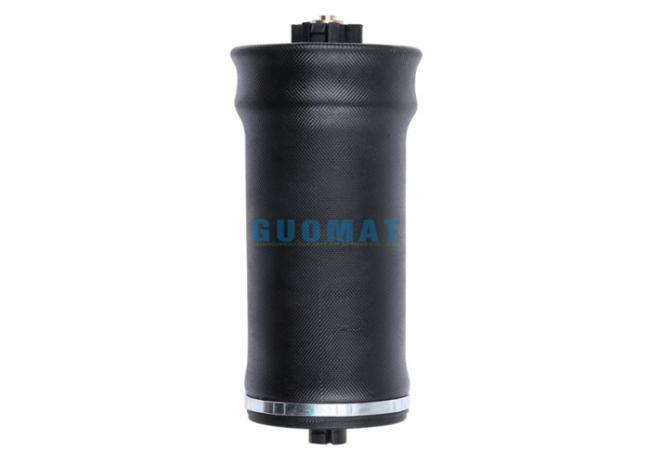

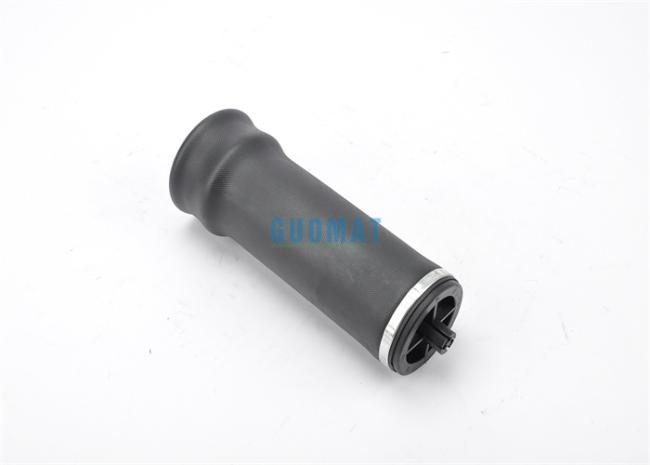

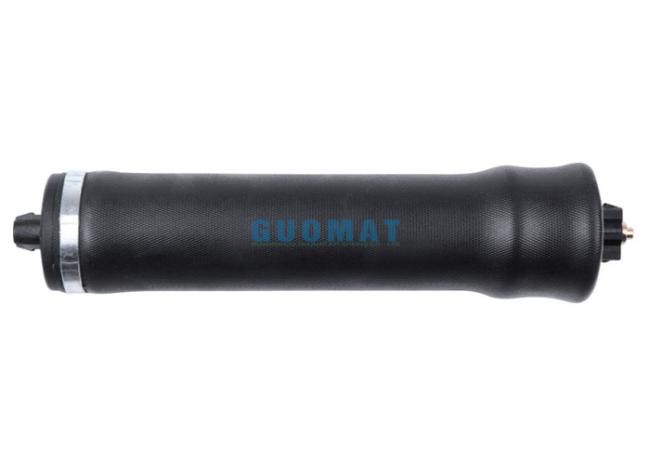

SC31-Y215 Air Bellow Universal Air Ride Suspension For Firestone Freightliner
Air Bellow SC31-Y215 Universal Air Ride Suspension Fit for Firestone/for Freightliner/ for Contitech
Specification
|
Type |
Stainless Steel Piston Air spring |
Part NO. |
18-40977-000REV |
|
Car make |
Freightliner |

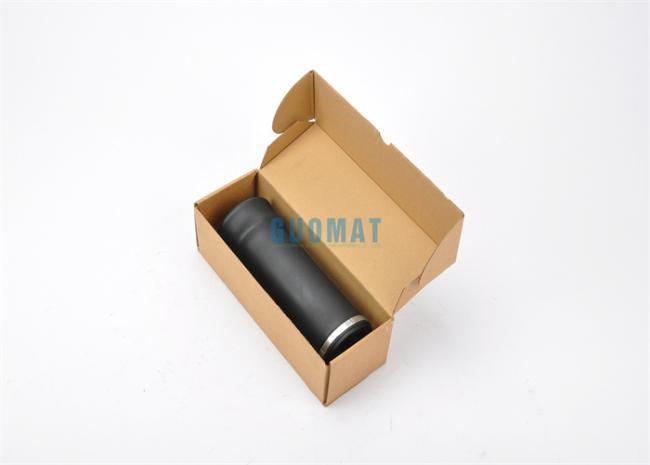

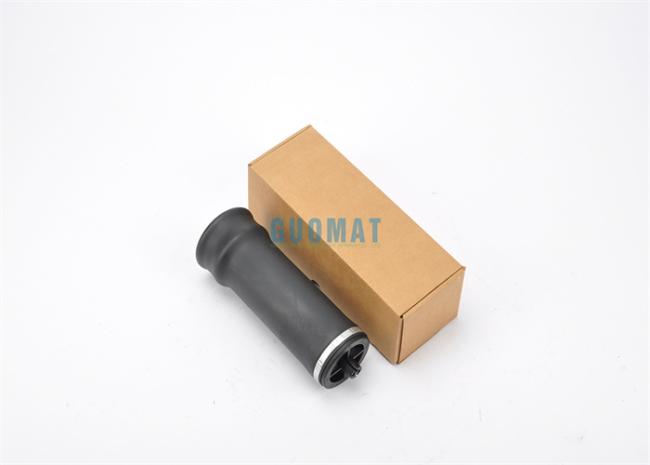

Package |
Strong Cartons |
|
Position |
Front |
Warranty |
12 Months |
|
Rubber type |
Natural Rubber |
Place of origin |
Guangzhou China |
|
OEM NO. |
Firestone W02-358-7215, FSIP : W023777215, F-reightliner: 1852651000 1852651001, ContiTech: SC31B207 SC31Y215 |
Working temperature |
-40°C bis +70°C |
GuoMat’ sleeve-style air spring provide operator and passenger comfort through truck and bus driver seat springs,truck cab vibration isolation system and ride springs for passenger vehicles and light trucks. GuoMat’s sleeve air springs are also idea for use as a actuators and isolators in industrial applications.
Applications:
Ride Springs for passenger cars and trucks
Acuators and isolators for industrial applications
Isolators for truck cab suspensions
Seat springs and cab springs for trucks and buses
Sleeve Type Rolling Air Springs Combine
Gas-Filled Hole / Air Inlet: By filling air porosity for inflatable air spring
Bolt / Mounting Stud: Bolt is fixed as the installation of air spring in car or equipment
Upper Retainer: Upper Retainer to protect the whole air spring
Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision
Flexible Bellows
The main part can lock the air and flexible activities up and down
Piston/ The base: Base is also carrying fluctuation pressure, sealed air and make skins can according to the fluctuation of the trajectory
Mounting Stud: fixed as the installation of air spring in car or equipment
