FS 50-5 CI G 1/4 CA Continental Air Springs Isolator With Maximum Stroke 5cm For Small Space Equipment

FS 50-5 CI G 1/4 CA Continental Air Springs Isolator With Maximum stroke 5 cm For Small Space Equipment

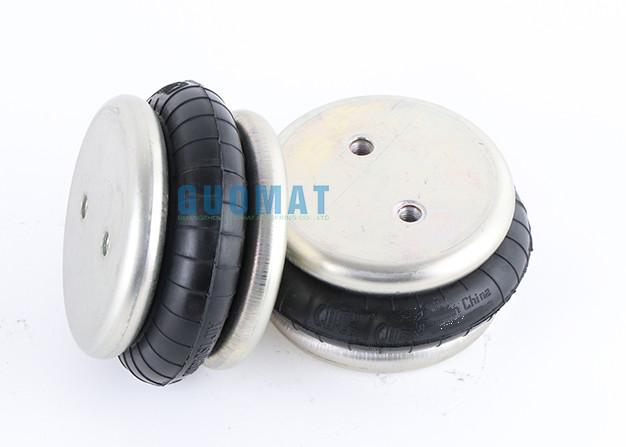

GUOMAT 1B6140 Air Spring product description:

The air spring shock absorber GUOMAT 1B6140 Replace Continental Air Spring FS 50-5 CI G 1/4 CA can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber GUOMAT 1B6140 Replace Continental Air Spring FS 50-5 CI G 1/4 CA to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber GUOMAT 1B6140 Replace Continental Air Spring FS 50-5 CI G 1/4 CA must be used to absorb the force

• Before disassembling the air spring shock absorber GUOMAT 1B6140 Replace Continental Air Spring FS 50-5 CI G 1/4 CA , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber GUOMAT 1B6140 Replace Continental Air Spring FS 50-5 CI G 1/4 CA shall not be in contact with other parts

OEM Original Equipment Manufacturer:

GUOMAT 1B6140 Technical Parameters:

Top Cover Plate Diameter:114 mm

Bottom Cover Plate Diameter :114 mm

Screw Center Distance:44.5 mm

Distance Gas Hole Between Nut:22.25

Gas Hole:

Screw (Nut) Tooth:2csXM8X1.5

Rubber Bellows MAX Diameter:145mm

The Stroke:50-88 mm

Maximum Diameter @ 100 PSIG (inches)
6
Maximum Height (inches)
3.3
Maximum travel (inches)
1.4
Minimum Usable Height (Inches)
1.9
Force @ 80PSI at 1 inch (lb) stroke
930
Force @ 80PSI (lbs) at max stroke
580
Material
2-layer standard wire
