Air Lift Bellows Convoluted Air Spring Contitech FT330-29 546 Firestone W013587994
Air Lift Bellows Convoluted Air Spring Contitech FT330-29 546/Firestone W013587994
Quack Detail
| Item | Air Spring | Model | W01-358-7994 |
| Condition | Brand new | Warranty | 1 Year |
| Trade Term | FOB,CNF,EXW | Packing | Carton |
| Delivery | 2-8working days | Material | Rubber+Steel |
| Payment | TT,LC,Western Union | MOQ | 1 PC |
Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1pcsX3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 140 mm
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF
❸ Cover Plate
Top Cover Plate Diameter: 231 mm
Bottom Cover Plate Diameter: 231 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter :300 mm
The Working Stroke : MAX 460 mm to MIN 130 mm
Maximum Height : 460 mm
Minimum Height :130 mmx
Compression Height : 330 mm
❺ Bumper block / Buffer block
With Bumper Block Or Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
Cross Information
Firestone W01-358-7994
Contitech FT 330-29 546 / 64572
Goodyear 3B12-328
Triangle 4546/6364
Watson&chalin AS-0019-F
Euolid/meritor After market E-FS7994

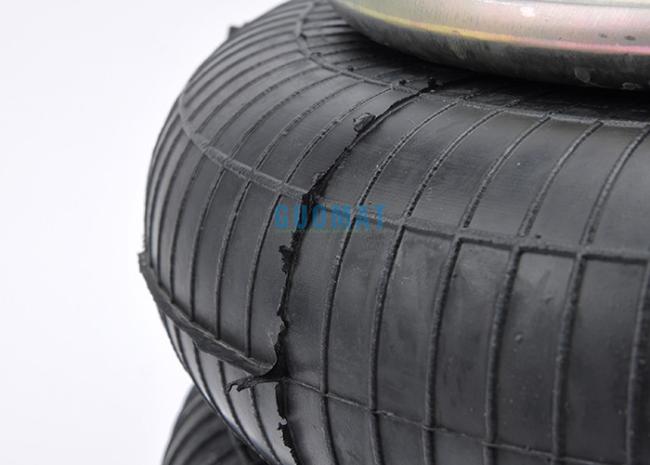

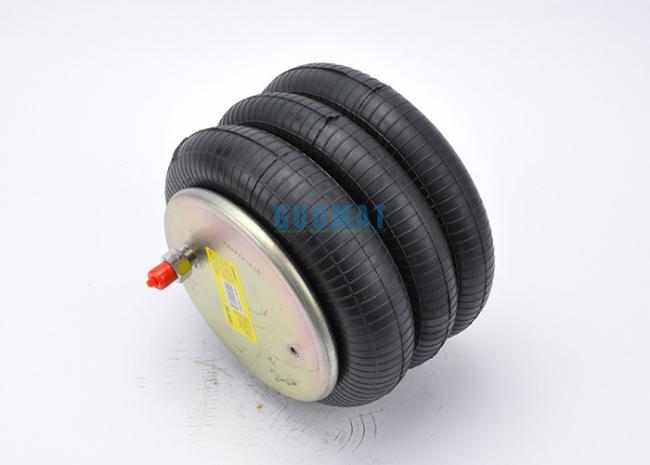

GUOMAT Product Picture
