Triple Convoluted Suspension Air Spring W01-358-7995/38 3B12-329 Air Bags
Triple Convoluted Air Spring/Air suspension W01-358-7995/38 3B12-329 Air Bags
Product Description
| Part Number | 3B12-329 |
|
OEM Number |
Firestone W01-358-7995/38 |
| Contitech FT 330-29 547/64573 | |
| Goodyear 3B12-329 | |
| Triangle 4757/4703 | |
| Watson&Chalin AS-0048-1F | |
| Euclid/Meritor After market E-FS7995 | |
| Working temperature | -40°C bis +70°C |
| Failure testing | ≥3 millions |
| Top Cover Plate Diameter | 231mm |
| Bottom Cover Plate Diameter | 231mm |
| Gas Hole / Air inlet | 1/4NPTF |
| Rubber Bellows MAX Diameter | 330mm |
| The Working Stroke | MAX 460 mm to MIN 130 mm |
Note:Cross references are not a guarantee that the part will fit any specific application.Check all information available before relying on a cross reference to make a purchase.
Air Spring Production Process
| NO. |
Production Process
|
| 1 |
Equipment operators need to know the operating status of the equipment.( Including: whether the rubber air spring is normal; the time and result of checking the cleanliness of the hydraulic oil; the cleaning and replacement of the filter element; whether the hydraulic components have been adjusted before the failure; whether the seals have been replaced; Phenomenon; what faults have occurred in the system in the past, how to eliminate them, etc.)
|
| 2 |
Observe whether there are problems with system pressure, speed, oil volume, leakage, vibration, etc.
|
| 3 |
Listen to the rubber air spring, such as impact sound, pump noise and abnormal sound, to judge whether it is normal.
|
| 4 |
Touch the temperature rise, vibration, crawling and tightness of the connection to judge whether the rubber air spring of the moving part is normal.
|
Goodyear Air Springs
Manufacturer:Goodyear
Manufacturer P/N:3B12-329

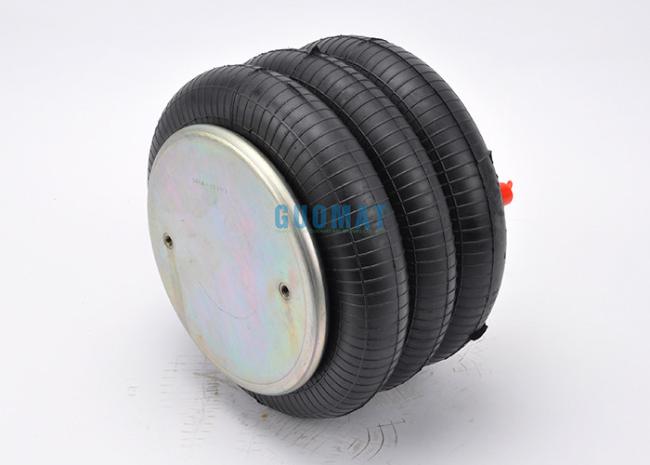

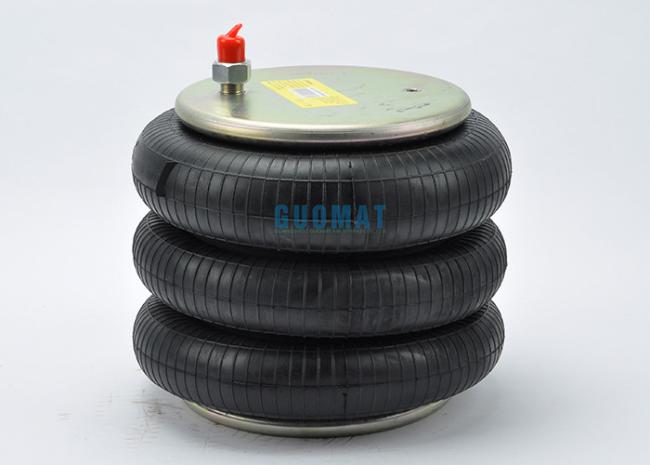

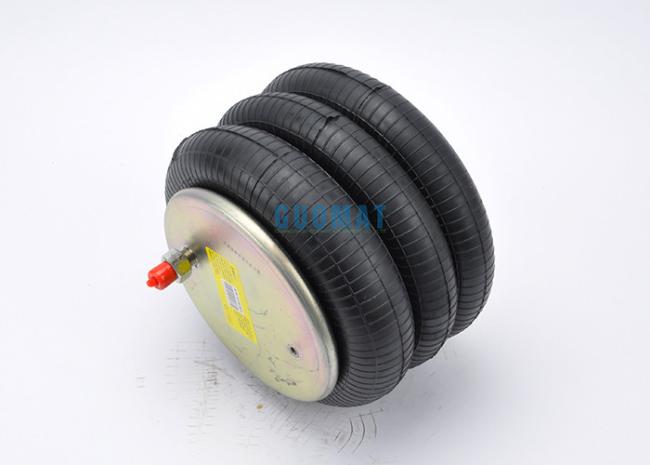

This is a bellows style Goodyear air spring. The bellows air springs have one, two, or three convolutions in the flexible member. This triple convoluted air bag is typically found on lift springs or axles for trucks and trailers, as an air ride spring, and also as an actuator or insulator on industrial and commercial applications. The specifications will vary on your 3B12-329, but triple convoluted Goodyear bags are found in crimped design as well as sleeve type bellows. They will offer similar characteristics and functionality but the sleeve type has the end retainers permanently attached by pinching the flexmember between the end retainers and external crimp rings.
SUPER-CUSHION AIR SPRINGS FOR TRUCKS, TRAILERS, AND BUSES
Super-Cushion air springs for trucks, trailers buses, and cab & seat springs protect cargo, provide constant-level hauling, and deliver long, trouble-free service. Super-Cushion air springs give your trucks, trailers and buses a new high in productivity and long life. They offer a quiet, cushioned ride. Truck, trailer and bus bodies last longer than with steel springs because there is less vibration. The driver rides in greater comfort, becomes less fatigued and stays more alert. Plus cargo has better protection from shock and vibration. Whenever you want to add an axle, Super-Cushion air springs fit right in. Super-Cushion air springs, when used with leveling valves, also maintain consistent trim regardless of the load. That means clearance heights remain constant,and that trailer floors are flush with loading dock floors for ease of loading and unloading. For driver comfort, load cushioning, and long life for your trucks, trailers, bus, and cab and seat springs specify Goodyear Engineered Products Super-Cushion air springs.
Product Images
