Goodyear 3B12-300 Convoluted Air Bag Firestone W01-358-8008 Suspension Kits

Convoluted Air Bag – Goodyear 3B12-300, Firestone W01-358-8008 Suspension Kits

PRODUCT DETAILS

Manufacturer: Goodyear
Brand name: Goodyear

Product weight: 7.5 kilograms
Package size: 33 x 33 x 22 cm
Model: 3B12-300

3B12-300 GOODYEAR TECHNICAL PARAMETERS:

♦NUT/BLIND NUT

Top plate screw (nut) tooth: 1 X 3 / 8-16UNC
Top plate screw (nut) tooth: 1 X stud-3/4-16
The screw center distance of the top cover plate: 140 mm
Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
The screw center distance of the bottom cover plate: 157.5 mm

♦AIR HOLE/AIRINLET/AIR FITTING
Air hole/air inlet: 1 / 4-18NPTF
The screw center distance between the air hole and the nut: 73 mm

♦COVER
Top plate diameter: 228.6 mm
Diameter of bottom cover: 228.6 mm

♦BELL RUBBER BELLOWS
Maximum diameter of rubber bellows: 330 mm
Natural diameter of rubber bellows: 300 mm
Working stroke: minimum 120 mm to maximum 457 mm
Maximum height: 457 mm
Minimum height: 120 mm
Stroke height: 179mm

♦BUMPERr BLOCK/BUNPER BLOCK
No bumper

♦BELT LOOP/BELT LOOP
Attached belt: a belt

COMMON APPLICATIONS FOR FIRESYTONE AIR BAGS
Firestone Airide springs make big differences on heavy duty trucks and trailers in many ways.

Primary Trailer Suspension Air Springs provide outstanding cargo protection while reducing maintenance problems caused by road shock and 'trailer hop' when empty. Trailers last longer and can be used to haul a wider variety of cargo, reducing expensive empty trailer miles.

Lift Axle Air Springs allow you to lift the axle without ever leaving the cab. Saves tire wear under empty or partial load conditions and lets you negotiate tight corners with spread tandems.

Drive Axle Air Springs substantially improve the ride and handling of the tractor, resulting in greater driver comfort and safety, less tractor maintenance, longer tire wear and higher trade-in value. They require little maintenance and last more than twice as long as steel springs.

Front Axle Air Springs significantly improve steering and handling while improving tire wear and reducing problems caused by cab vibration.

Cab Mount Air Springs eliminate most problems experienced with standard cab mounts and help reduce damaging cab vibration.

Seat Air Springs increase driver comfort and help alleviate hazardous driver fatigue.

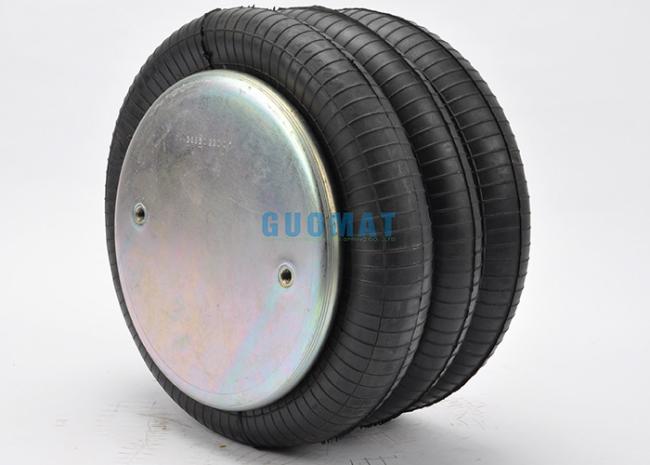

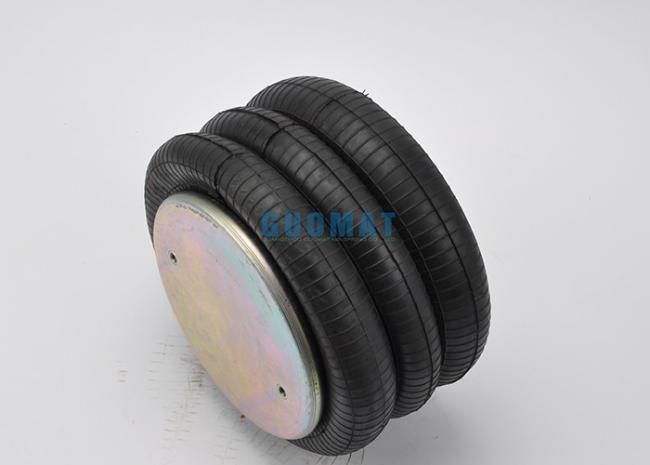

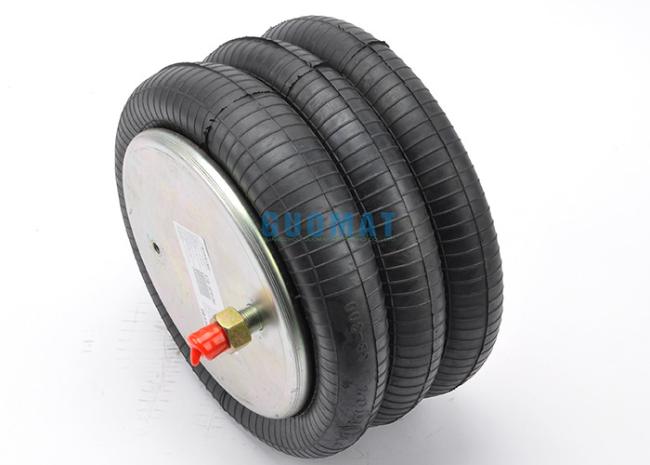

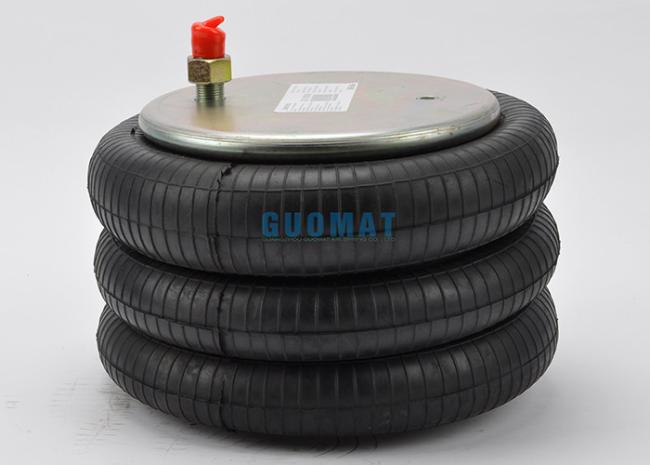

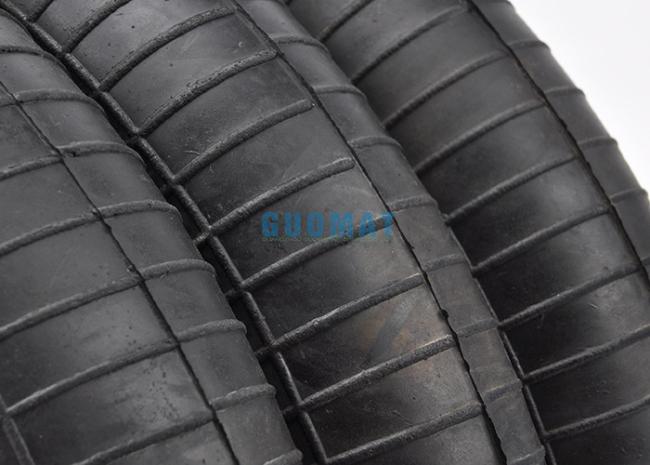

Product Image
