Connect Air Springs Bag Replaces W01-358-6905/2B9-206/ FD200-19315/Universal Pickup Truck Air Bag
Connect Air Springs Bag Replaces W01-358-6905/2B9-206/ FD200-19315/Universal Pickup Truck Air Bag
Product Information
| Product Name | Air Suspension Kit |
| Working Temperature | -40℃ bis +70℃ |
|
Refer Numbers |
Firestone:W01-358-6905 |
| Contitech:FD200-19 315 | |
| Goodyear:2B9-206 | |
| Taurus:KF218-6905 | |
| Hendrickson:S3518/S5270 | |
| Ridewell:1003586905C | |
| EZ Ride:8030120 | |
| Watson&Chalin:AS-0020 | |
| Failure Testing | ≥3 millions |
|
Technical data |
Top Cover Plate Diameter:160mm |
| Bottom Cover Plate Diameter:160mm | |
| Gas Hole / Air inlet:1/4NPTF | |
| Rubber Bellows MAX Diameter:251.5mm | |
| The Working Stroke:MAX 274 mm to MIN 95 mm | |
| Top Cover Plate Screw (Nut) Tooth:2X1/2-13UNC | |
| Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Screw Center Distance of Top Cover Plate:89mm | |
| Screw Center Distance of Bottom Cover Plate:89mm | |
| Screw And Gas Hole Distance of Top Cover Plate:44.5mm | |
|
Notice |
These air suspension bags are aftermarket ones.They will replace the original air spring bags. -Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts. -Instruction isn’t included.Professional installation is recommended. -Contact us please for whatever we can help |
Air bag is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities.
As the air pressure increases,the air spring can support more load while the spring rate increases.The larger the air spring,the greater the maximum loat it can support.
Features:
* Features with heavy duty double convoluted crimped design which allows safe and comfortable load capacity up to 2500 pounds.
* Built to strict quality control standards.
* Designed for Comfort Suspension.
* Bring better handling and ride comfort.
Advantages
1.Excellent materials
2.Effective shock
3.In situ installation
4.Comfortable and stable
5.Long life
6.Slove the abnormal noise

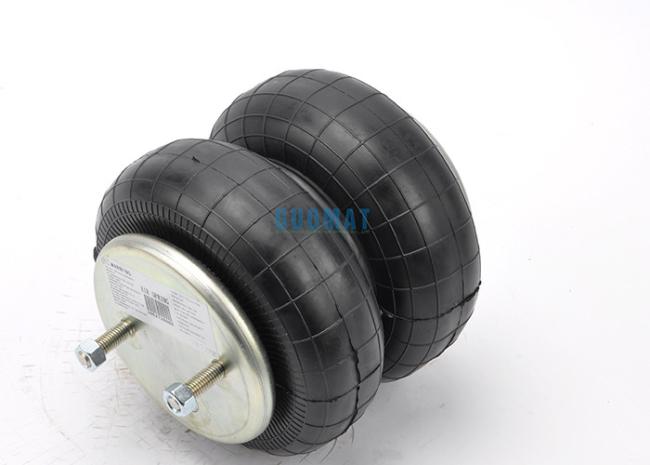

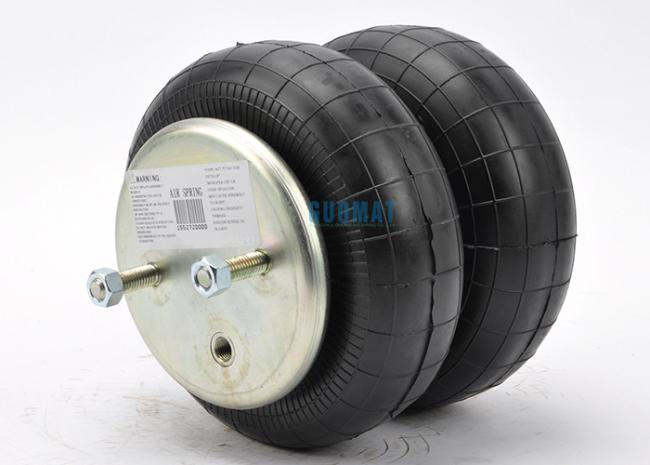

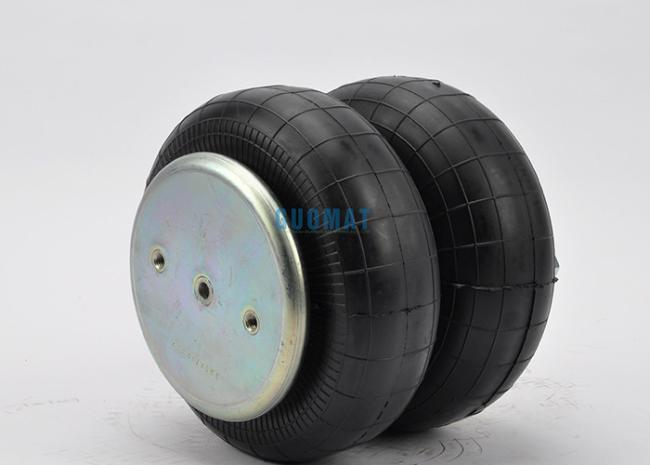

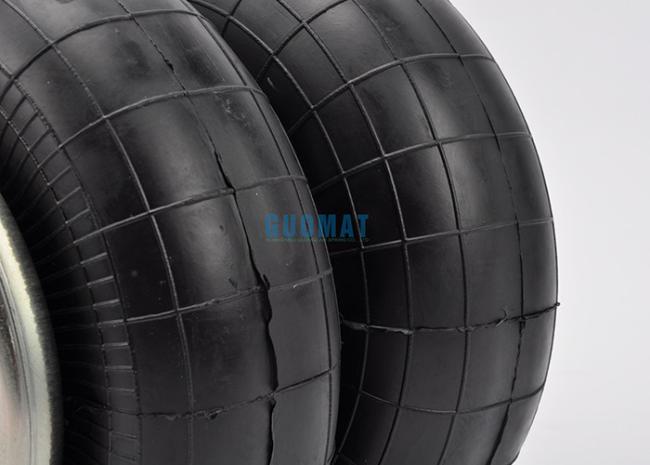

Product Image
