Firestone W01-358-6926 Industrial Air Spring Contitech FD200-19504 Industrial Convoluted Air Bag
Firestone W01-358-6926 Air Spring /Contitech FD200-19504 Industrial Convoluted Air Bag
Product Information
Type:Air Spring
Part Number: 2B5249
Warranty:12 Months
Color:Black
Place of Origin:Guangzhou,China
Certification:ISO/TS16949:2009
Material:Rubber+Steel
MOQ:1 Pcs
Working temperature:-40°C bis +70°C
Failure testing:≥3 millions
Quality:High-Quality
Packing:Neutral Packing
Cross Reference
Firestone:W01-358-6926,W013586926
Contitech:FD 200-19 504,161299
Triangle : 6325/4504
Original Parts
RR Load : LS20
Firestone W01-358-6926 Air Spring Technical Data
| Cover Plate | Top Cover Plate Diameter:160mm |
| Bottom Cover Plate Diameter:160mm | |
| Air Inlet | 1/4 NPTF |
| Blind Nut | Screw Center Distance Of Top Cover Plate:89mm |
| Screw Center Distance Of Bottom Cover Plate:89mm | |
| Screw And Gas Hole Diameter Of Top Cover Plate:38mm | |
| Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Rubber Bellow | Rubber Bellow Natural Diameter:224mm |
| Rubber Bellow MAX Diameter:251mm | |
| The Working Stroke:MAX 274mm to MIN 95mm | |
| Maximum Height:274mm | |
| Minimum Height:95mm | |
| Compression Height:179mm |
We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.
Specification
| Long lasting service on almost all tryck and trailer air suspension. |
| Absorb road shock to help tractors and rigs last longer. |
| Cut down on vibration and driver fatigue. |
| Long trouble free service,constant leve; hauling,quite cushioned ride. |
Our advantages
| 1.A wide range of products |
| 2.Accept OEM order |
| 3.Affordable, safe and efficient logistics services |
| 4.Flexible payment |
| 5.Guaranteed warranty |
Our services
| 1.Reply your inquiry in 24 working hours |
| 2.OEM |
| 3.Exclusive and unique solution can be provide to our customer by our well-trained and professional engineers and staffs |
| 4.Timely delivery |
| 5.Good after-sale service |
| 6.Factory price |

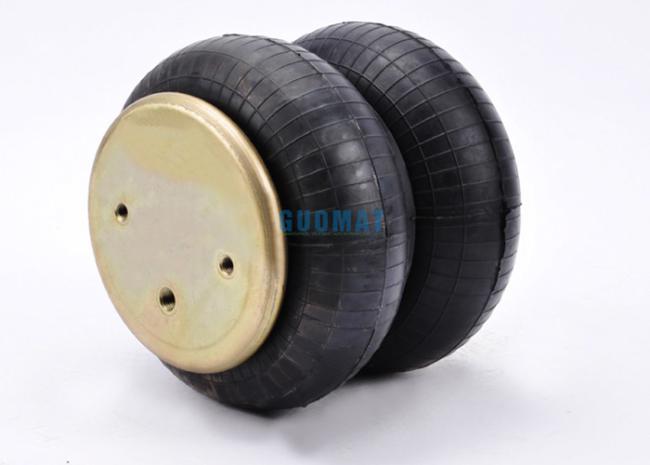

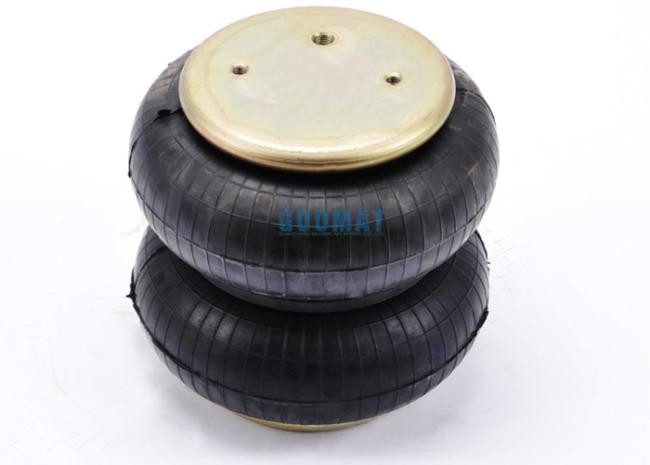

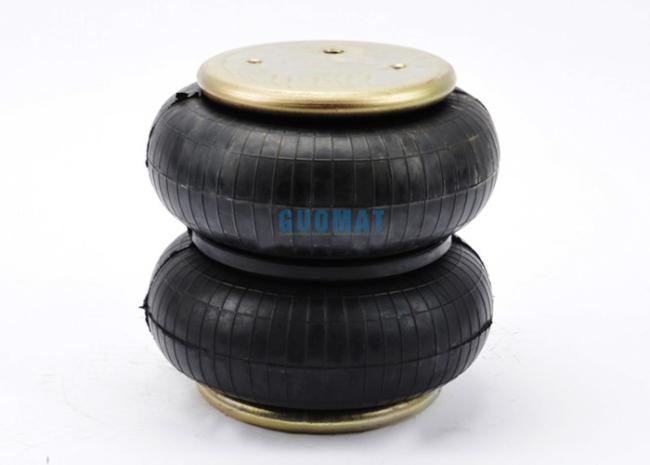

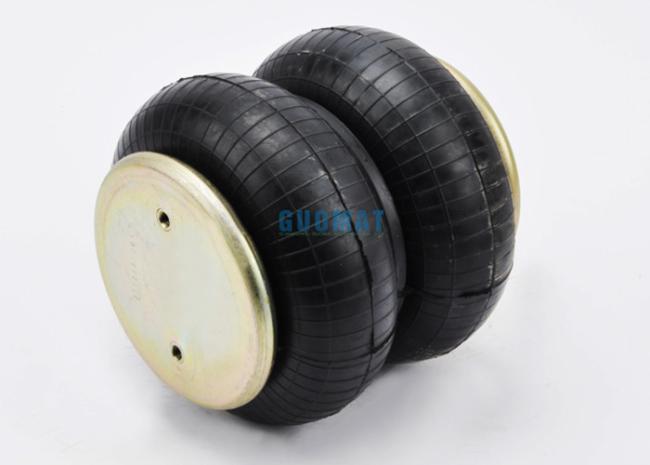

Product Image
