W01-358-7405 Industrial Air Spring Double Convolute Bellow Type Firestone
Firestone Airide Replacement Airbag W01-358-7405 Double Convolute Bellow Type Air Spring
| Description | |
| Item | Air Spring/Shock Absorber Spring/Air Bellows |
| Brand | Guomat/Neutral |
| Model Number | W01-358-7405 |
| Material | Rubber And Steel |
| Warranty | 1 Year |
| MOQ | 1 PCS If We Have Stock |
| Package |
(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package |
| Delivery Time | 2-8 Working Days |
| Payment | T/T, L/C, PayPal, Western Union |
| After Service | (1) Examination Before Shipment (2) Follow Up The Customers' Feedback |
| Main products we sell | Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump |
| Technical Data |
| Top Cover Plate Diameter:231mm |
| Bottom Cover Plate Diameter:231mm |
| Air Inlet/Gas Hole:1/4-18NPTF |
|
Top Cover Plate Screw (Nut) Tooth With Air Inlet:3/4-16UNF |
| Top Cover Plate Screw(Nut) Tooth:1/2-13UNC |
| Bottom Cover Plate Screw(Nut) Tooth:2XM10X1.5 |
|
Screw And Gas Hole Diameter Of Top Cover Plate:140mm |
|
Screw Center Distance Of Bottom Cover Plate:157mm |
|
Rubber Bellow MAX Diameter:325mm max.OD |
| The Working Stroke:MAX 305mm to MIN 81mm |
|
Maximum Height:305mm |
|
Minimum Height:81mm |
|
Compression Height:224mm |
Airspring Supplier:Goodyear
Reference:578923309
Competitor/Supplier Number:2B12313
Airspring Supplier:Goodyear
Competitor/Supplier Number:2B12459
Airspring Supplier:Triangle
Reference:6316
Competitor/Supplier Number:4364
Airspring Supplier:arvin Meritor
Competitor/Supplier Number:200981
Airspring Supplier:Dayton Parts
Competitor/Supplier Number:3547405
Airspring Supplier:Hutchens
Competitor/Supplier Number:H1038401
Airspring Supplier:Leland
Competitor/Supplier Number:SC2073
Airspring Supplier:Navistar
Competitor/Supplier Number:1685177C1
Airspring Supplier:SAF Holland
Competitor/Supplier Number:57007405
Suspension Supplier:Suspension Inc.
Firestone Trimmed:W01-358-7405
Advantages
> Long service life
> Maintenance-free
> Highly operational safety
> Frictionless
> Lateral misalignment possible
> Chemical resistance
Low installation height
In comparison to conventional pneumatic cylinders, ContiTech air actuators contain no piston rod, making it possible to reduce
the design height considerably.This allows compact constructions to be made.
Angular movement
Depending on the type, ContiTech air actuators can be used for tilt angles up to 30°. This enables the designer to simplify the articulated construction.
Low purchase price
The purchasing costs are considerably less than for conventional pneumatic cylinders.And thanks to the long service life and freedom from maintenance,running costs are reduced as well.

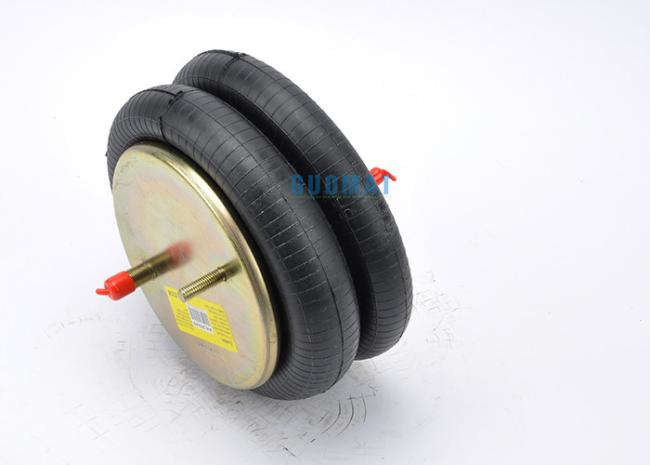

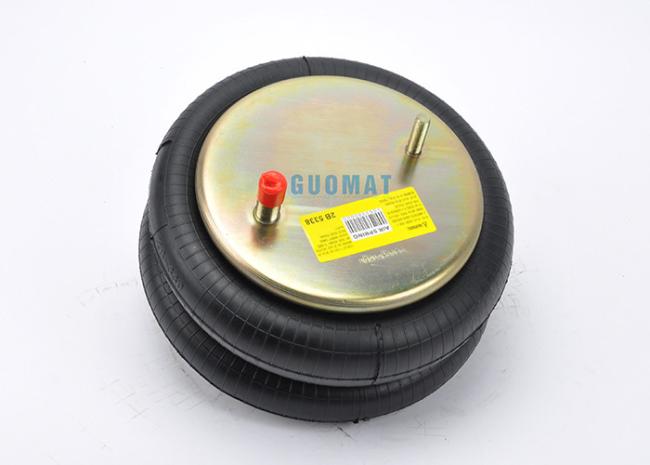

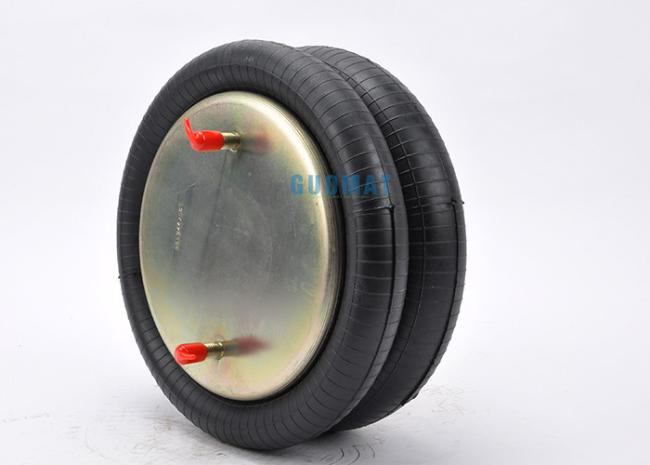

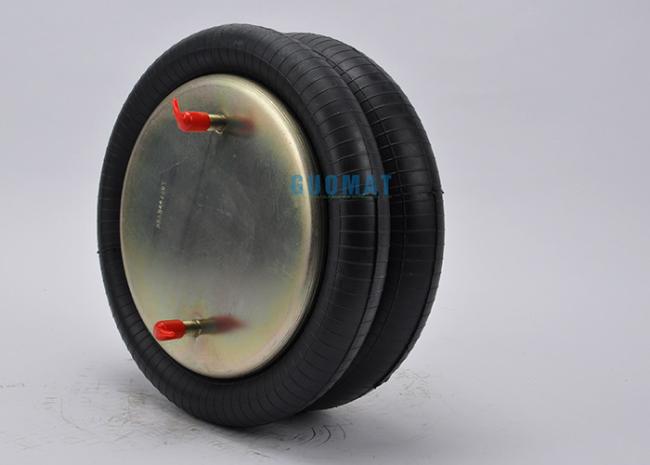

Product Image
FAQ
1. Are you a Manufacture factory?
Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 12years experience from 2008 years.
2. What is your main products?
Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.
3. Is the sample available?
Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
4. What is your warranty term?
Our company offer 1% free spare parts to FCL order.There is a 12months warranty for our export products has run out from the date of the shipment.If warranty ,our customer should pay for the replacement parts.
5. Can i use my own logo and design on products?
YES,OEM is welcomed.
6. I can not find out the items what i want from your website, can you offer the products i need?
YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
