231mm Plate Dia. Triple Convoluted Air Spring For Pick Up Lift
Air Spring Manufacture Triple Convoluted Air Spring Use For Pick Up/ Lift Air Spring
Product Information
Air Spring
- Manufacturing Since 2008
- OEM Quality And Service
- High Cost Performance
- One Year Limitrd Warranty
Triple Convoluted Air Spring Technical Data

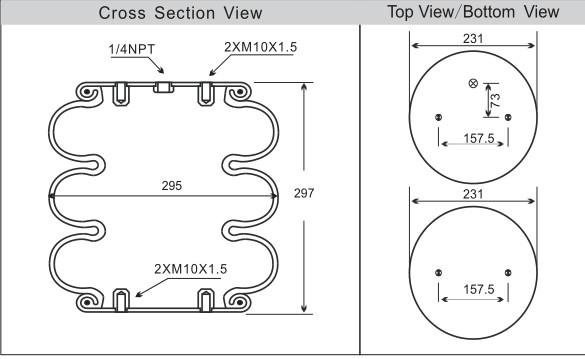

The specific data of air spring is shown in the drawing.
Please compare the parameters with those of the customers who need to purchase,so as to confirm the model.
Product Details
Better Plate
Thicker Bead,Better Durability And Strength Cr3+ White Zinc Electroplating Coating,LOng Lasting Corrosion Resistance(240h).
Higher Safety Bellow
Specially Formulated NR Rubber Compound For Enhanced Ozone And Temperature Resistance,Burst Pressure 300+Psi,Fatigue 3 Million + Times.
Security
It Is Fully Tested To Ensure A Proper Fit And Performance.
Hot Selling Air Spring
| FOR SCANIA TRUCK | FOR VOL-VO TRUCK |
| FOR DAF TRUCK | FOR BPW TRUCK |
| FOR HENDRICKSON TRUCK | FOR SAF TRUCK |
| FOR FREIGHTLINER TRUCK | FOR MERCEDES-BNEZ TRUCK |
| FOR MAN TRUCK | FOR MERITOR TRUCK |
GUOMAT Other Related Product
| Contitech | Goodyear | Firestone | Phoenix |
| 928N | 8042 | W01-095-0228 | 2E23A |
| 943N | 9001 | W01-095-0189 | |
| 973N | 8012 | W01-095-0198 | 1F21A |
| 945N | 9014 | W01-095-0063 | 1E21C |
| 975N | W01-095-0437 | 1E10 | |
| W01-095-0294 | |||
| W01-358-9391 | |||
| 4913NP02 | 1R14-753 | W01-095-0500 | 1D28H-16 |
| 1R14-869 | |||
| 4159NP06 | W01-M58-0736 | ||
| 810NTB | 1R14-713 | W01-M58-0749 | 1DK28A4 |
| 4022NP02 | 1R11-709 | W01-M58-0756 | |
| 4022NP02 | 1R11-709 | W01-M58-0756 | |
| 836MB | W01-M58-0775 | 1DF25-4 | |
| 836MB | 1R12-700 | W01-M58-0776 | 1DF25-1 |
| 836M2K1 | 1R12-711 | W01-M58-8721 | 1DF25-13 |
| 887M | 1R11-796 | W01-M58-0780 | |
| 889MK2 | W01-M58-0781 | ||
| W01-M58-0918 | |||
| 4004NP02 | W01-M58-0919 | ||
| 4004NP02 | W01-M58-0919 | ||
| 6603NP02 | |||
| 4183NP23 | |||
| 4883N1P07 | |||
| 6609NP01 |

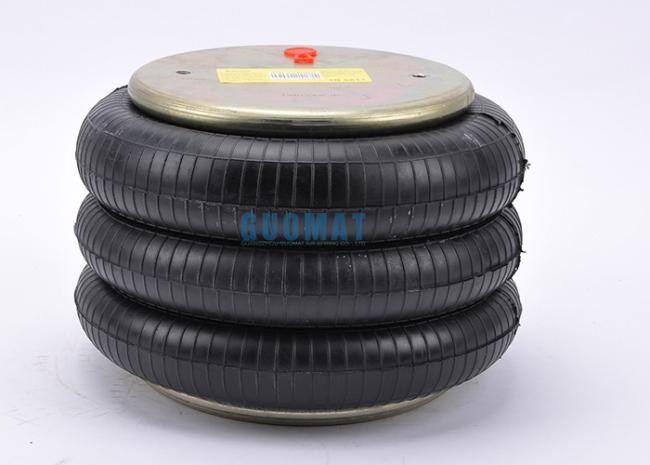

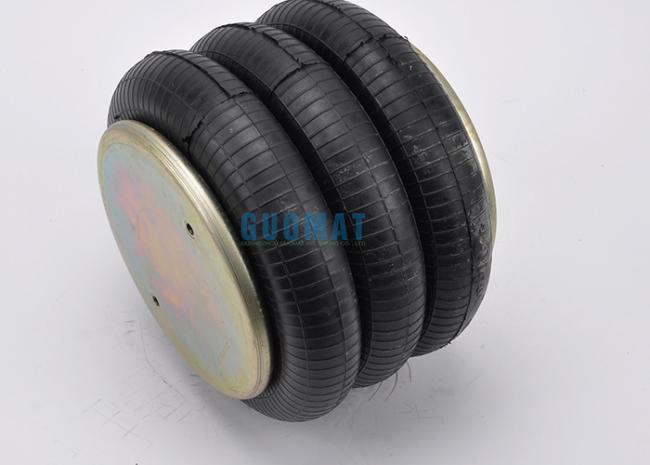

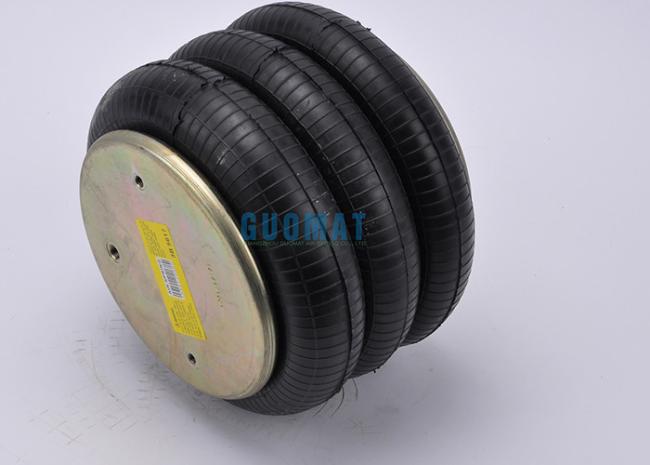

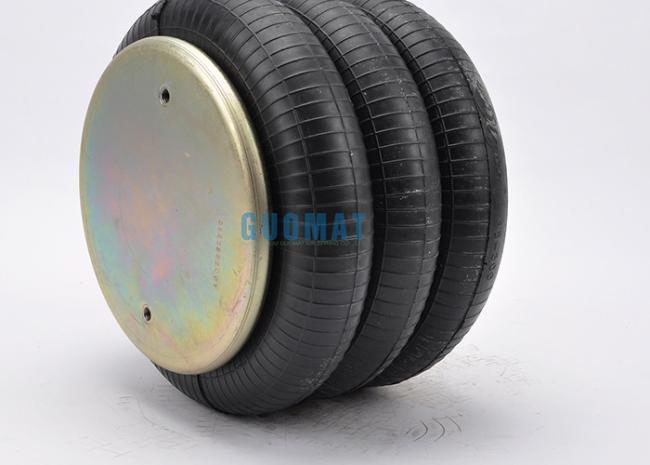

Product Picture
