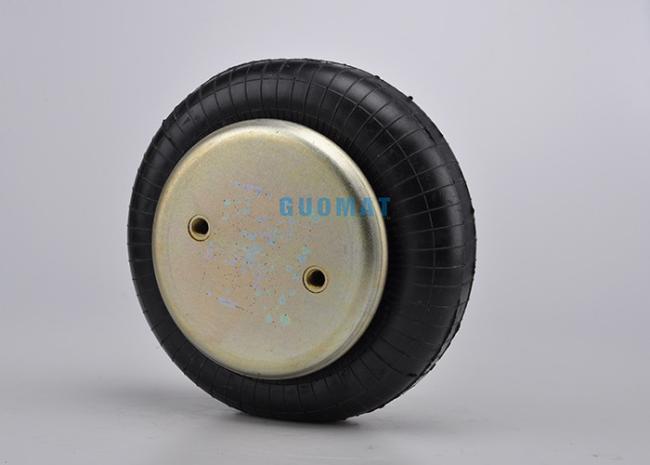

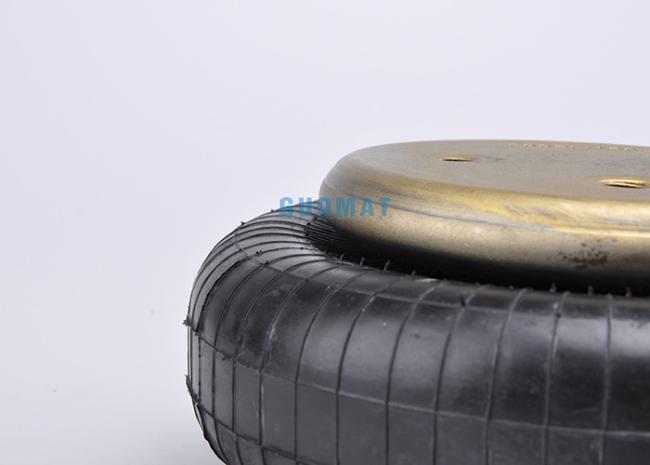

Single Convoluted Suspension Air Spring Goodyear 1B8-550 For Industrial Equipment
Single Convoluted Suspension Air Spring Goodyear 1B8-550 For Industrial Equipment
Product Details
Type:Single Convoluted Air Suspension Airbag
Model Number:1B8X550
Cross Number:Goodyear 1B8X550
Condition:Brand New
Material:Rubber + Steel
Warranty:12 Months
Delivery Time : About 2 - 8 working days after receiving your payment
Goodyear 1B8X550 Airbag Parameter
| Cover Plate | Top Cover Plate Diameter:135mm |
| Bottom Cover Plate Diameter:135mm | |
| Air Inlet | 1/4-18NPT |
| Blind Nut | Screw Center Distance Of Top Cover Plate:70mm |
| Screw Center Distance Of Bottom Cover Plate:70mm | |
| Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Rubber Bellow | Rubber Bellow MAX Diameter:220mm |
| The Working Stroke:109mm |
Deflection(Height min):50mm
Deflection(Height max):140mm
Working stroke:90mm
Measurement d max:230mm
Applications
Various applications for the vehicle industry such as steering damping, engine vibration damping, belt tensioning damping for engines and on driver seats in commercial vehicles, etc.
- On household products such as washing machines
- Special shock absorbers for bicycles
- On commercial lawn movers
- In the medical equipment industry ie. on wheelchairs
