S-160-2 Gas Filled Type Double Convoluted Air Lift Bag Natural Rubber Bellows Air Spring
S-160-2 Gas Filled Type Double Convoluted Air Lift bag Natural Rubber Bellows Air Spring
Product Description
Type Name:Punching Air Spring
Model Number:F-160-2
Marranty:12 Months
MOQ:1 PCS
Color:Black
Place Of Origin:Guangzhou,China
Certification:ISO/TS16949:2009
Material:Natural Rubber
Packing:Neutral Packing
Quality:Hight - Quality
Application:Punching Machine
Technical Data Purchase Order Data For F-160-2 Air Spring
| Height H (mm) | Design Height (mm) | 98 |
| Max Height (mm) | 148 | |
| Min Height (mm) | 53 | |
| Commom Maximum Travel (mm) |
Commom Maximum Travel (mm) |
±35 |
| Copression Max Outside Diameter (mm) |
Copression Max Outside Diameter (mm) |
220 |
| Standard Height,Approximate Value When The Internal Pressure is 1.49Mpa | Effective Area (cm2) | 200 |
| Volume (L) | 2.1 | |
| Load (KN) | 9.8 | |
| Dynamic Spring Constant (n/mm) | 255 | |
| Natural Vibration Frequency (Hz) | 2.5 | |
| Maximum Internal Pressure (Mpa) |
Maximum Internal Pressure (Mpa) | 0.88 |
| Internal Pressure Failure (Mpa) |
Internal Pressure Failure (Mpa) | 2.9-3.9 |
Industrial Air Spring
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.
Why Choose Us
- Convenient and efficient service
- Professional sales team
- OEM
- Customized service
- Professional technical support
- 24 Hours onlineservice
- Competitive price
- Support small orders
High-Quality
More than 12 years of technical research & development,we are specialized in truck air spring and accessories products wholesale manufacyurer.
Our Service
Set up a specialized team of modern logistics in order to serve for global customers, we are optimized to try to provide high-efficient and the shortest delivery time to our customers.

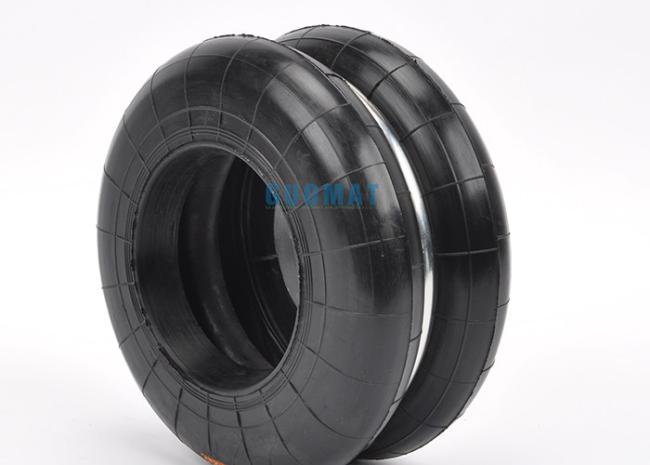

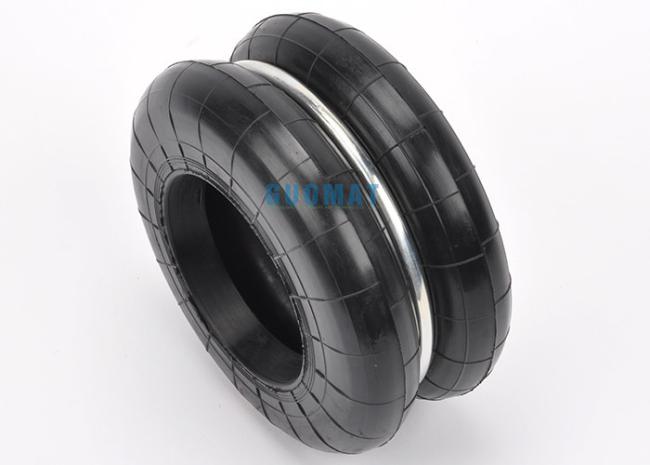

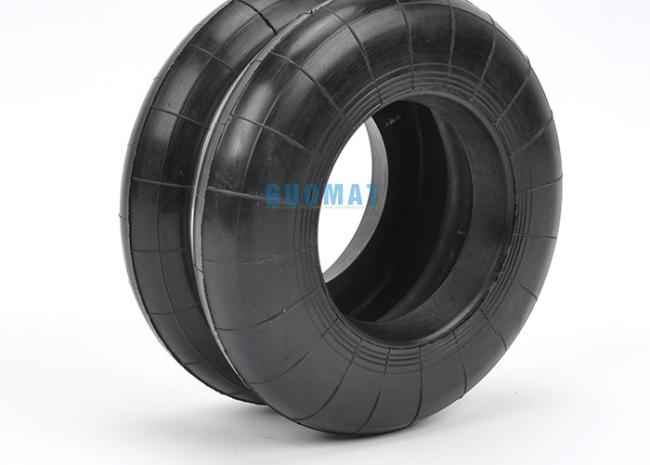

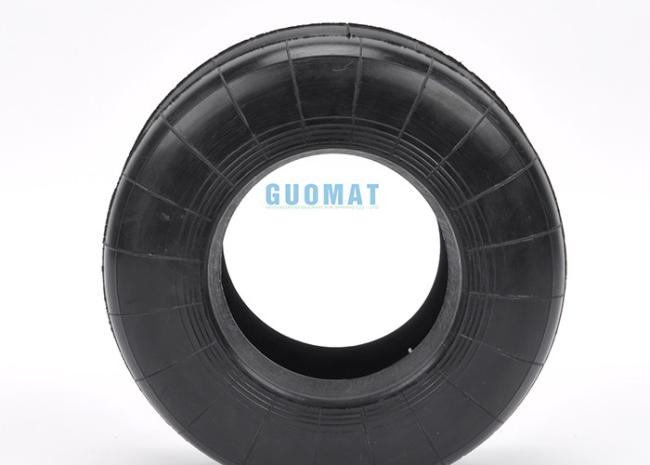

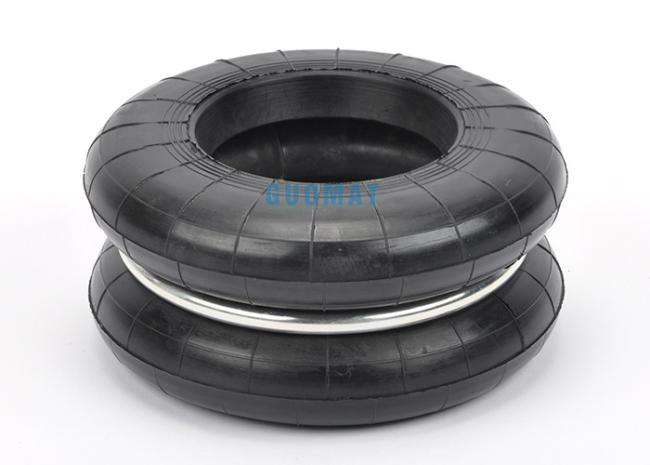

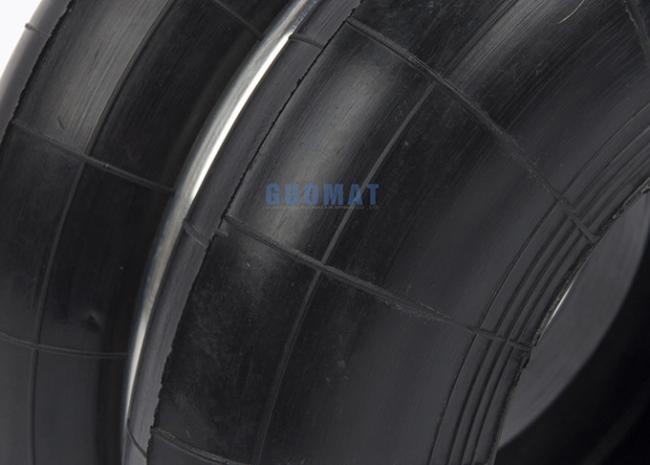

Product Image
