Universal 10x3 Air Lift Bag Industrial Air Spring Triple Convoluted Bellows Air Suspension Spring
Universal 10x3 Air Lift Bag Industrial Triple Convoluted Bellows Air Suspension Spring
Product Data Information
| Model | Path | 0.7Mpa Max | Capacity | 0.7Mpa Frequency | Trip | Weight | |||
| 0.2Mpa | 0.5Mpa | 0.7Mpa | Minimum height | Safe height | |||||
| 10X3 | 270 | 118 | 400 | 7.25 | |||||
| Effective Diameter | Φ200 | Connection Method | CY Series |
| Compressed height | 118mm | ||
| Maximum Height | 400mm | ||
| Full Stroke | 282mm | ||
| Working medium | Water,Air | ||
| Working pressure | ≤0.7Mpa | ||
| Burst pressure | ≥1.6Mpa | ||
| Endurance cycle | ≥106 | ||
| Temperature | -35℃~+60℃ | ||
| Weight of the parts:-------------------------------------------------------------------------7.25KG | |||
|
Showed is supply status. The dismountable end cap will be sealed after connected flange |
|||

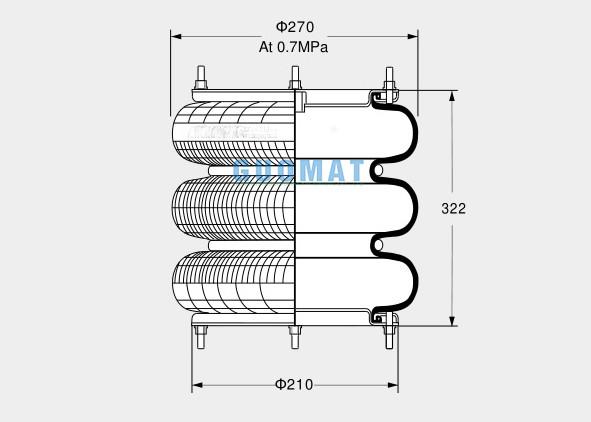

The Following Is The Detailed Drawing Data Of 10x3
We Aliso Supply Many Other Types Air Suspension Shock Absorber
A6/C5:4Z7616051D,4Z7413031A,4Z7616051B,4Z7698509,4Z7616051,4Z7413031
4Z7616052A,4Z7513031A,4Z7513031,4Z7616019A
A6/C6:4F0616039,4F0616039S,4F0616039R,4F0616039T,4F0616039AA
A8/S8:4E0616039,4E0616039AF,4E0616039AG,4E0616039AK,4E4616039D,4E0616039AA,4E0616039AC,4E0616039AE,4E0616039AJ
4E0616039S
Q7:7L8616039D,7L8413031U,7L5616406E,7L6616403B,7L8616403B,7L86160040D,7L8413032H
X5 E53:37116761444,37116757502,37116761443,37116757501,37116761444,37116757502
E70/X5 E71/X6:37126790078,37126790081,37126790082,37126790083,37126774041,37126783419,37126783420,37126773664
E65/E66:37126785538,37106778800,37106767864,37126758574
W220:A2203205013,A2203202338,A2203207813,A2203207913,A2203200438,A2203204913,A2203208413,A2203208613
A2203208313,A2203200338,A2203205713,A2203208513
W221:A2213204913,A2213209313,A2213200038,A2213209813,A2213205113,A2213205213,A2213207313,A2213207413,A2213209713
Who Are We
Guangzhou Guomat Air Spring Co.,Ltd. Our company is one of Chinese leading auto suspension parts supplierand we specialize in foreign trade for many years.We believe that you can rely on us as we provide you quite satisfactory service and products with best quality at most competitive price in the word.
Our Service
1.We can reply your inquiry in 24 working hours
2.Accept OEM and Sample
3.Exclusive and unique solution can be provide to pur customer by our well-trained and professional engineers and staffs.
4.Timely delivery
5.We have good after-sale service
6.Factory price available
Specification
Long lasting service for almost all tryck and trailer air suspensions.
Absorbs road shocks, helping tractors and drilling rigs last longer.
Reduce vibration and driver fatigue.
Long trouble free service, constant water level; traction, fairly cushioned ride.

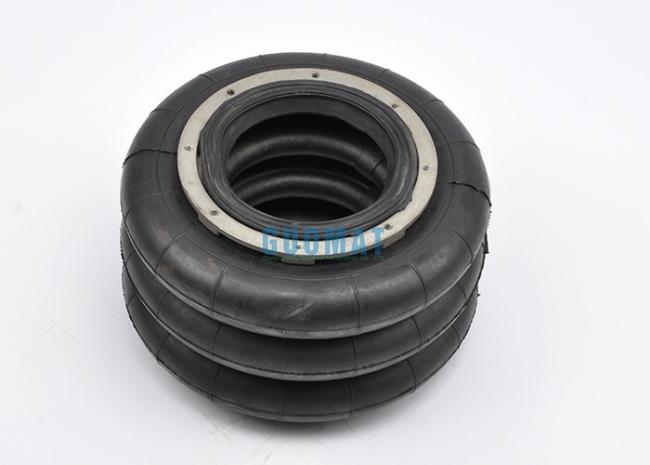

The Following Is The 10x3 Air Spring
