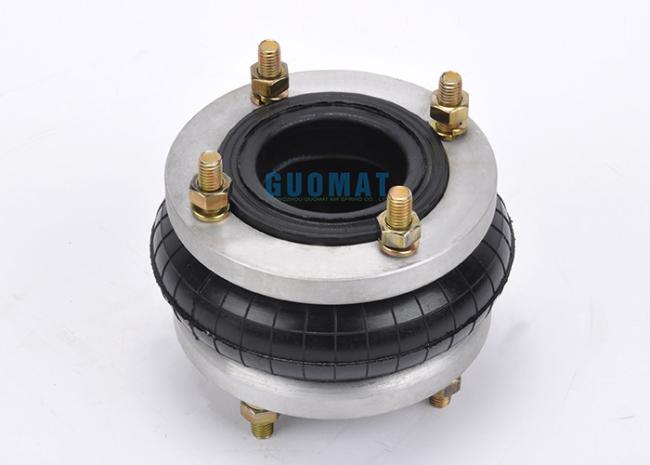

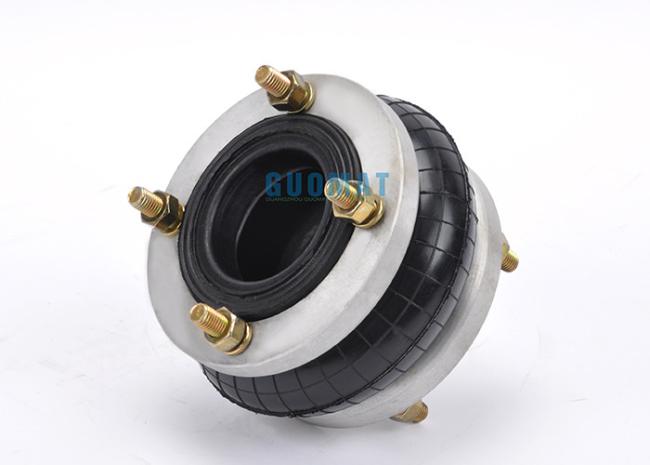

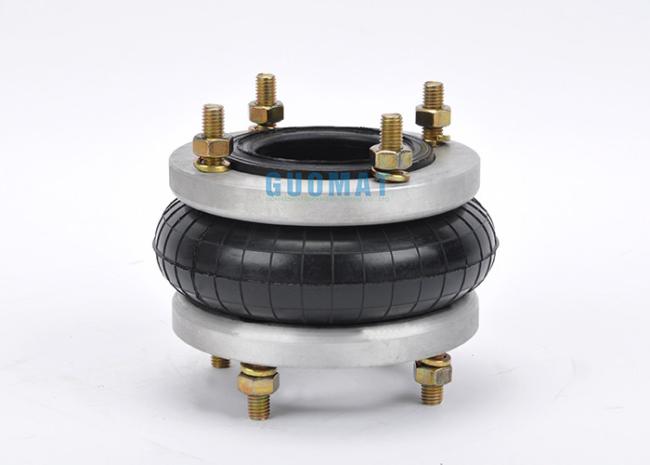

150076H-1 Industrial Air Spring With Flange 0.8Mpa Single Convoluted Air Suspension
150076H-1 Industrial Air Spring With Flange 0.8Mpa Single Convoluted Air Suspension
Product Details
150076H-1 Technical Detailed Data
Cover Plate
Top Cover Plate Diameter:133mm
Bottom Cover Plate Diameter:133mm
Gas Hole/Air Inlet/Air Hole
Gas Hole/Air Inlet /Air Hole:---
Rurrber Bellows
Rubber Bellows MAX Diameter:160mm
The Working Stroke:MAX 85 mm to MIN 46mm
Maximum Height:85mm
Minimum Height:46mm
Stroke Height:39mm

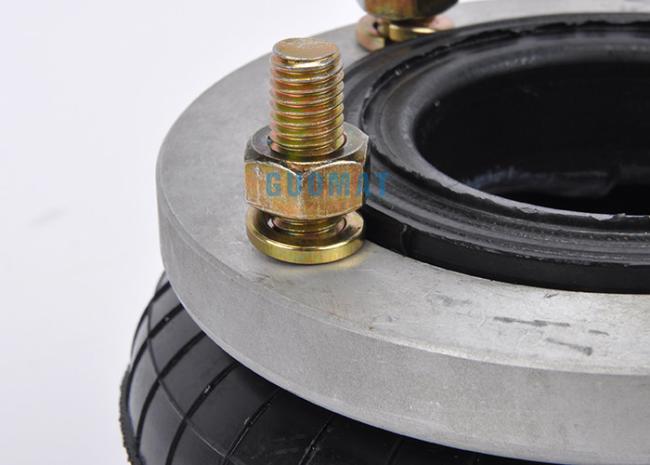

Blind Nut
Top Cover Plate Screw(Nut):4pcsxM10
Bottom Cover Plate Screw(Nut):4pcsxM10
Top Cover Plate Screw(Nut) Distance:109mm
Bottom Cover Plate Screw(Nut) Distance:109mm
150076H-1 Technical Parameters Table
|
Bearing Capacity |
Inflation Pressure | 0.2Mpa | 0.3Mpa | 0.4Mpa | 0.5Mpa | 0.6Mpa | |
| Installation Height | |||||||
| 45 | (mm) | 436 | 579 | 718 | 860 | 1008 | |
| 55 | (mm) | 299 | 428 | 570 | 700 | 830 | |
| 65 | (mm) | 226 | 335 | 451 | 565 | 670 | |
| 76 | (mm) | 164 | 258 | 344 | 435 | 526 | |
| 85 | (mm) | 122 | 190 | 254 | 330 | 399 | |
| 95 | (mm) | 58 | 94 | 133 | 174 | 220 | |
| Stiffness And Frequency At Design Height | Vertical Stiffness | (Kg/cm) | 107 | 150 | 187 | 231 | 265 |
| Natural frequency | Hz | 4.05 | 3.82 | 3.69 | 3.65 | 3.55 | |
| cpm | 243 | 229 | 221 | 219 | 213 | ||
|
Bearing Capacity |
Inflation Pressure | 0.7Mpa | 0.8Mpa |
0.7Mpa |
|
| Installation Height | |||||
| 45 | (mm) | 1155 | 1301 | 0.37 | |
| 55 | (mm) | 963 | 1088 | 0.46 | |
| 65 | (mm) | 782 | 906 | 0.57 | |
| 76 | (mm) | 621 | 720 | 0.67 | |
| 85 | (mm) | 475 | 544 | 0.75 | |
| 95 | (mm) | 263 | 308 | 0.87 | |
| Stiffness And Frequency At Design Height | Vertical Stiffness | (Kg/cm) | 303 | 319 | |
| Natural frequency | Hz | 3.50 | 3.33 | ||
| cpm | 210 | 199 | |||
About Air Spring With Flange
Flange connection Flange connection is to use a flange at both ends of the valve to connect with the flange on the pipeline by installing bolts on the pipeline. Flange connection is the most common form of valve connection.
