Double Convoluted Gas Suspension Air Spring 115mm Stroke Air Bellow For Industrial Equipment
115mm Stroke Air Bellow Double Convoluted Gas Suspension Air Spring For Industrial Equipment
Product Description
| Brand | GUOMAT/Neutral |
| Name | Air Spring/Air Bellow Suspension Spring |
| Model No. | 2BM31062 |
| Reference No. | M31062 |
| Color | Black |
| Delivery Time | 2-8 Working days |
| Certificate | ISO/TS16949:2009 |
| Size | Standard |
| MOQ | 1PCS |
GUOMAT Number:2BM31062
Reference Number:M31026 M/31026
Medium:Compressed Air
Operation:Single acting
Technical Details
Rubber Bellow Diameter :175mm
Top Cover Plate Diameter:153.5mm
Diameter Between Bolt(Stud) On Top:127mm
Bottom Cover Plate Diameter:153.5mm
Diameter Between Bolt(Stud) On Bottom:127mm
The Woring Stroke:75mm~190mm
Maximum Height:190mm
Minimum Height:75mm
Compressed Height:115mm
Bolt(Stud) On Top Cover Plate:4 PCS X M10
Bolt(Stud) On Bottom Cover Plate:4 PCS X M10
Bolt(Stud):M10=25Nm
Air Inlet/Gas Hole:G1/2=25Nm
Operating Pressure:0~8 bar
Operating Temperature:-40℃~70℃
2BM31062 Technical Parameters
| Minimum Pressure 0 bar |
| Minimum Altitude Restoration ≤180N |
| Weight(With Cover Plate) 2.6KG |
Vibration Isolation Applications - Dynamic Eigenvalues
Design Height H :155mm , Min 145mm
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ |
| Load ［KN］ | 2.7 | 3.7 | 4.7 | 5.7 | 6.7 | 7.8 | 2.0 |
| Stiffness ［N/cm］ | 650 | 830 | 1015 | 1185 | 1360 | 1530 | |
| Natural Frequency ［Hz］ | 2.5 | 2.4 | 2.3 | 2.3 | 2.3 | 2.2 |
Pneumatic Applications - Static Eigenvalues
Load ［KN］
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ | |
| Height H ［mm］ | 170 | 2.2 | 3.0 | 3.8 | 4.7 | 5.6 | 6.5 | 2.1 |
| 150 | 2.8 | 3.9 | 4.9 | 6.0 | 7.1 | 8.2 | 1.9 | |
| 130 | 3.5 | 4.7 | 5.9 | 7.1 | 8.4 | 9.7 | 1.7 | |
| 110 | 4.1 | 5.4 | 6.8 | 8.2 | 9.6 | 11.1 | 1.4 | |
| 90 | 4.7 | 6.3 | 7.9 | 9.5 | 11.1 | 12.8 | 1.1 | |
Characteristics of 2BM31062 Double Convoluted Air Spring
- Frictionless Operation
- Great Vibration Isolation Effect
- Ideal For Short Stroke,High Force Applications
- No Maintenance Or Lubrication Required
- Can be Easy Installation

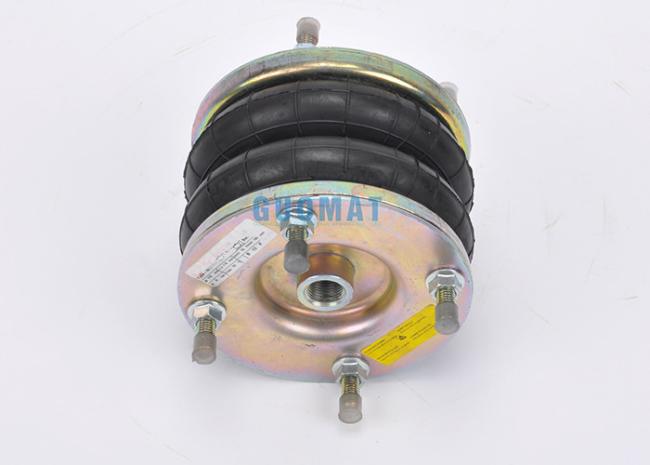

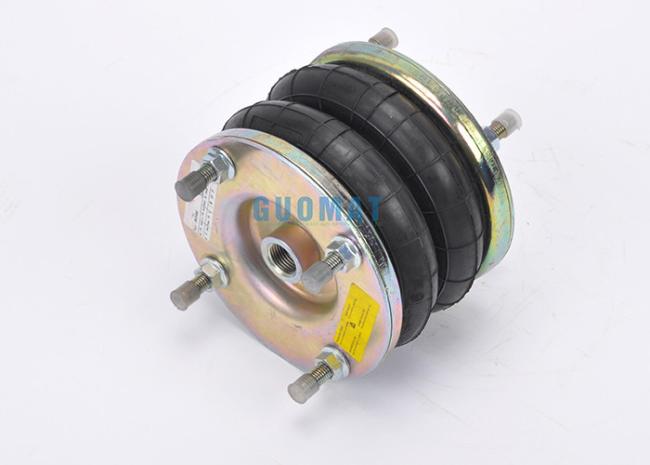

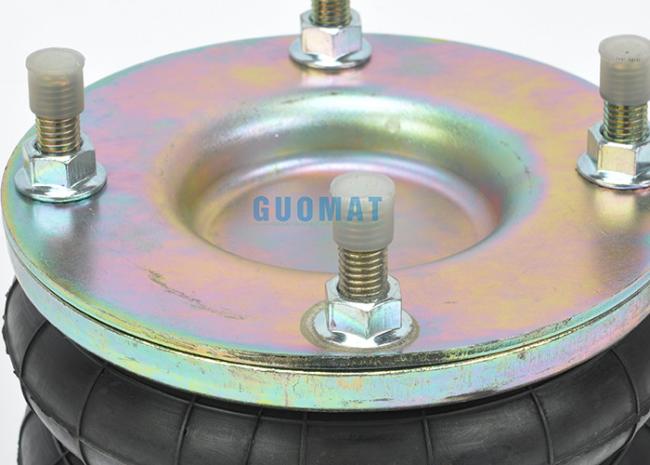

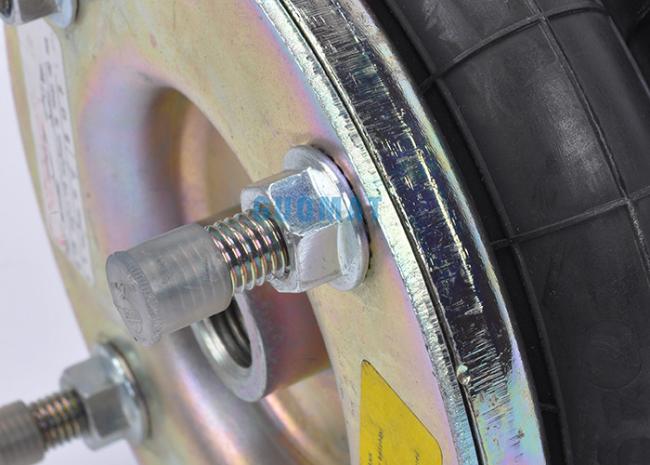

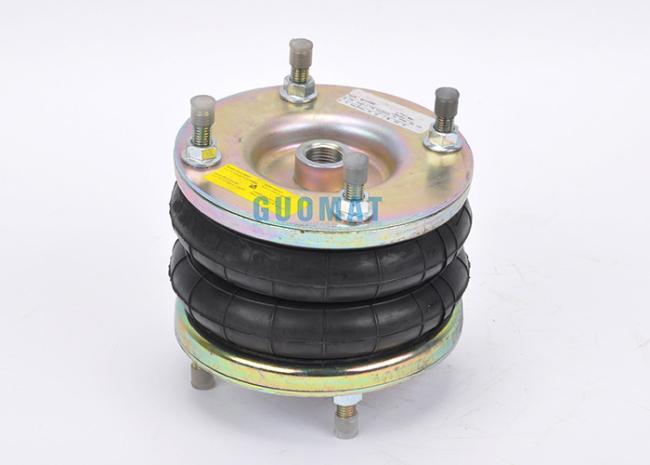

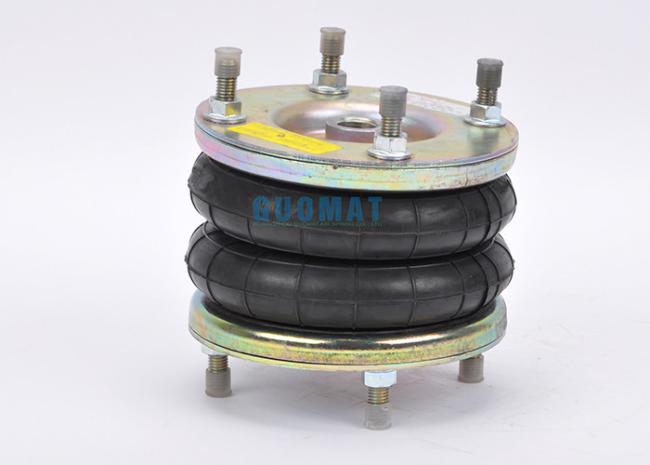

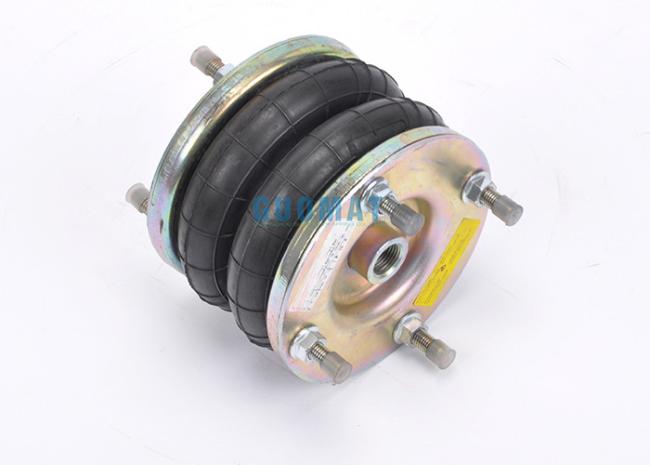

Product Image
