Stamped Flange Air Spring M31123 Airbag Shock Absorber Cylinder
Stamped Flange Air Spring M31123 Airbag Shock Absorber ,Shock Cylinder,Air Spring
Product Description
Original Manufacturer:Norgren
Part Number:M31123
GUOMAT Number:3BM31123
Operation:Single Acting
Number Of Convoluted:3 Convoluted
Operation Pressure:0~8 bar
Type Of Product:Air Bellow
Working Temperature:-40℃~70℃
Material-Nuts&Screw:Steel
M/31123 Flange Air Spring By Norgren
| Cover Plate | Top Cover Plate Diameter:260mm |
| Bottom Cover Plate Diameter:260mm | |
| Air Inlet/Gas Hole | G1/2=25Nm |
| Blind Nut | Screw Center Distance Of Top Cover Plate:232mm |
| Screw Center Distance Of Bottom Cover Plate:232mm | |
| Screw And Gas Hole Distance Of Top Cover Plate:116mm | |
| Top Cover Plate Screw (Nut) Tooth:4XM10 | |
| Bottom Cover Plate Screw (Nut) Tooth:4XM10 | |
| M10=25Nm | |
| Rubber Bellow | Rubber Bellow MAX Diameter:325mm |
| The Working Stroke:MAX 430mm to MIN 100mm | |
| Maximum Height:430mm | |
| Minimum Height:100mm | |
| Compressed Height:330mm |
| Technical Parameter | ||||||||
| Minimum Pressure 0 bar | ||||||||
| Minimum Height Restoring Force ≤250N | ||||||||
| Total Weight (Including Metal Parts) 6.9KG | ||||||||
|
Pneumatic applications - static eigenvalues ----Force F [kN] |
||||||||
| Pressure P [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ | |
| Height H [mm] | 350 | 9.8 | 13.2 | 16.7 | 20.5 | 24.3 | 28.4 | 17.2 |
| 300 | 12.3 | 16.5 | 20.8 | 25.3 | 29.9 | 34.7 | 15.3 | |
| 250 | 14.4 | 19.3 | 24.2 | 29.4 | 34.5 | 39.9 | 12.9 | |
| 200 | 16.4 | 22.0 | 27.7 | 33.5 | 39.4 | 45.6 | 10.0 | |
| 150 | 18.8 | 25.1 | 31.4 | 37.8 | 44.2 | 50.7 | 7.2 | |
We Have Other Product By Norgren
| M Type | PM Type |
| M31061 | PM31021 |
| M31062 | PM31023 |
| M31081 | PM31041 |
| M31082 | PM31042 |
| M31101 | PM31043 |
| M31102 | PM31061 |
| M31103 | PM31062 |
| M31121 | PM31063 |
| M31122 | PM31081 |
| M31123 | PM31082 |
| M31141 | PM31091 |
| M31142 | PM31092 |
| M31143 | PM31121 |
| M31162 | PM31122 |
| M31163 | PM31123 |
What about our package & shipping terms?
Package : Strong carton box or according to customer requirement.
Shipping Port : Huangpu Guangzhou China
Payment Term : L/C,T/T,Westren Union,Paypal
Delivery Term : 1.2-8 working days after receive payment.
2.Shipping by air,by sea,by express(DHL/FEDEX/UPS...)

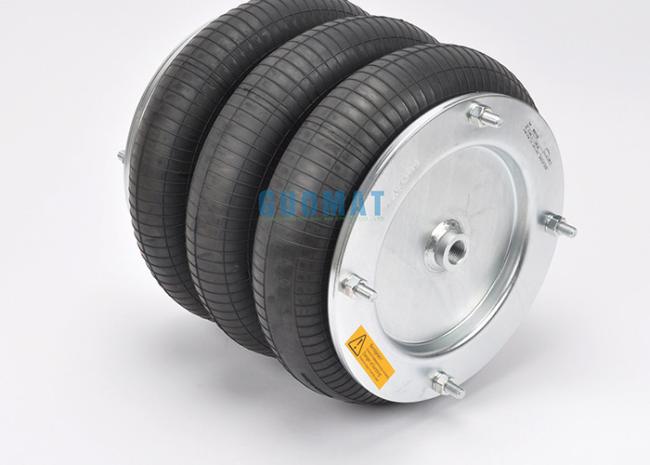

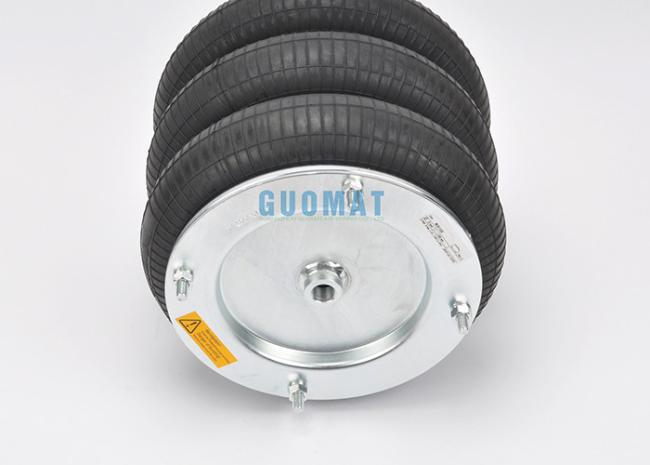

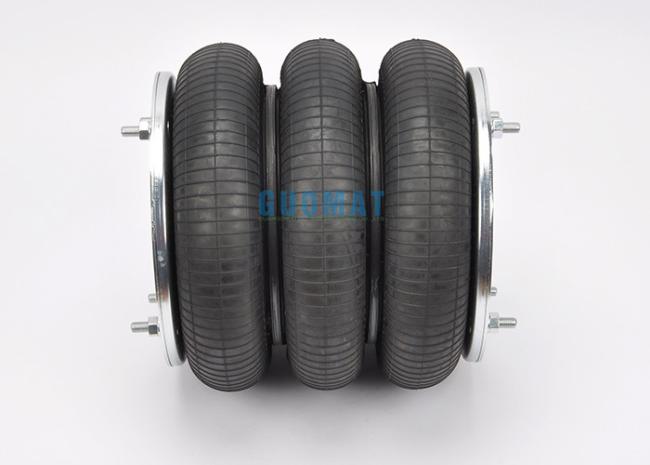

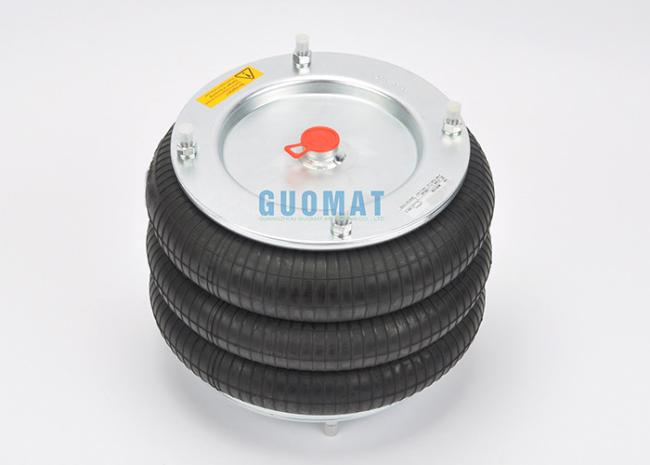

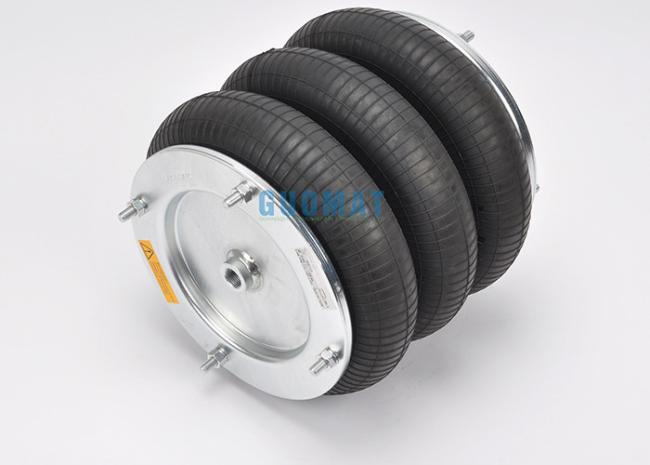

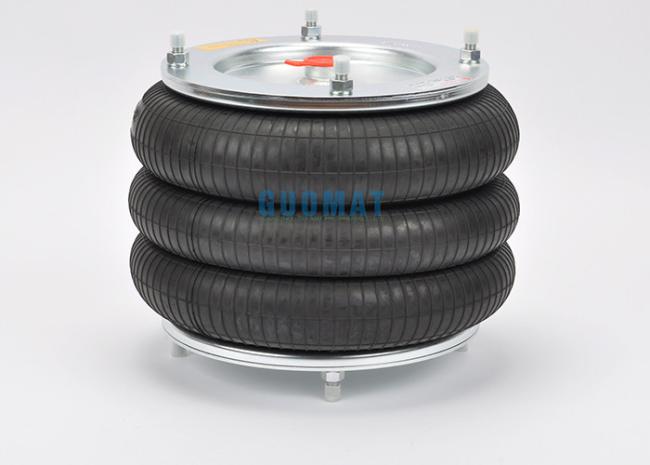

Product Image
FAQ
|
1. Q: How to order ? A: Step 1, please tell us what model and quantity you need; Step 2,then we will make a PI for you to confirm the order details; Step 3,when we confirmed everything ,you can arrange the payment; Step 4,finally we deliver the goods within the stipulated time.
|
|
2. Q: When will make delivery ? A: Delivery time is 2-8woring days.
|
|
3. After-sales service 1 year warranty for all kinds of products; If you have any questions after receiving the goods,please feel free to contact me,as an experienced manufacturer ,you can rest assured of the quality and after-sales service.
|
|
4. Payment T/T,Western Union,L/C
|
|
5. Transportation Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight.
|
