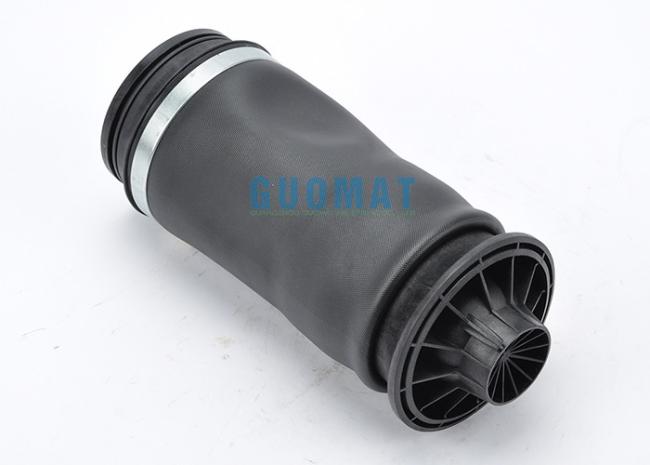

Rear Air Suspension Parts For Mercedes Benz W164 Air Spring Air Bellow A1663200325
Rear Air Suspension Parts For Mercedes Benz W164 Air Spring Air Bellow A1663200325
Product Information
| Type | Air Suspension Shock Absorber | Type Number | 505021 |
| Material | High-Quality Rubber | Warranty | 1 Year |
| Application | For Mercedes-Benz | Model | W164 GL/ML-CLASS |
| Position | Rear | Port | Guangzhou,China |
| Packing Type | Neutral Packing | Size | OEM Standard Size |
| Shock Absorber | Gas-Filled | Condition | Brand New |
Reference Number
| FOR MERCEDES-BENZ W164 GL/ML-CLASS | ||
| A1663200325 | A1643201025 | A1643200425 |
| A1643200625 | A1643200925 | A1643200225 |
| A1643200725 | A1643200825 | REAR LEFT OR REAR RIGHT |
What is it?
Air suspension is mainly composed of control computer,air pump,pressure storage tank,pneumatic front and rear shock absorbers and air distributor.The working principle of the air suspension is to use an air compressor to form compressed air and send the compressed air to the air chamber of the spring and shock absorber to change the height of the vehicle. There are vehicle height sensors near the front and rear wheels. According to the output signal of the vehicle height sensor, the microcomputer determines the change of the vehicle height, and then controls the compressor and the exhaust valve to compress or extend the spring, thereby reducing the pressure. vibration effect. The air suspension gives the car more spirituality. When you are driving at high speed, the suspension can be hardened to improve the stability of the car body; when driving on uneven roads at low speed for a long time, the control unit will soften the suspension to improve the comfort of the car.
For exact year and model, please check compatibility.
●For 2010-2011 Mercedes Benz ML63 AMG
●For 2008-2015 Mercedes Benz ML550
●For 2005-2007 Mercedes Benz ML500
●For 2010-2011 Mercedes Benz ML450
●For 2006-2015 Mercedes Benz ML350
●For 2007-2009 Mercedes Benz ML320
●For 2008-2015 Mercedes Benz GL550
●For 2007-2015 Mercedes Benz GL450
●For 2010-2015 Mercedes Benz GL350
●For 2007-2009 Mercedes Benz GL320
How to replace it?
Replacing air suspension components takes some work, but it can be done by yourself.
●Turn off the air suspension switch. Find the air suspension switch.
●Raise and support the vehicle. Bleed the air suspension system.
●Disconnect the electrical connector from the air spring solenoid. Remove the air line from the air spring solenoid.
●Remove the air spring solenoid valve from the air spring assembly. Remove the rear air spring retainer located on top of the air spring.
●Lift the air spring off the bottom bracket of the rear axle. Place the bottom of the air spring on the bottom spring bracket on the shaft.
●Compress the air spring assembly by hand.
●Install the spring retaining clip on top of the air spring. Install the air spring solenoid into the air spring.
●Connect the air spring solenoid valve electrical connector. Connect the air line to the air spring solenoid.
●Lower the vehicle to the ground. Turn the pendant switch back to the on position.
Frequently Asked Questions
Q1:What is your terms of packing?
A:Generally,We pack our goods in neutral brown carton.We can also pack according to your requirements.
Q2:What is your terms of payment?
A: L/C,T/T,Western Union,Paypal...
Q3:What is your terms of delivery?
A: By air,By sea,By express,such as DHL,FEDEX,UPS,EMS...
Q4:How about your delivery time?
A:About 2-8 working days after received your payment.
Q5:Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.We can buid the molds and fixtures.
