Flanged Industrial Air Spring Firestone W01-R58-4053 6 X 2 Double Bellows For Equipment
Flanged Industrial Air Spring Firestone W01-R58-4053 6 X 2 Double Bellows For Equipment
Product Description
Type : Double Convoluted Air Spring With Flange Ring
OEM Number : W01-R58-4053
Inch x Convolutions : 6''x1
Dunlop Number : SP1482
Material : Natural Rubber + Steel
Cover Plate Dia : 153mm
MOQ : 1 pcs
Delivery Time : 2-8 working days receiving your payment
Payment : T/T,L/C,Western Union or PayPal
Shipment : By air , By sea , By express

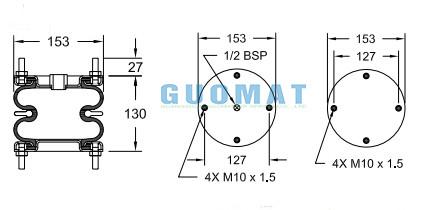

Technical Data
Nut/Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4xM10X1.5
Bottom Cover Plate Screw (Nut) Tooth : 4xM10X1.5
Cover Plate
Top Cover Plate Diameter : 153mm
Screw Center Distance of Top Cover Plate : 127mm
Bottom Cover Plate Diameter : 153mm
Screw Center Distance of Top Cover Plate : 127mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet :1/2 BSP
Rubber Bellow
Rubber Bellows MAX Diameter :153mm
Manufacturer Cross Reference Number
FIRESTONE : W01-R58-4053
FIRESTONE : W01/R58/4053
FIRESTONE : W01R584053
FIRESTONE : w01-r58-4053
DUNLOP : SP1482
DUNLOP : SP 1482
DUNLOP : SP/1482
6X1 , 6*1 , 6''X1
GUOMAT Other Types of Air Spring
Techinacal Advantages
|
No. |
Advantages |
|
1 |
Work without friction |
|
2 |
Maintenance free |
|
3 |
No lubrication |
|
4 |
Excellent vibration isolation performance |
|
5 |
Easy installation |

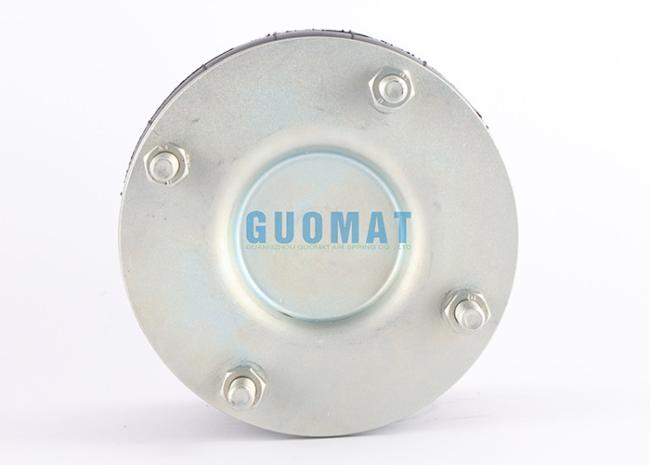

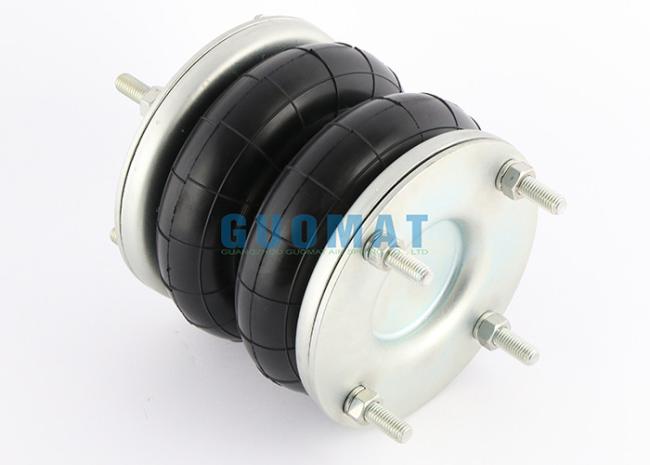

Product Picture
