Firestone Airide Air Spring W01-358-9200 Rubber Air Bag For Commercial Truck And Trailer

W01-358-9200 Technical Data

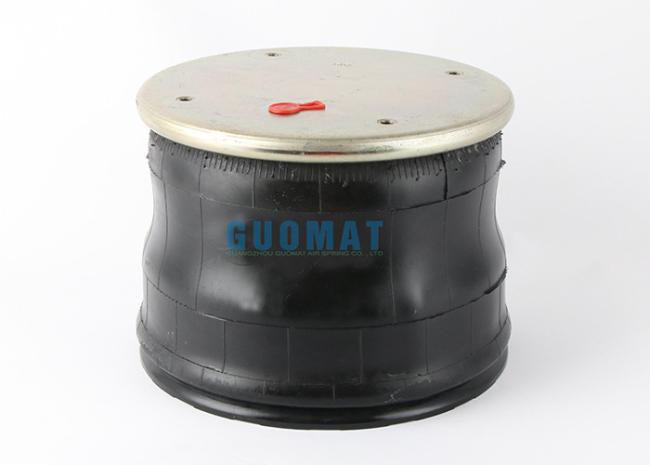

Cover Plate

Top Cover Plate Diameter : 289mm

Threaded Hole Distance of Top Cover Plate : 159mm

Air Inlet

Air Inlet : M22x1.5

Bolt / Stud

Stud : 4xM12x1.75

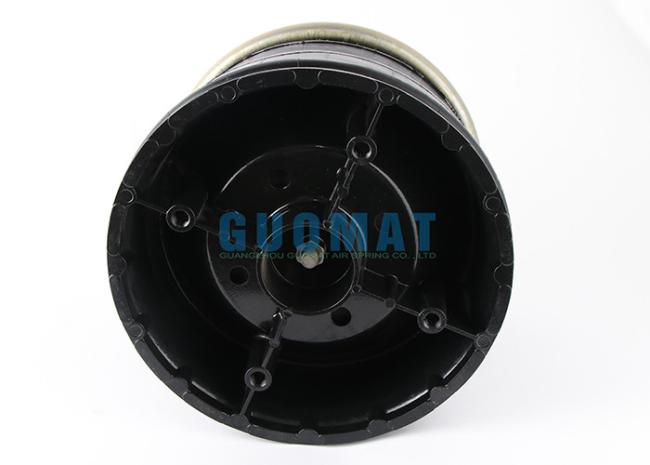

Bottom Piston

Bottom Piston Diameter : 300mm

Bottom Piston Height : 95 mm


How to Replace and Install Air Springs
Due to the excessive load of the truck empty spring, it is easy to cause wear and tear. With the increase of use time and the influence of the environment, the rubber of the air spring will age, which will lead to cracks and leakage of the fabric layer. So we had to replace the air spring. After we have selected the air spring of the truck, we can replace it according to the following steps:

Step 1: Press the upper end stop with the thumbs of both hands, squeeze the middle part of the airbag inward with four fingers at the same time, and compress down the width of one palm.

Step 2: Place the compressed air spring between the piston and the top plate, with the bag number and label facing up.

Step 3: Fix the lower port on the annular seat on the piston, and fix the upper port on the annular seat under the top plate.

Step 4: Pressurize the air spring so that its upper and lower ports fit precisely between the top plate and the piston, the ports will snap into place with a quick snap.

Step 5: Lower the vehicle, the air spring will automatically roll down along the piston, that is, the installation is complete.

Advantages of Truck Air Springs

Air springs use the compressible properties of air to store air in a closed container. In order to realize the functions of buffering and height adjustment, the air springs are made of rubber materials.
