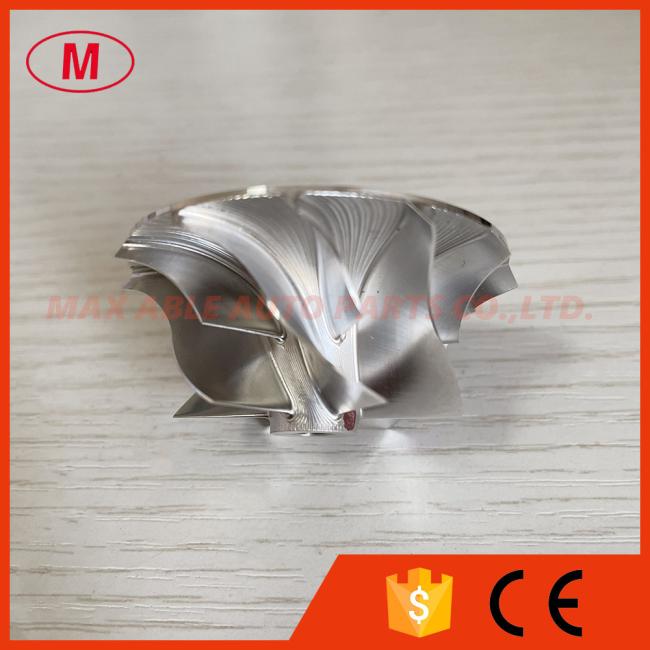

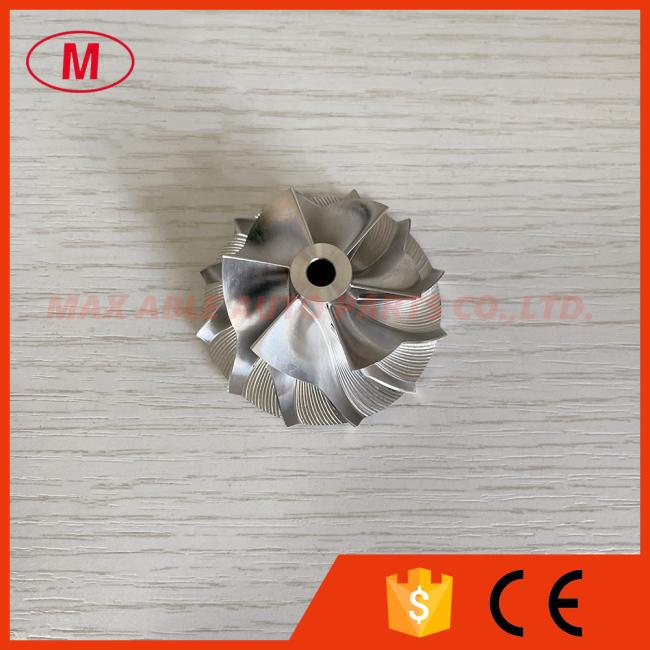

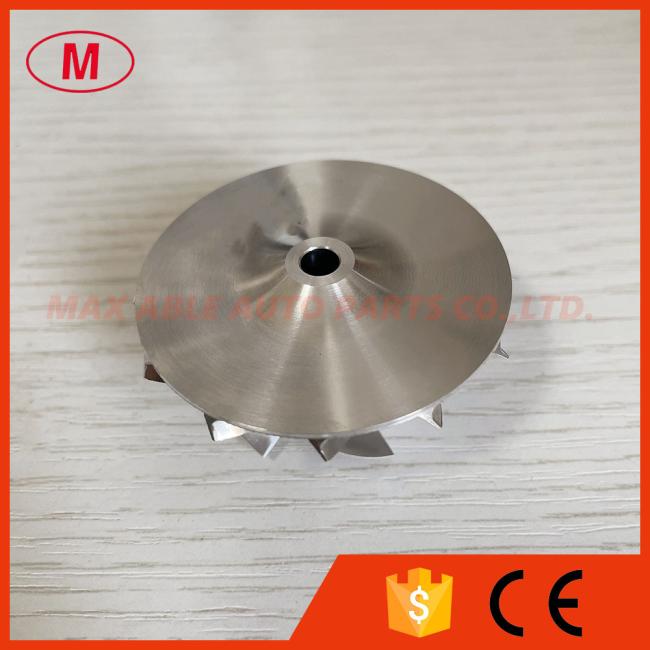

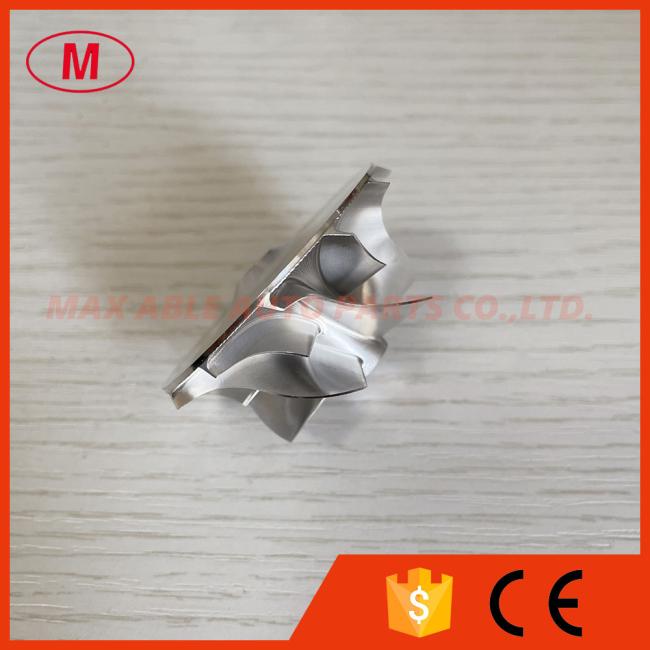

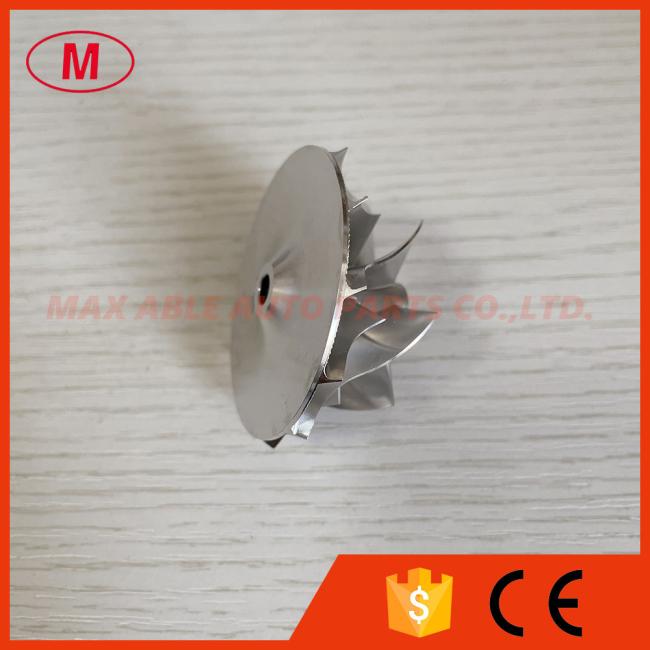

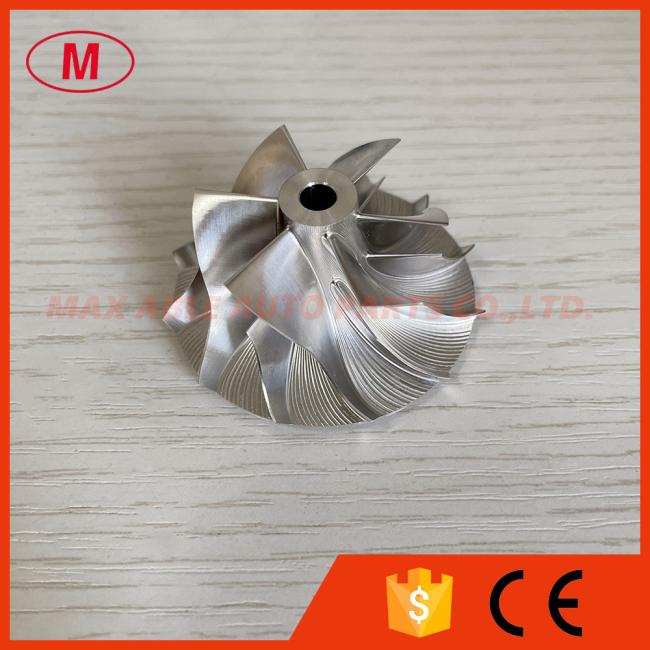

GT1749 6+6 blades 702489-0005/0001 36.39/49.10mm high performance turbo milling/aluminum 2618/billet compressor wheel

1.  MODEL:GT1749 forward

2.GT1749 6+6 blades 702489-0005/0001 36.39/49.10mm high performance turbo billet/milling/aluminum 2618 compressor wheel for 721021-0001/0003/0004/0005/0006/0008/717382-0002/717478-0004/0005/0006/7214021-0003/0004/0005/0006/724495-0002/0003/729853-0001/750431-0004/0006/0007/0009/0010/0012/0015/753556-0002/0006/753847-0002/0006/756047-0002/0004/0005/760698-0002/0003/0004/760774-0002/0003/765993-0004

3.Size:

Nose diameter:11.00mm

inducer:36.39mm

Exduder:49.10mm

Tapered tip exducer:52.12mm

Tip height:3.42mm

Superback:2.40mm

Overall height:24.90mm

  bore size :5.08mm

bore type:through

Trailing Angle:60 degree

Cutback:0.0

SP Height angle:0.00

Blades height:20.50mm

Splitter height:11.55mm

Tapered tip Angle:30 degree

6+6 blades

Forward rotation

Fit for OE compressor housing

Application:

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

ALL the billet compressor wheels have been balanced
