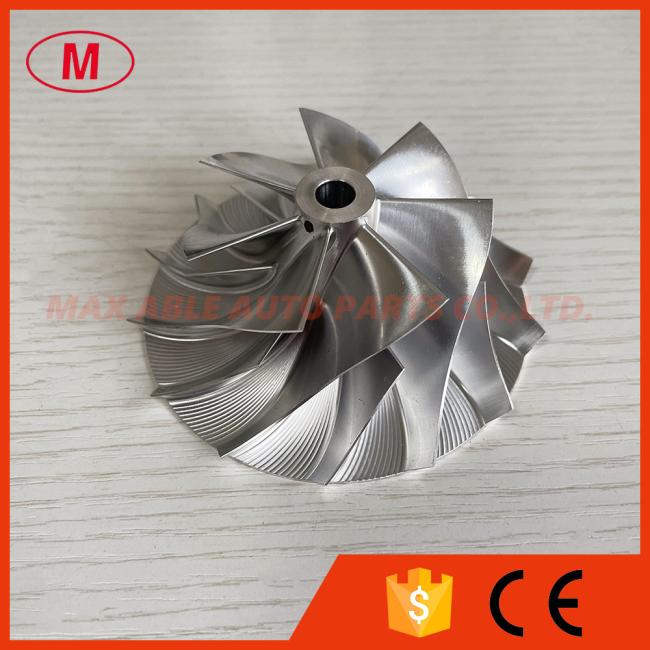

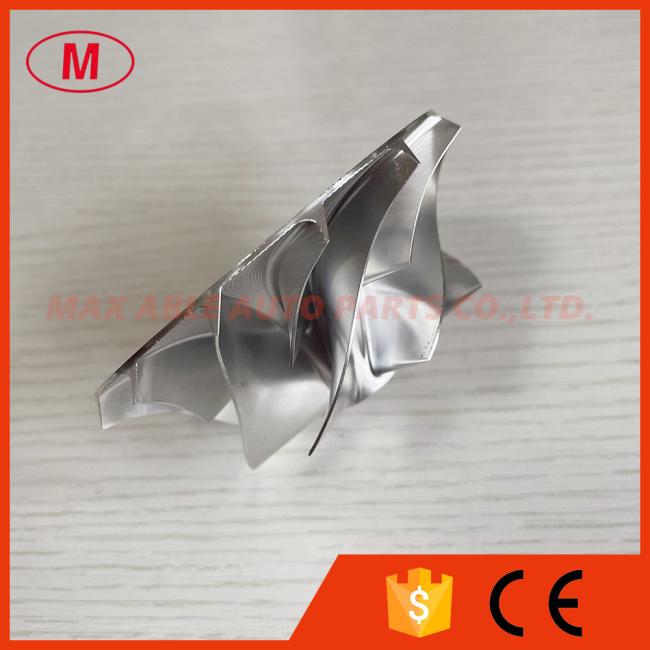

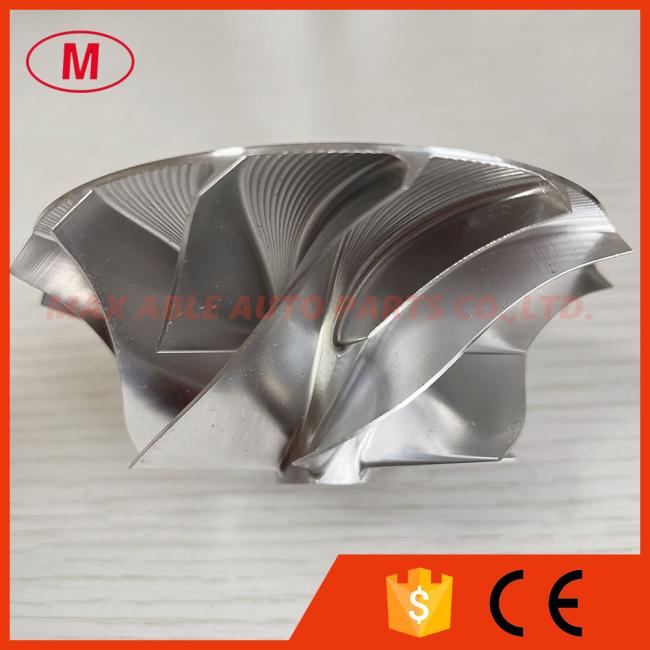

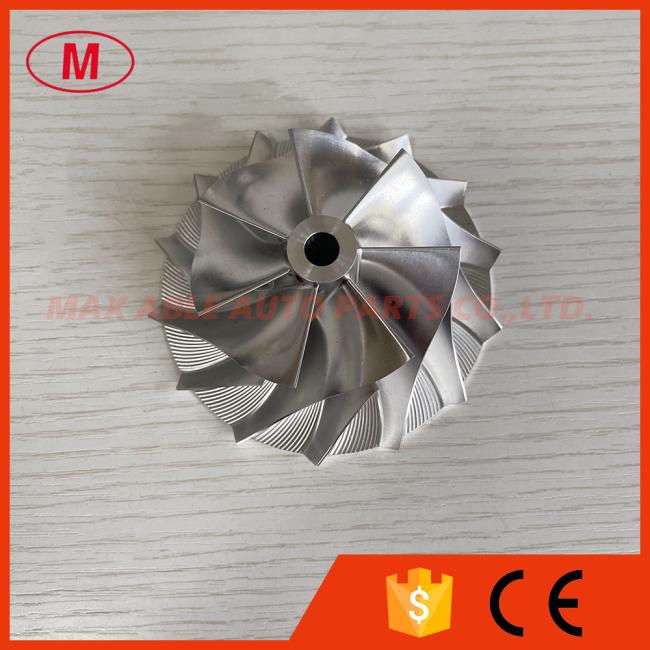

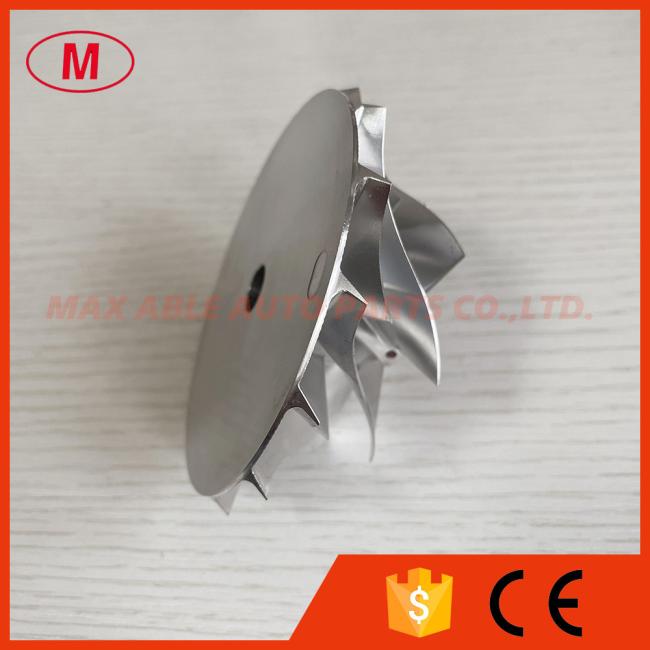

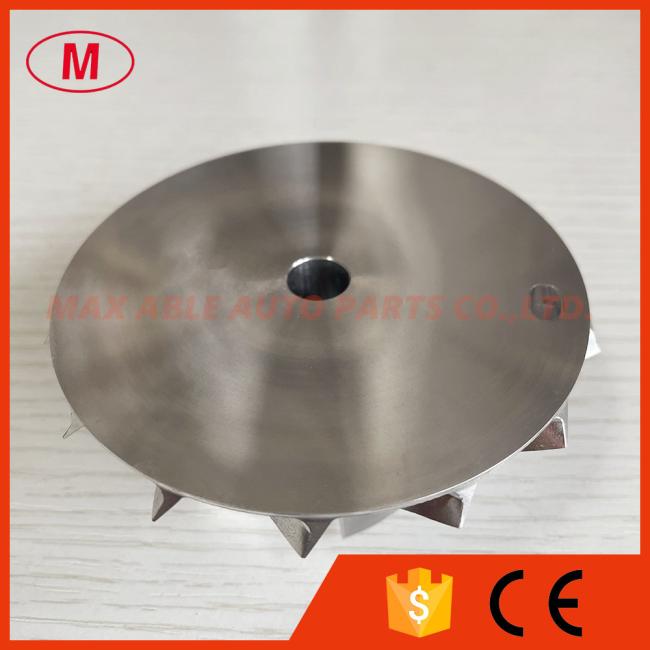

reverse 59.87/86.01mm 7+7 blades high performance milling/aluminum 2618/Billet compressor wheel
1. reverse 59.87/86.01mm 7+7 blades high performance no thread milling/aluminum 2618/Billet compressor wheel
2.Size:
NOSE diameter:15.00mm
Inducer :59.87mm
Exducer:86.01mm
Tapered tip exducer:91.47mm
Tip height:5.83mm
superback:0.00mm
Overall height:34.70mm
bore size:10.50mm
Blade height:32.70mm
Bore type:Through
cutback:2.1mm
Splitter height:18.00mm
Sp height angle:-6.00 degree
7+7 blades
reverse rotation
trailing angle:60 degree
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
Tapered tip angle: 30 degree
3.High quality and competitive price.
We have more size and we can produce as your requirement .
All the compressor wheels have been balanced.
