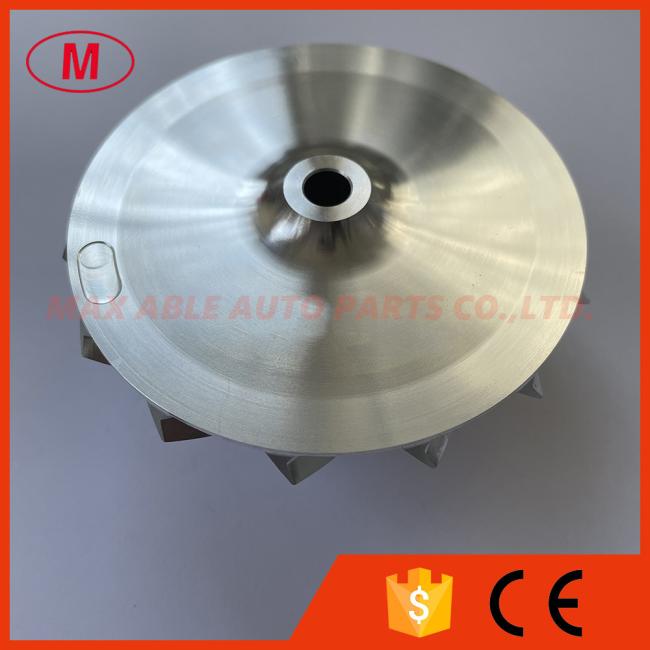

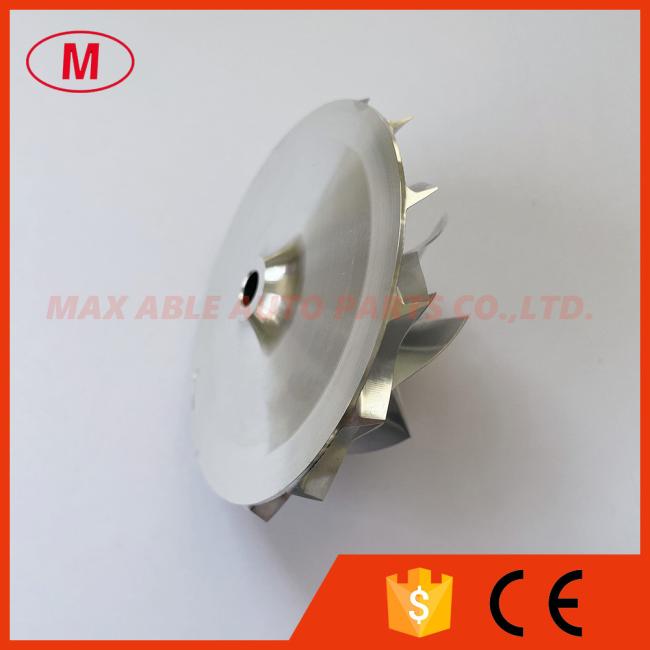

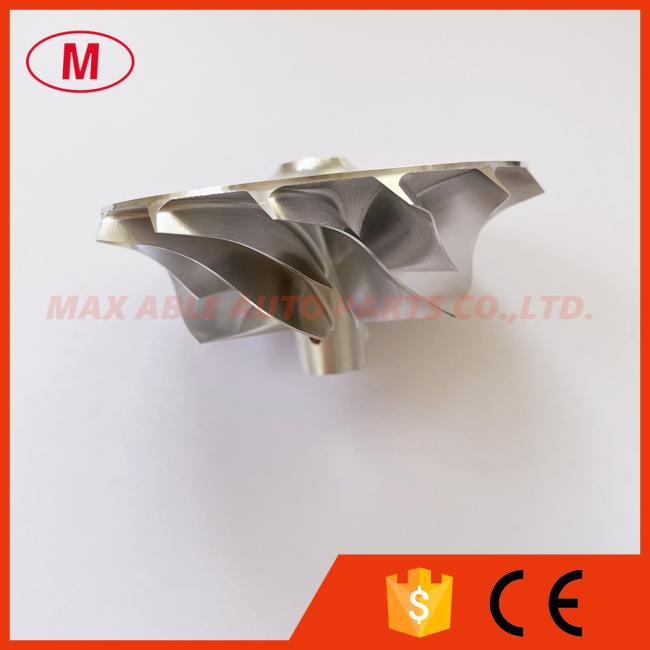

K26 56.85/79.00mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel

1.K26 56.85/79.00mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel

2.Size:

Nose diameter:13.26mm

Inducer:56.85mm

OE Exducer:79.00mm

Tapered tip exducer:84.01mm

Tip height:5.34mm

Superback:5.30mm

Overall height:40.30mm

Bore size:7.02mm

bore type:through

Trailing Angle:55 degree

Cutback:3.00mm

Splitter height:17.05mm

SP height angle:-3.00

Blade height:25.92mm

Tapered tip Angle:30 degree

It is custom size ,please check carefully before buying.

3.High quality and competitive price.

4.if you want more details, please send email to me.

We can produce as your requirement.

All the compressor wheels have been balanced.

The more models we also have.
