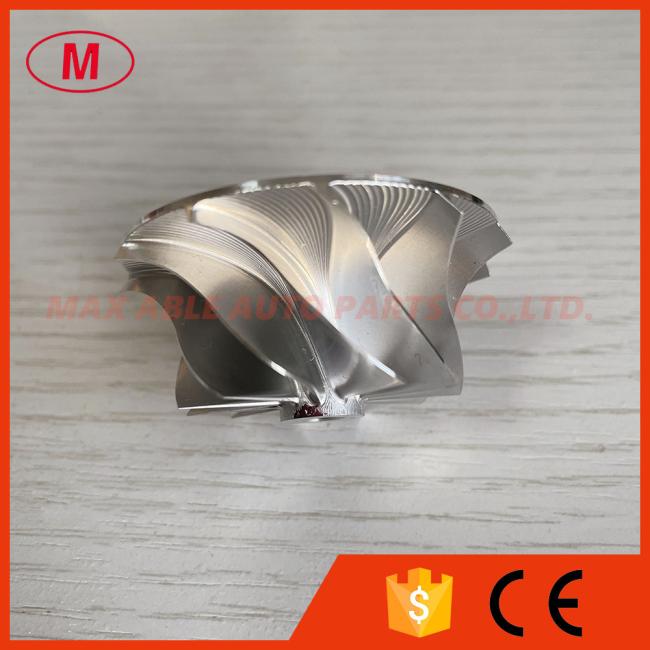

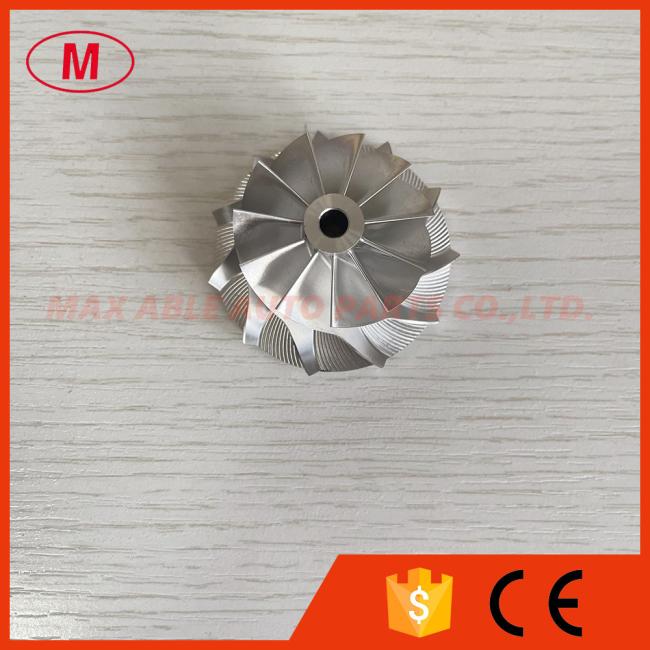

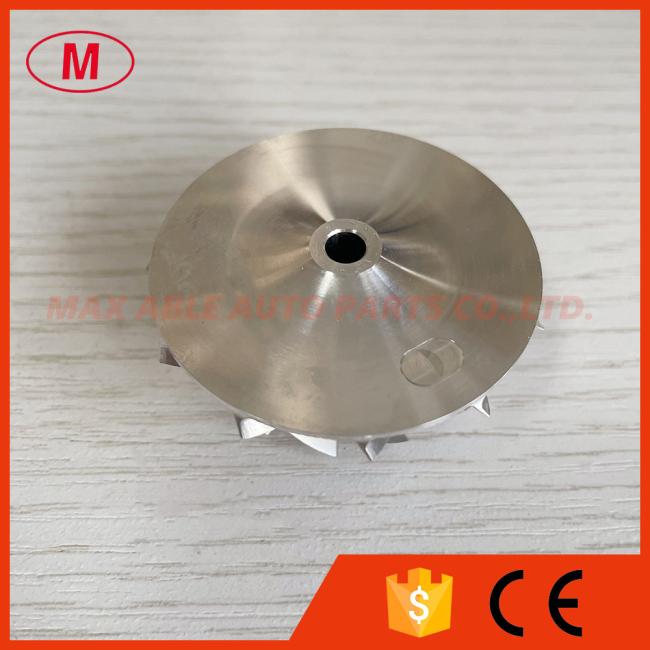

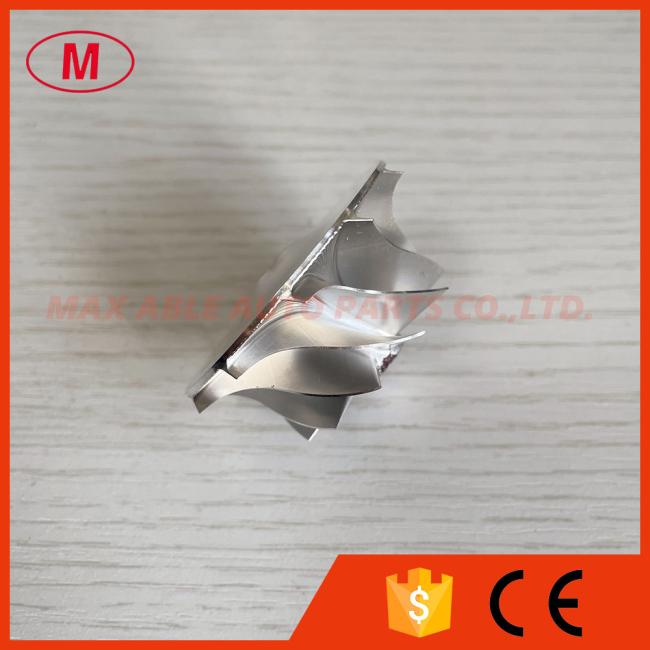

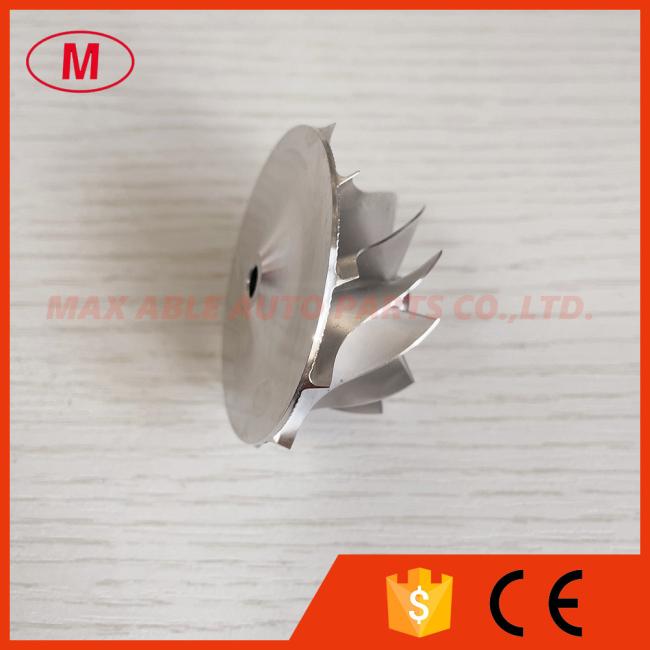

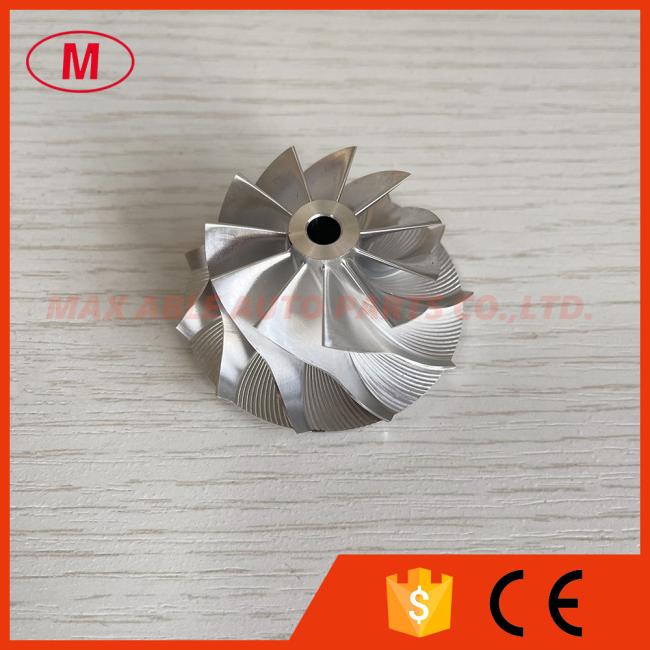

GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002

1. MODEL:GT15-25 forward

2.GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo billet/milling/aluminum 2618 compressor wheel for 717382-0002/717478-0004/0005/0006/7214021-0003/0004/0005/0006/724495-0002/0003/729853-0001/750431-0004/0006/0007/0009/0010/0012/0015/753556-0002/0006/753847-0002/0006/756047-0002/0004/0005/760698-0002/0003/0004/760774-0002/0003/765993-0004

3.Size:

Nose diameter:10.70mm

inducer:36.39mm

Exduder:49.00mm

Tapered tip exducer:52.00mm

Tip height:3.60mm

Superback:2.40mm

Overall height:24.89mm

bore size :5.08mm

bore type:through

Trailing Angle:60 degree

Cutback:0.0mm

SP Height angle:0.00

Blades height:20.50mm

Splitter height:0.00mm

Tapered tip Angle:30 degree

11+0 blades

Forward rotation

Fit for OE compressor housing

Application:

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

ALL the billet compressor wheels have been balanced
