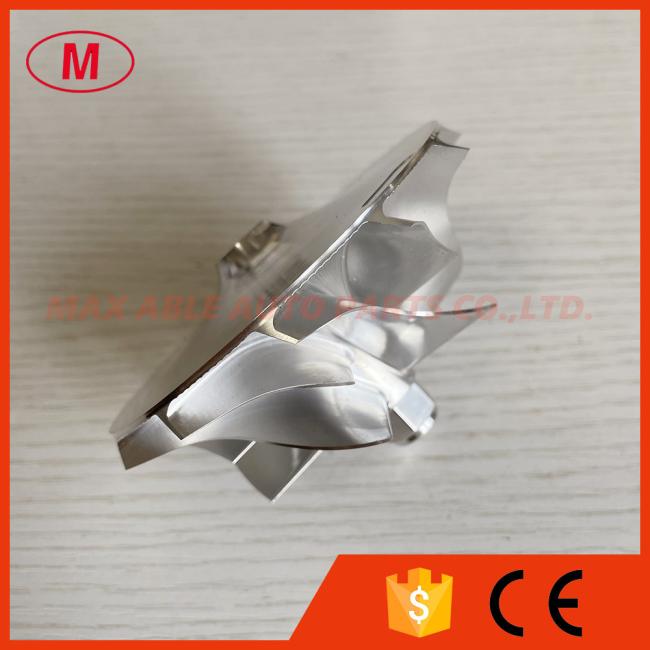

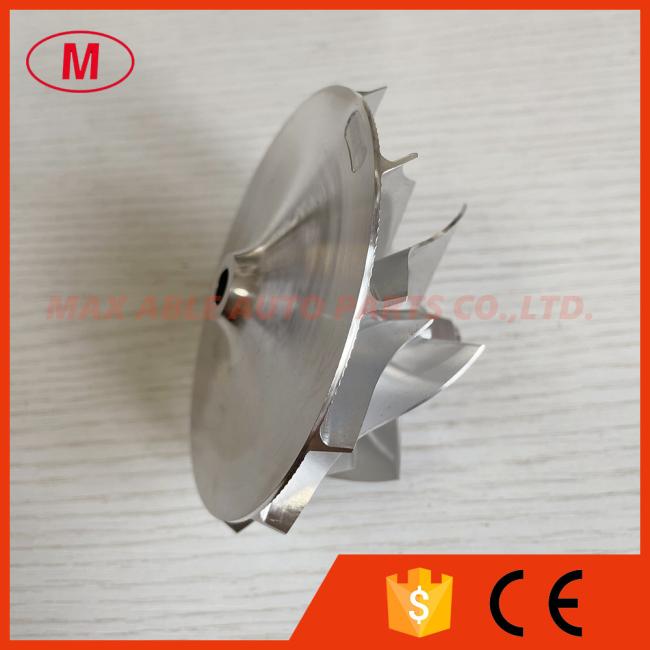

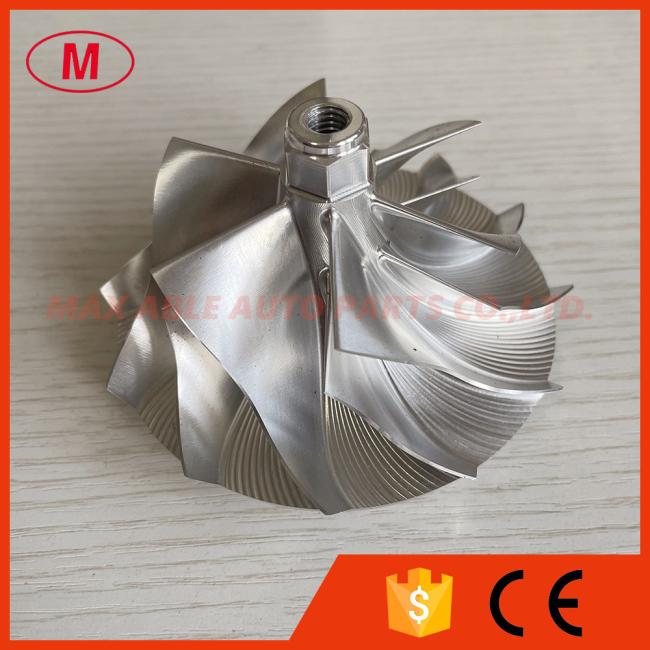

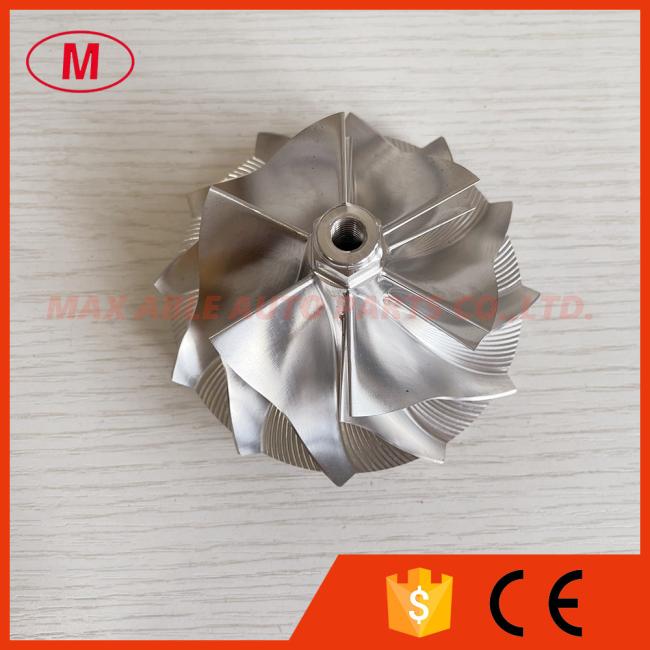

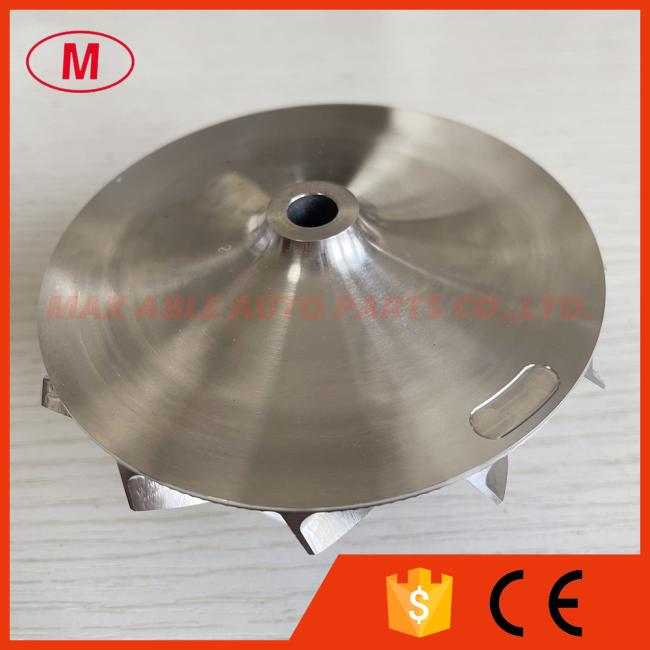

GTA4594 70.30/94.00mm 6+6 blades 434335-0017 high performance Turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:GTA4594 Forward

2.GTA4594 70.30/94.00mm 6+6 blades 434335-0017 high performance Turbo Billet/milling/aluminum 2618 compressor wheel for C-A-T C-12 EURO 2 12.0L 702335-0001

3.Size:

Nose diameter:17.00mm

Inducer:70.30mm

Exducer:94.00mm

Tapered tip exducer:100.49mm

Tip height:6.63mm

super back:9.51mm

overall height:58.80mm

bore size :8.25mm

bore type:Threaded-M8x1.25LHT

Trailing angle:60 degree

Cutback:5.0mm

Splitter height:21.60mm

SP height angle:5.00

Blades height:36.00mm

6+6 blades

forward rotation

Tapered tip angle:30 degree

Fits OE Compressor Housing

4.Application:

C-A-T C-12 EURO 2 12.0L 702335-0001

5.High quality and competitive price.

6.Any questions please send email to me.

All the compressor wheels have been balanced.
