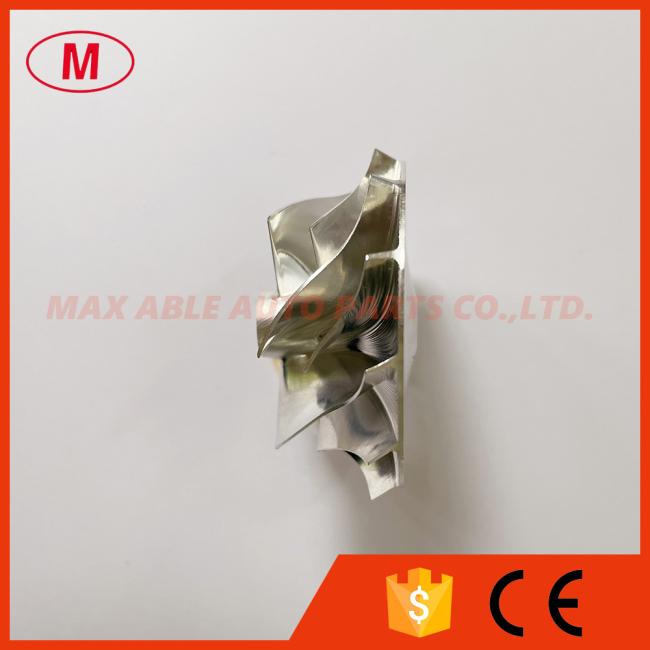

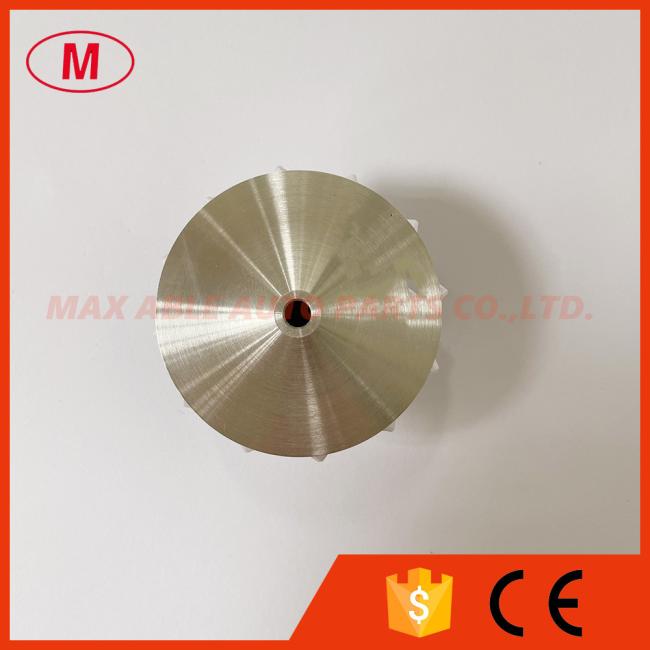

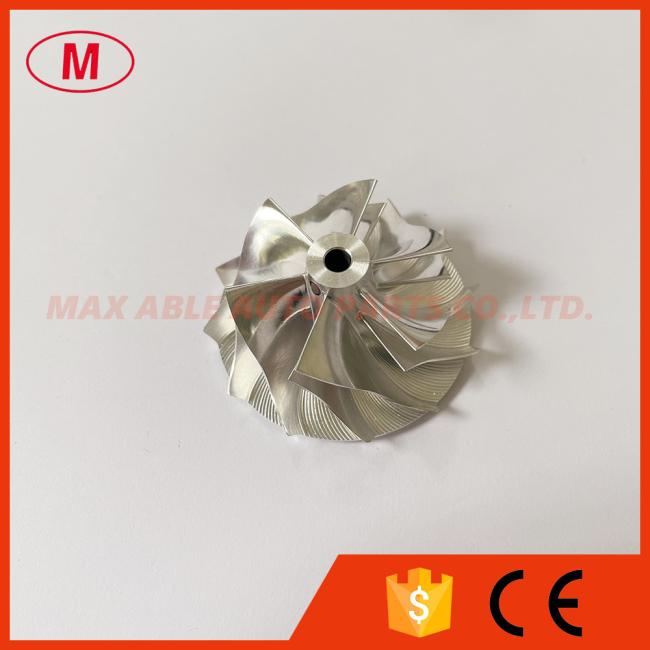

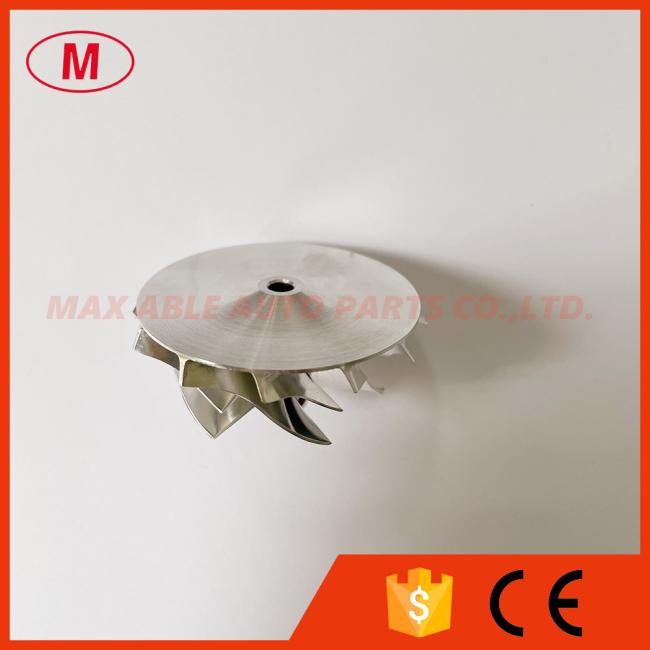

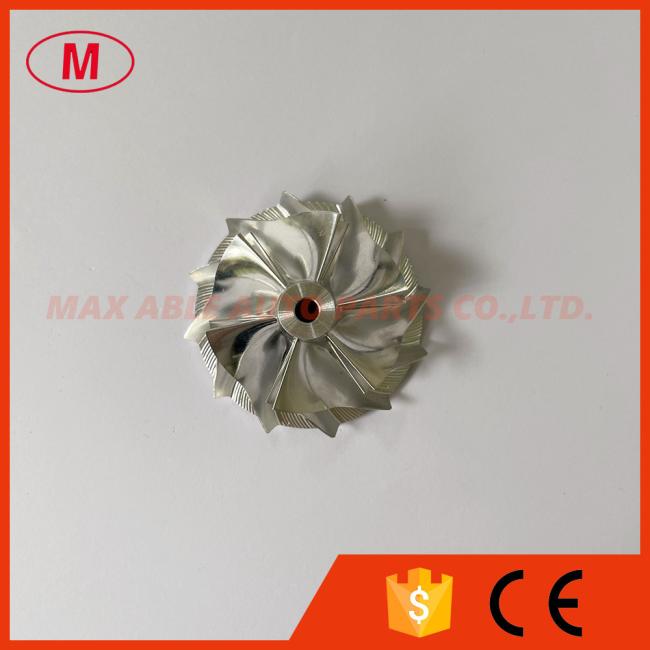

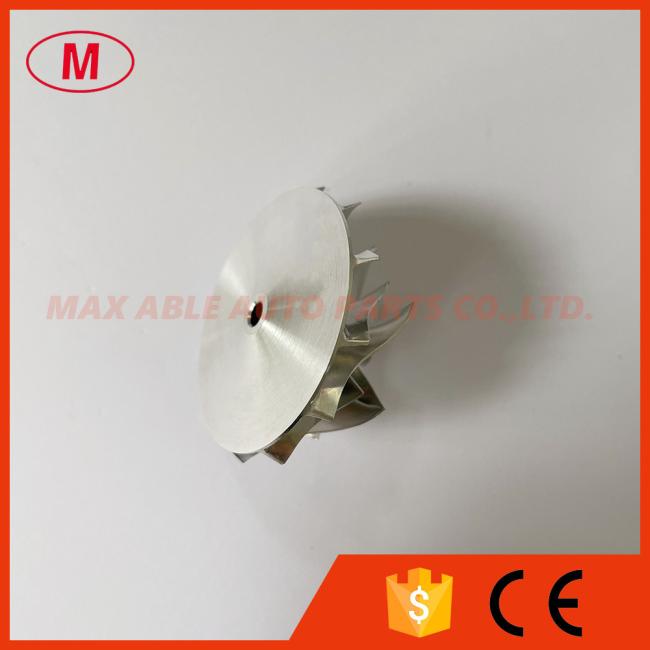

TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610
Price:
Negotiable
MOQ:
1PC
Delivery Time:
3-7 days
Brand:
no
Product Description
1. MODEL:TD03 forward
2.TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo Billet/milling/aluminum 2618 compressor wheel for 49131-05400/08610/5210/05211/05212/05252/05312/05313/05353/05401/05402/05403/05452
3.Size:
Nose Diameter:9.67mm
Inducer:35.09mm
exducer:44.01mm
Tapered tip exducer:47.57mm
Tip height:4.09mm
Superback:1.68mm
bore size :4.00mm
bore type:through
Overall height:21.60mm
Trailing angle:30 degree
Blade height:17.14mm
Cutback:0.0mm
Sp Height angle:-3.60
Splitter height:11.65mm
Tapered tip angle: 30 degree
6+6 blades forward
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
