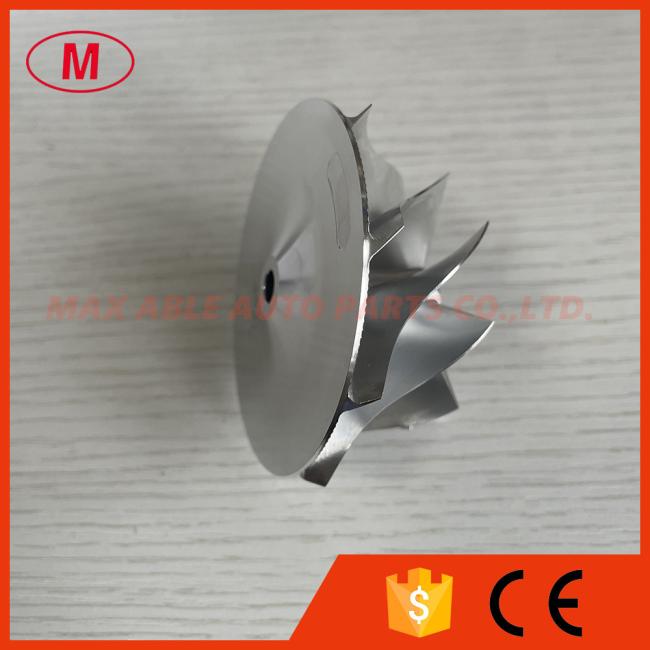

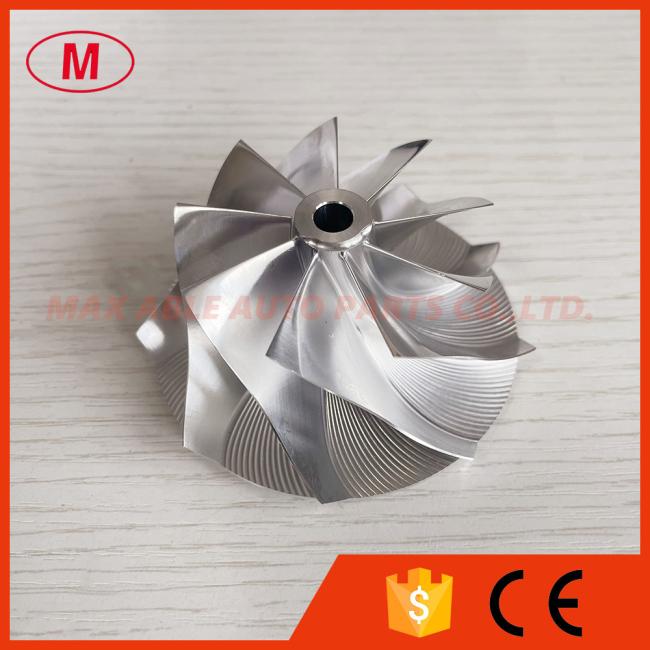

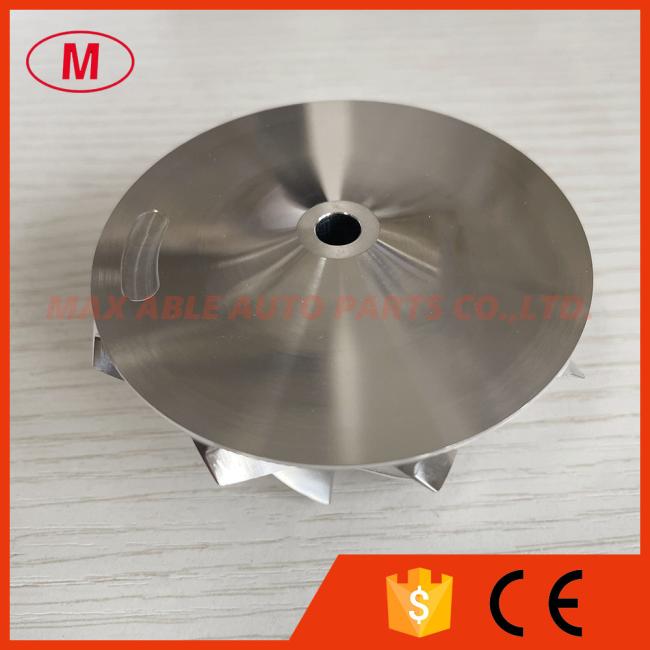

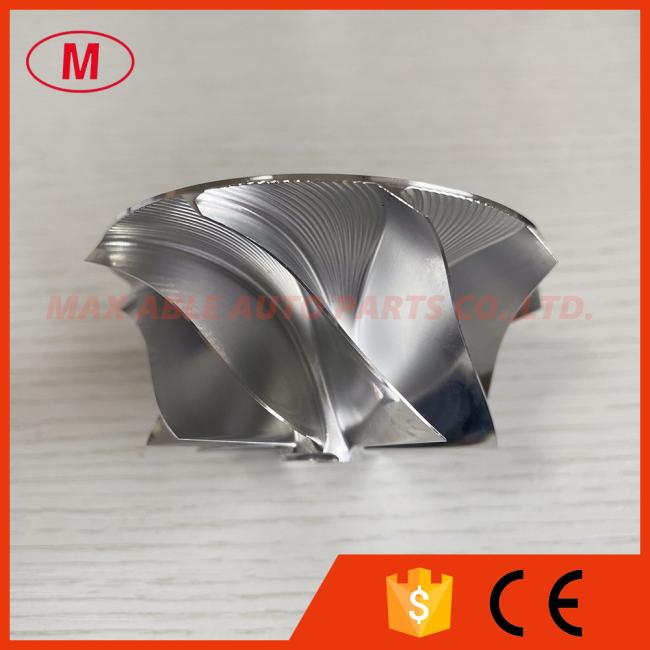

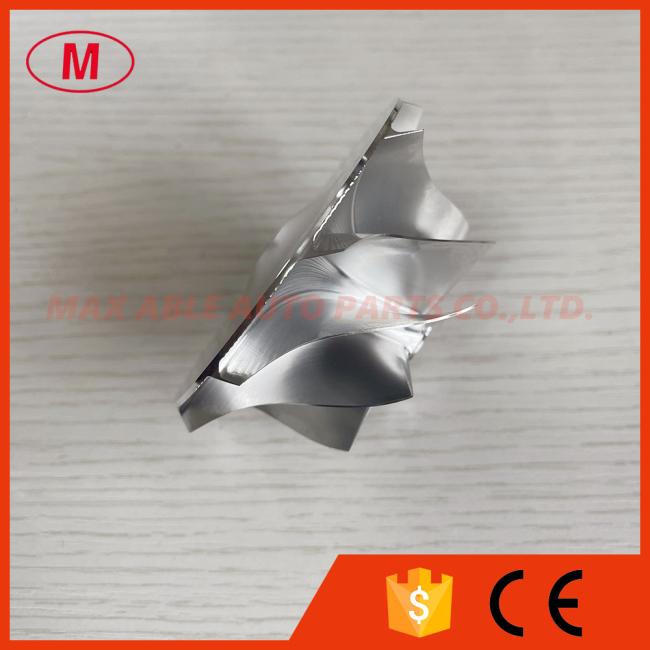

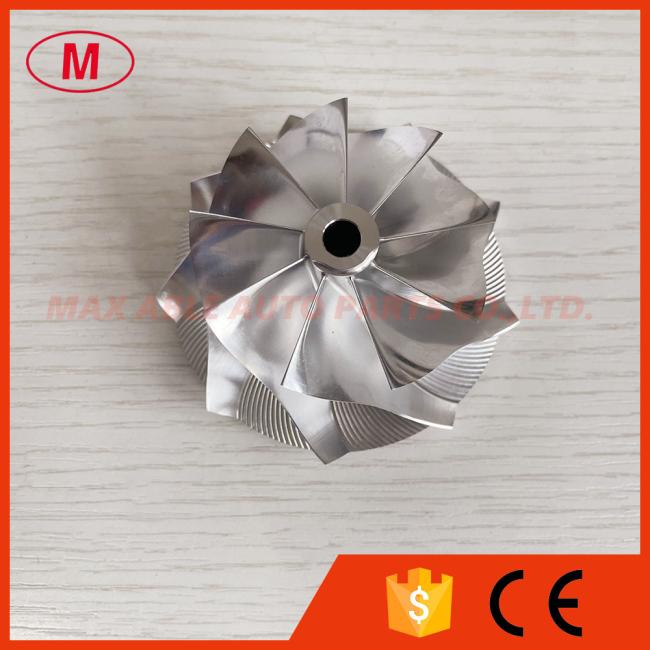

TD05H 54.06/71.40mm 9+0 blades high performance aluminum 2618/milling/billet compressor wheel

1.TD05H 54.06/71.40mm 9+0 blades high performance aluminum 2618/milling/billet compressor wheel

2.SIZE:

Nose diameter:12.80mm

inducer:54.06mm

Exducer:71.40mm

Tapered tip exducer :76.51mm

tip height:5.43mm

trailing angle:45 degree

Tip height:3.55mm

Superback:2.90mm

Overall height:35.14mm

bore size :6.50mm

Bore type:through

cutback:0.0

splitter height:0.00mm

sp height angle:0.00

Blade height:30.20mm

9+0 blades

It is custom size ,please check carefully before buying.

tapered tip angle:30 degree

4.Good quality and competitive price

5.Please send email to me or talk to me on online ,if you want to know more details.

All the billet compressor wheel have been balanced.
