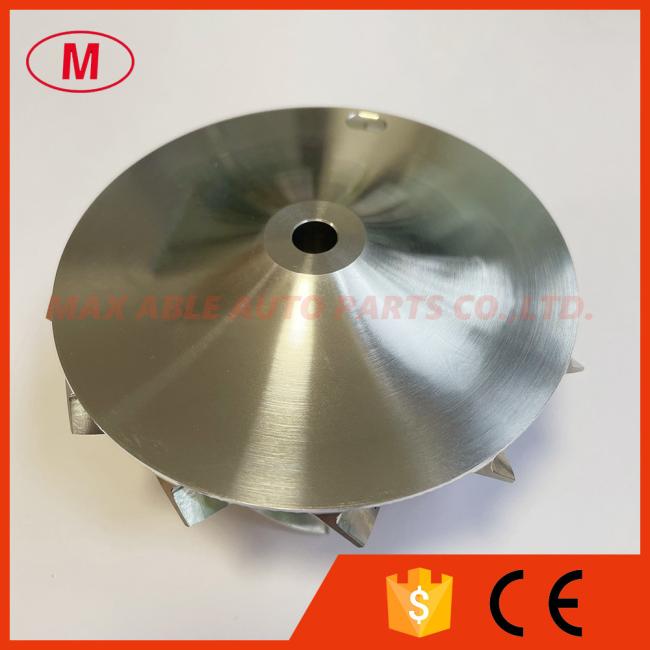

S300 69.66/93.35mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:S300 forward

2.S300 69.66/93.35mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:16.55mm

inducer:69.66mm

Exduder:93.35mm

Tapered tip exducer:100.17mm

Tip height:6.91mm

Superback:6.95mm

Overall height:52.35mm

bore size :8.01mm

Bore type:through

Trailing Angle:45 degree

Cutback:-2.0mm

Blades height:42.68mm

SP height Angle:-8.30

Splitter height:28.95mm

6+6 blades

Forward rotation

Tapered tip angle:30 degree

It is for custom size ,please check carefully before buyig.

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

ALL the billet compressor wheels have been balanced.

The more models we also have.
