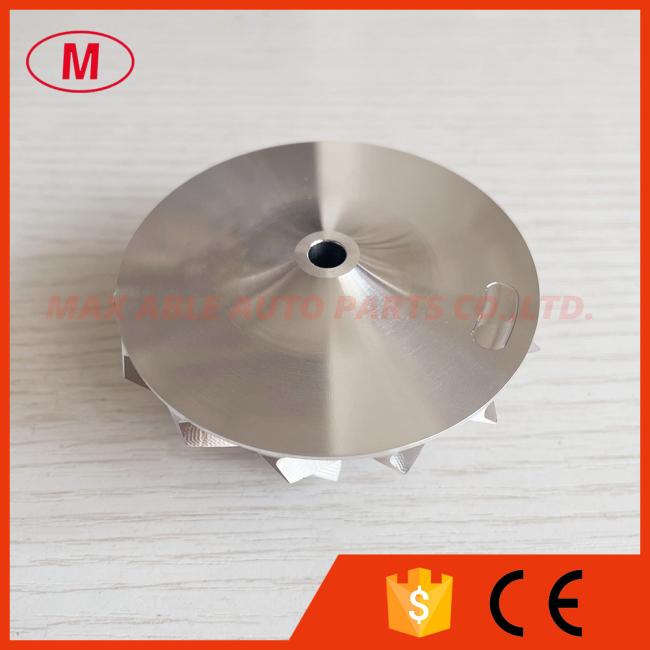

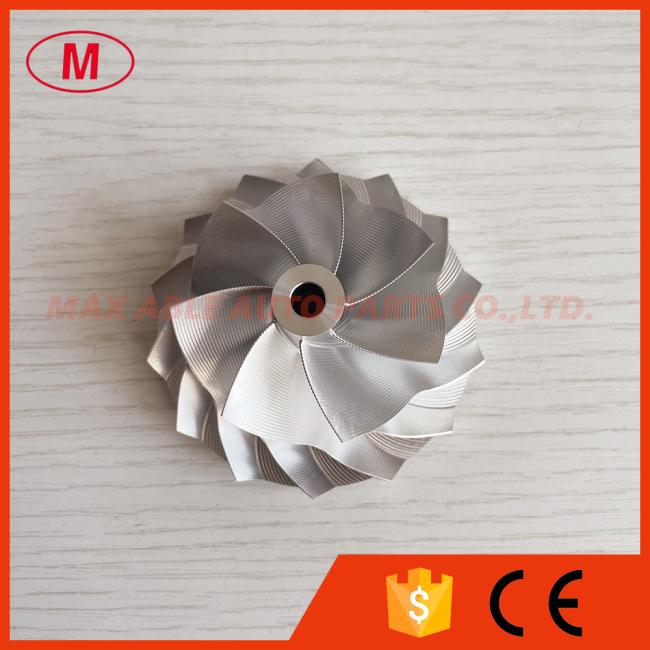

S100 50.00/68.01mm 7+7 blades point milling high performance turbo milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: no
Product Description
1. MODEL:S100 forward
2.S100 50.00/68.01mm 7+7 blades point milling high performance turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.75mm
Inducer:50.00mm
exducer:68.01mm
Tapered tio exducer:71.57mm
Tip height:4.77mm
Superback:3.71mm
bore size :6.00mm
bore type:through
Overall height:34.00mm
Cutback:0.0mm
Trailing Angle:45 degree
Blades height:25.72mm
Splitter height:16.90mm
SP height angle:-3.50
7+7 blades
forward rotation
It is custom size ,please check carefully before buying.
Tapered tip Angle:25.3 degree

4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
