TD04 reverse 50.00/67.00mm 8+0blades Point Milling, Snake Curve,Twisted Blade, Performance Turbo billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description
1. MODEL:TD04 reverse

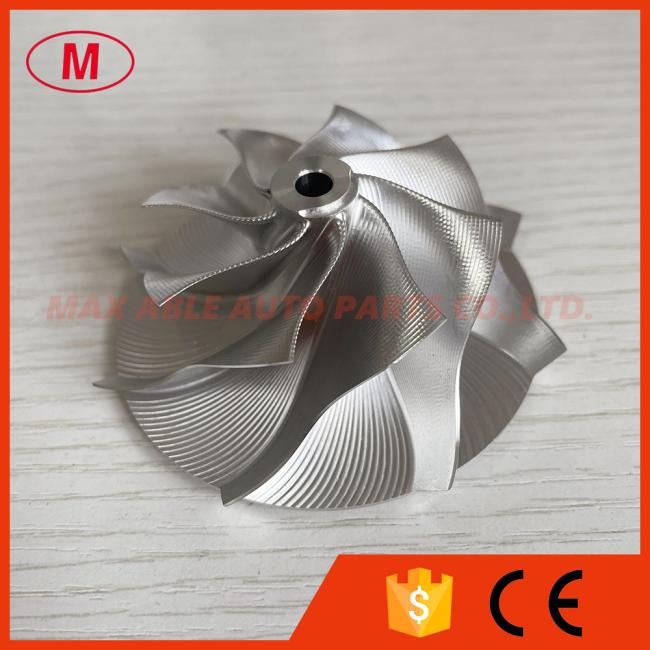

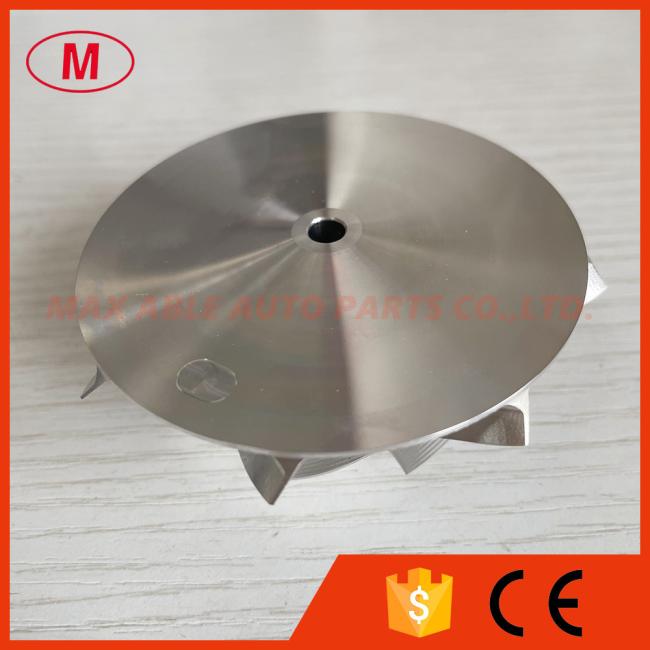

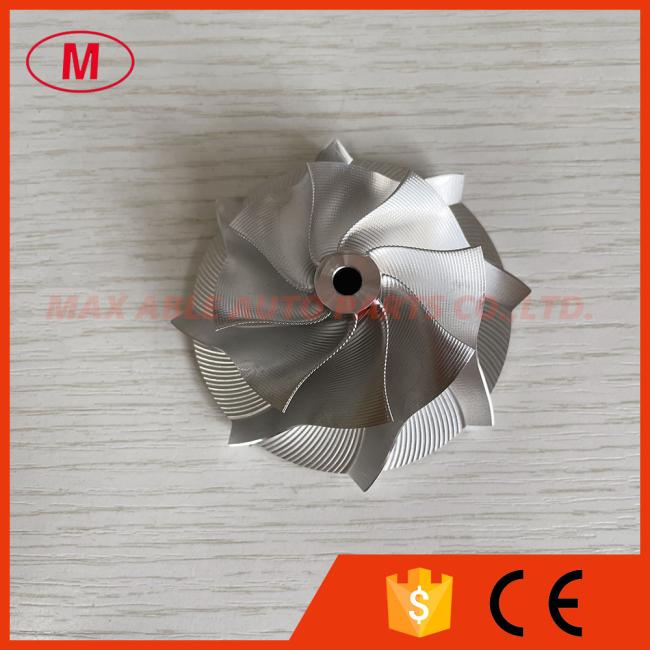

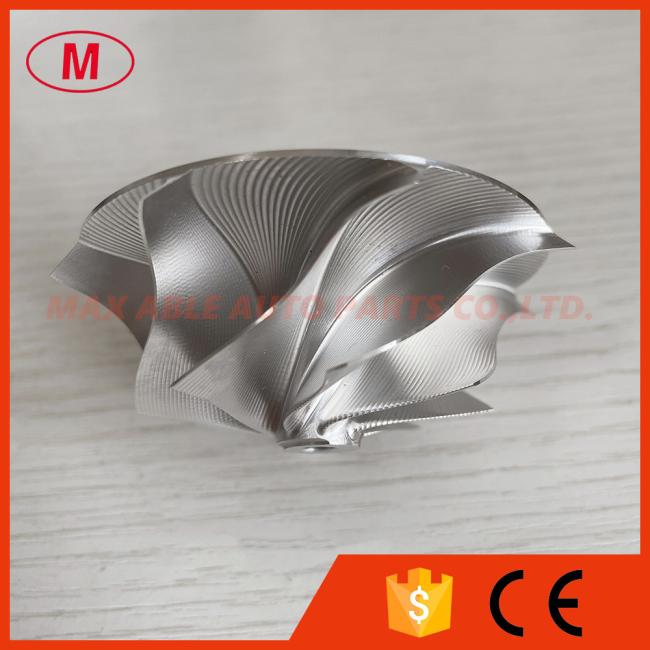

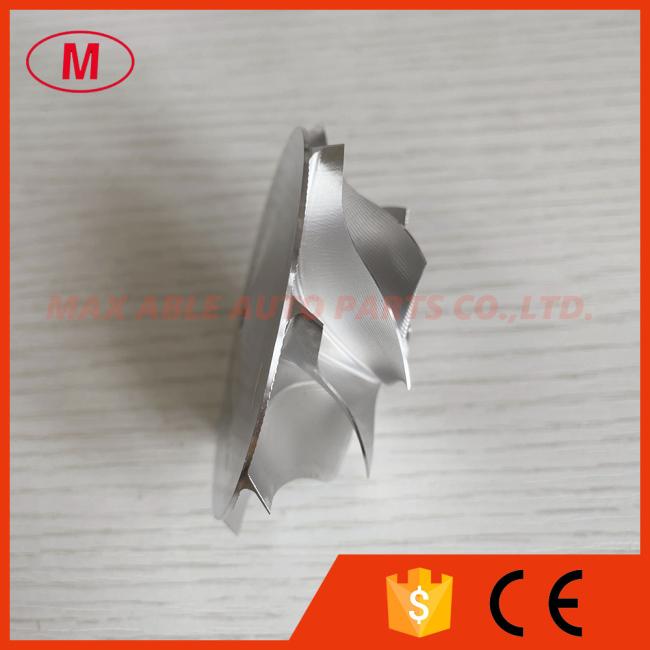

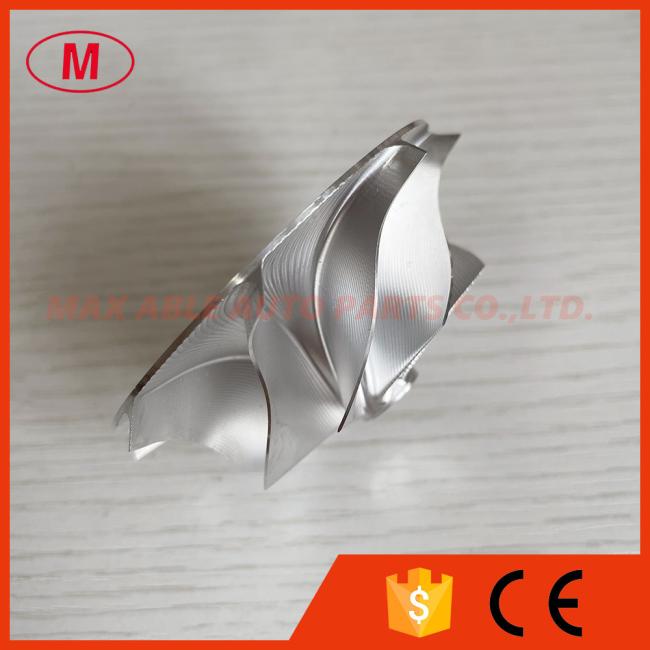

2.TD04 reverse 50.00/67.00mm 8+0 blades Point Milling, Snake Curve,Twisted Blade design, Performance DesignTurbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose Diameter:11.55mm
Inducer:50.00mm
exducer:67.00mm
Tapered tip exducer:73.71mm
Tip height:5.00mm
Superback:1.85mm
bore size :5.00mm
bore type:through
Overall height:29.00mm
Trailing angle:60 degree
Cutback:8.0mm
SP height angle:0.00
Blade height:22.00mm
Splitter height:0.00
8+0 blades reverse
Tapered tip angle:40 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
skype: maxabledieselparts
wchat/whatsapp:+86-18018657719
