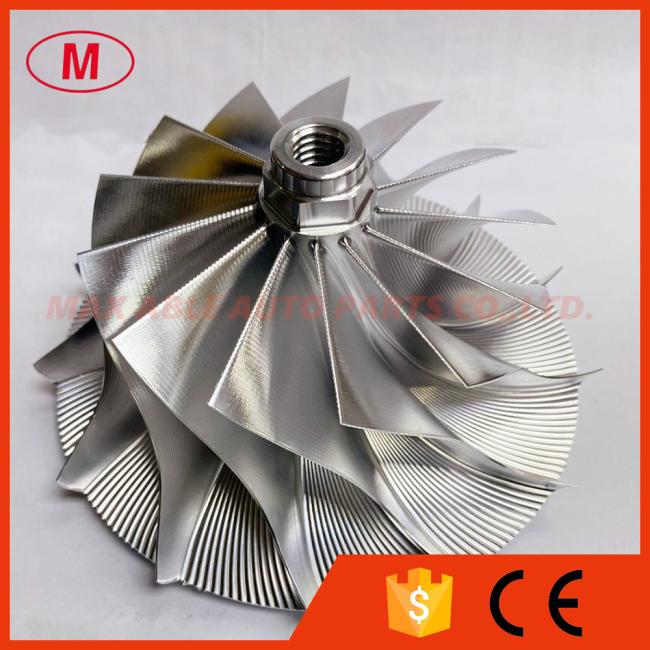

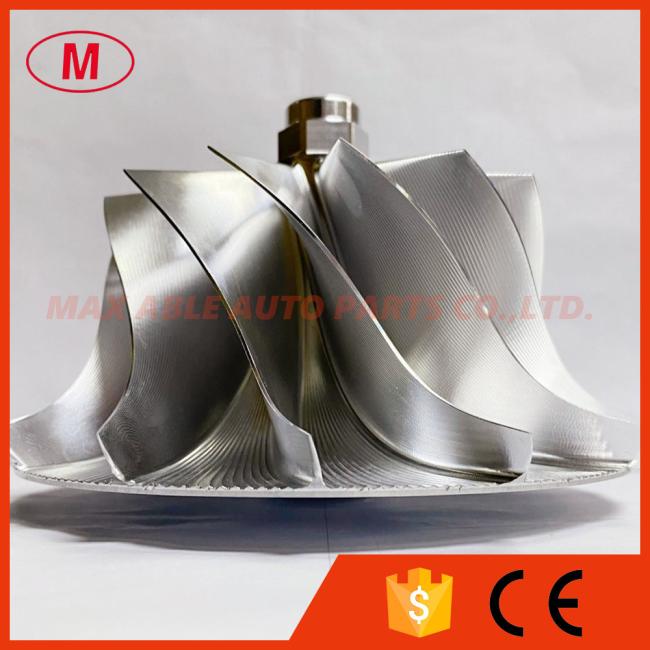

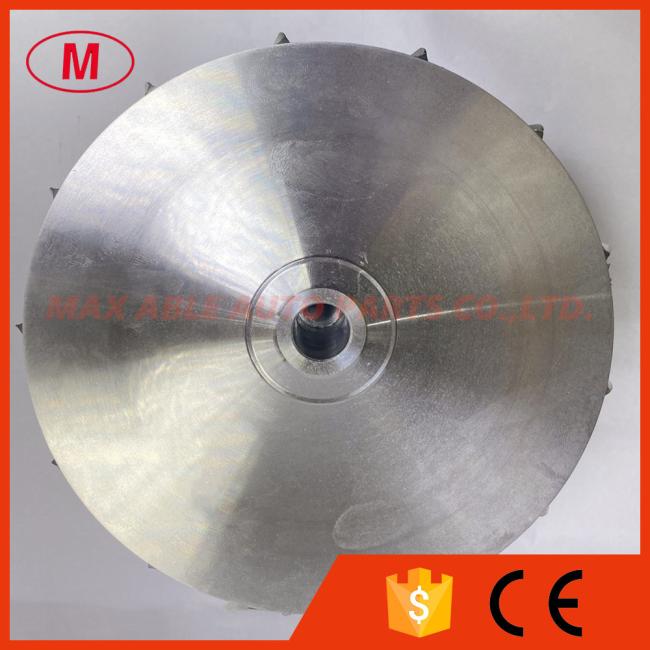

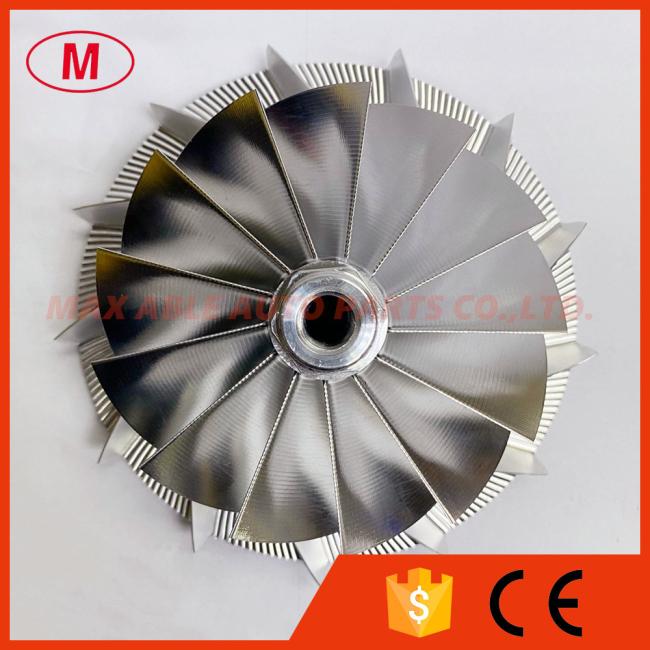

GTX5544R GEN-II forward 871505-0001, 150501-12329 106.50/144.36mm 13+0 Blades point milling billet compressor wheel

1.Model: GTX5544R GEN-II FORWARD

2. GTX5544R GEN-II forward 871505-0001, 150501-12329 106.50/144.36mm 13+0 Blades point milling turbo billet/aluminum 2618/Milling compressor wheel FOR 851285-5022S Supercore 1750 - 2850 PS for 3.0 - 12.0 L
3.Size:

Nose diameter:25.52mm

Inducer:106.50mm

Exducer:144.36mm

Tapered tip exducer:154.00mm

Tip height:8.40mm

Trailing angle:80 degree

Superback:8.30mm

Bore:13.49mm

bore type:Threaded-1/2-13G-LHT

Cutback:7.5mm

Overall height:81.60mm

SP Height angle:0.00

Blades height:58.30mm

Splitter height:0.00mm

13+0 blades

Tapered tip angle:33.65 degree

Forward rotation

It is for OE compressor housing

4.Good quality and competitive price

5.if you want to know more details ,please send email to me !

All the compressor wheels have been balanced.
