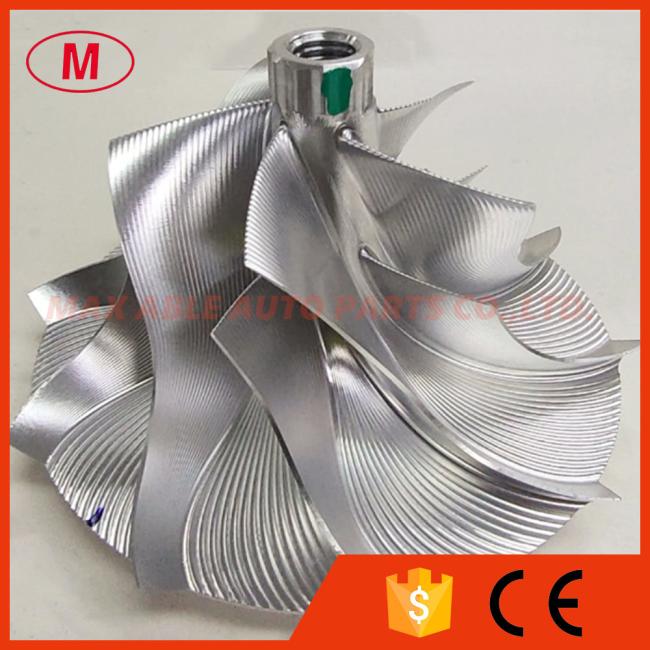

S400 63.55/101.40mm 5+5 blades Point Milling, Performance Design, Dodecagon Nut Turbo billet compressor wheel

1. MODEL:S400 Forward

2. S400 63.55/101.40mm 5+5 blades Point Milling, Performance Design, Dodecagon Nut Turbo Billet/milling/aluminum 2618 compressor wheel .
3.Size:

Nose diameter:15.00mm

Inducer:63.55mm

Exducer:101.44mm

Tapered tip exducer:110.70mm

Tip height:5.65mm

Superback:8.50mm

Overall height:65.00mm

Bore size:10.00mm

bore type:Threaded-M10x1.5-LHT

Trailing angle:60 degree

Overall height:65.00mm

Cutback:10.0mm

SP Height angle:-6.30

Blades height:46.00mm

Splitter height:28.50mm

5+5 blades

Forward rotation

Tapered tip angle:45 degree

It is custom size ,please check carefully before buying

4.High quality and competitive price.

5.Any questions please send email to me

We can produce as your requirement.

All the compressor wheels have been balanced.
