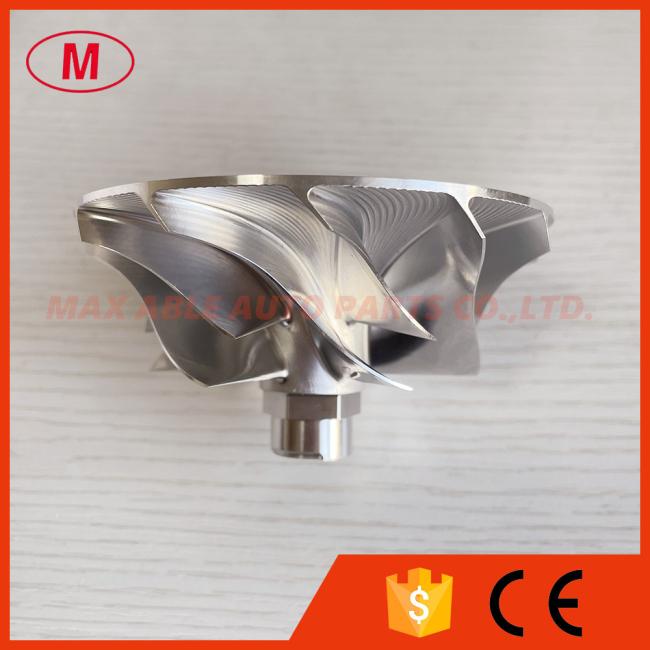

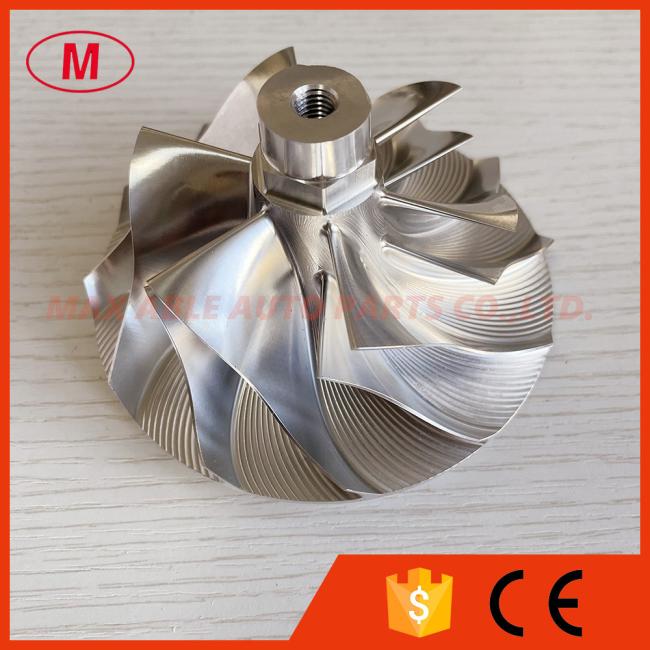

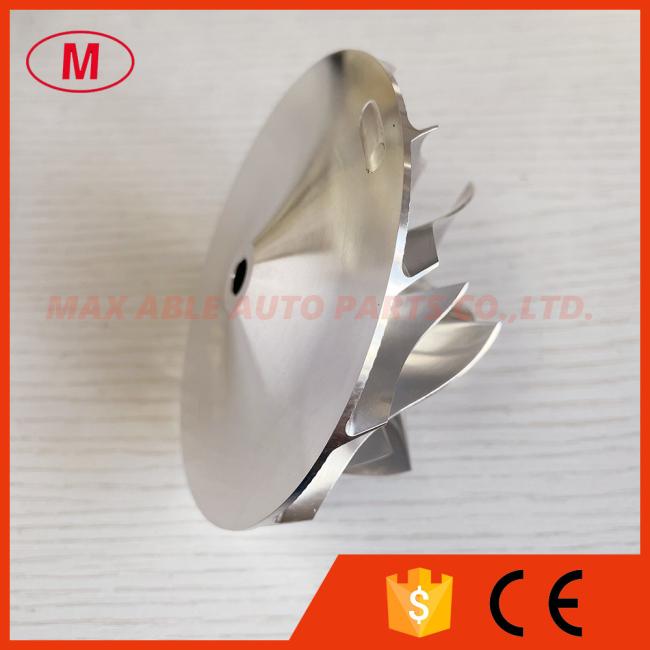

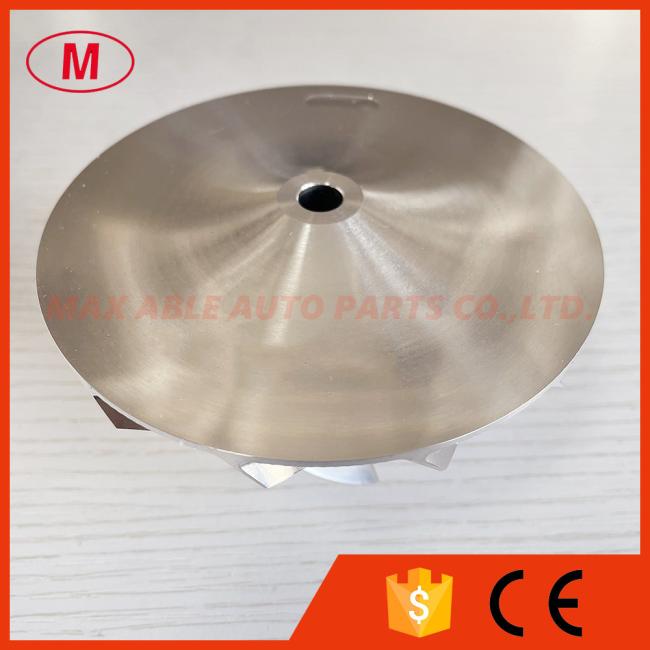

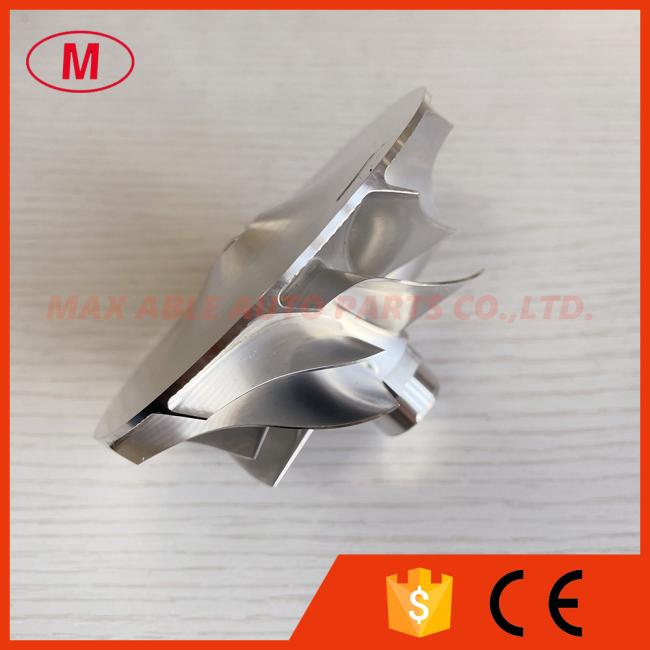

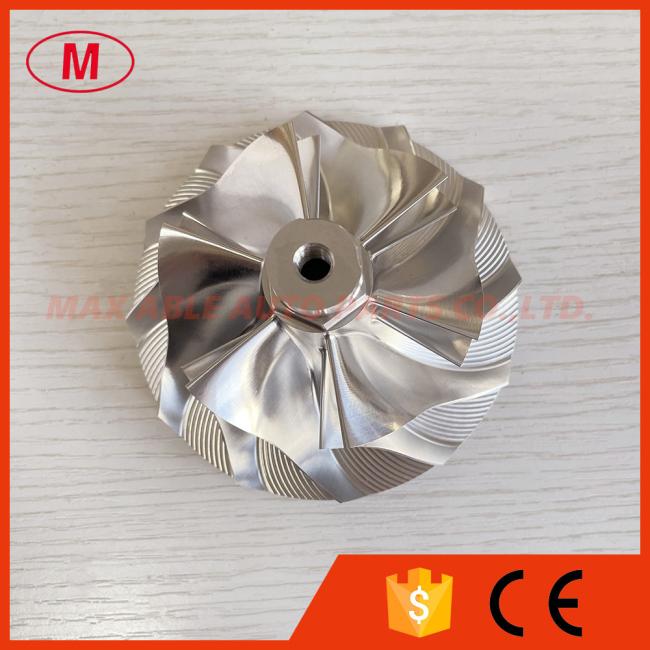

GT3794 1407-0001 67.77/94.00mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for CHEVY 6.6L

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description
1. MODEL:GT3794 forward
2.GT3794 1407-0001 67.77/94.00mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for CHEVY 6.6L PowerMax turbo
Stage 1: 773540-5001s AVNT™
Stage 2: 773542-5001s AVNT™
3.Size:
Nose diameter:22.04mm
Inducer:67.77mm
exducer:94.00mm
Tip height:7.64mm
Superback:5.55mm
bore size :7.48mm
bore type:Threaded-M7x1.0LHT
Overall height:53.50mm
Cutback:0.0mm
Trailing Angle:75-90 degree
Sp height angle:-8.30
Splitter height:23.65mm
Blades height:31.79mm
6+6 blades forward
Fit for OE compressor housing
Tapered tip Angle:0 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
