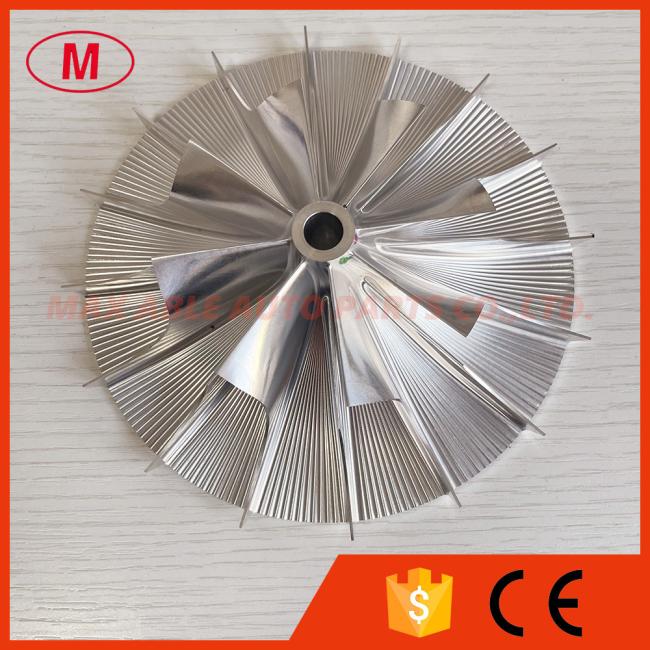

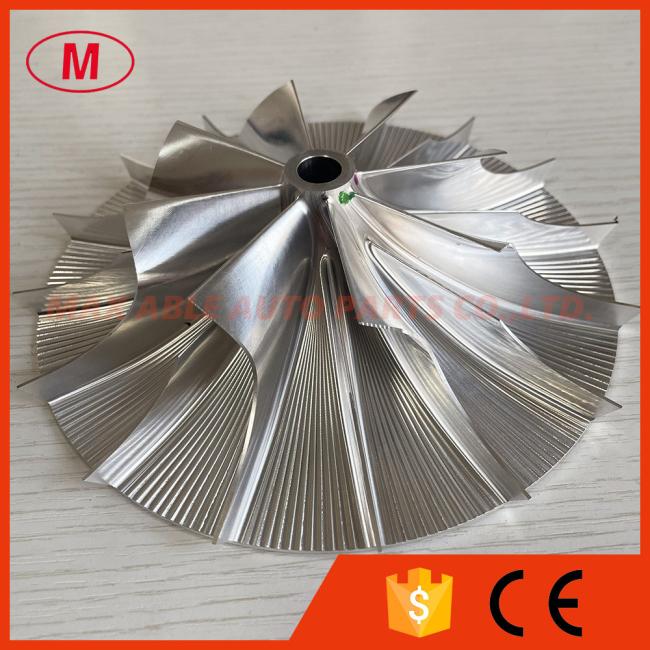

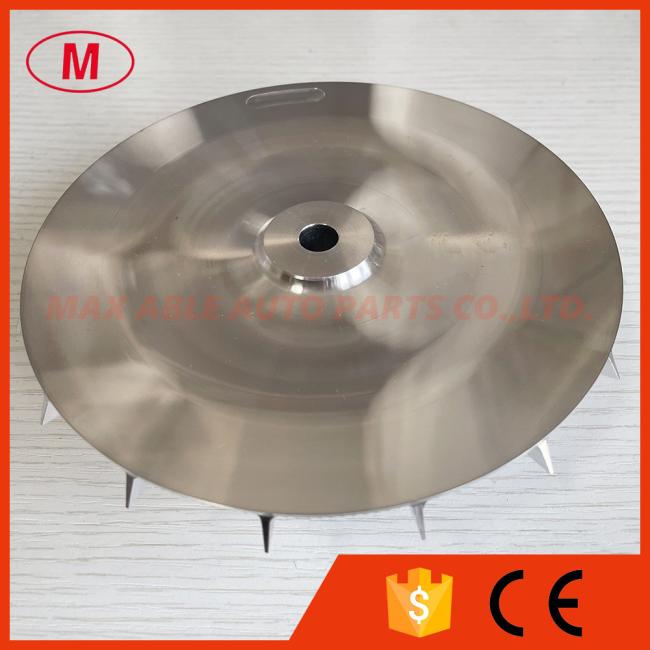

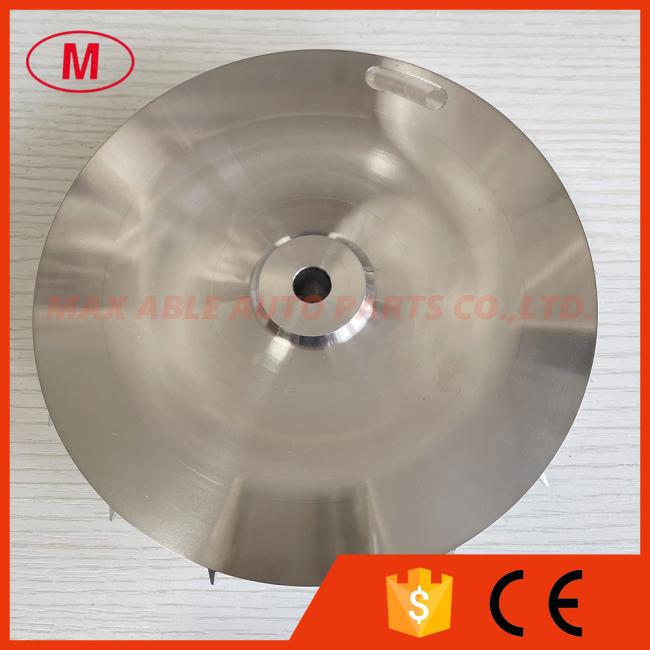

Supercharger 8+8 blades 88.32/146.05mm high performance turbo/milling/aluminum 2618/billet compressor wheel

1.Model:Supercharger forward
2.Supercharger 8+8 blades 88.32/146.05mm high performance turbo/milling/aluminum 2618/billet compressor wheel

3.SIZE:

Nose diameter:16.00mm

inducer:88.32mm

Exducer:146.05mm

Tapered tp exducer:154.37mm

Tip height:8.71mm

Superback:0.78mm

Overall height:36.74mm

bore size :10.00mm

Trailing angle :90 degree

Cutback:0.00mm

Sp height Angle:8.00 degree

Splitter Height:17.65mm

Blade height:33.57mm

8+8 blades

Forward rotation

Tapered tip Angle:30 degree

Fit for OE compressor housing

4.Good quality and competitive price

5.please email to me or talk to me on online ,if you want to know more details.

All the compressor wheel have been balanced.

We can produce as your requirement.
