TD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description
1. MODEL:TD05 Forward

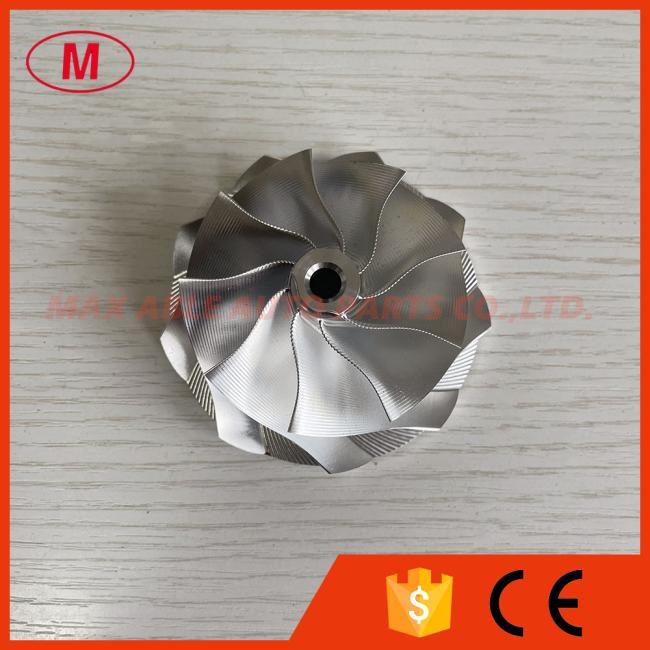

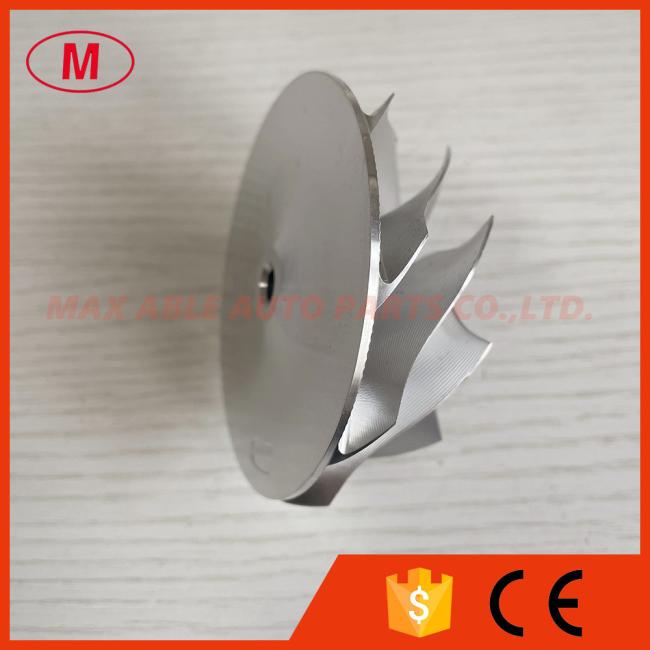

2.TD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:14.10mm
Inducer:61.75mm
exducer:76.60mm
Tapered tip exducer:79.36mm
Tip height:8.15mm
Superback:1.67mm
bore size :6.50mm
bore type:through
Overall height:35.00mm
Cutback:6.50mm
Trailing Angle:35 degree
SP height angle:0.00
Splitter height:0.00mm
Blade height:29.50mm
9+0 blades forward
It is custom size ,please check carefully before buying.
Tapered tip Angle:11.55 degree

4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
