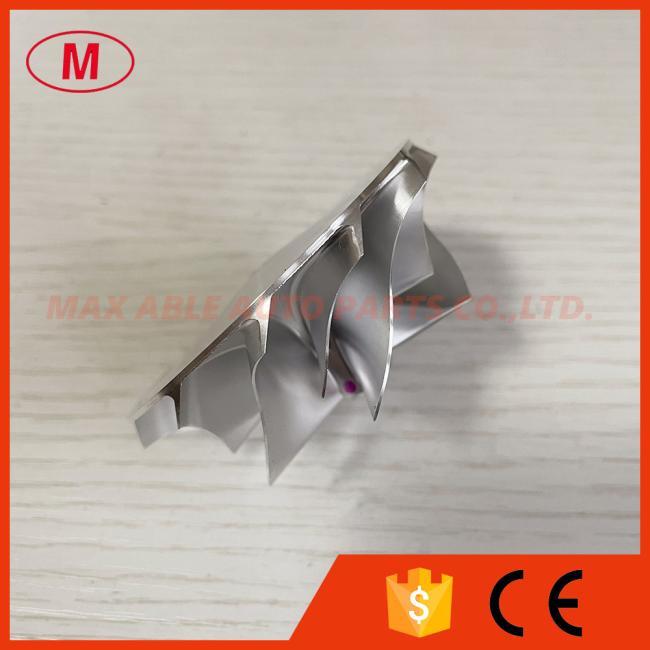

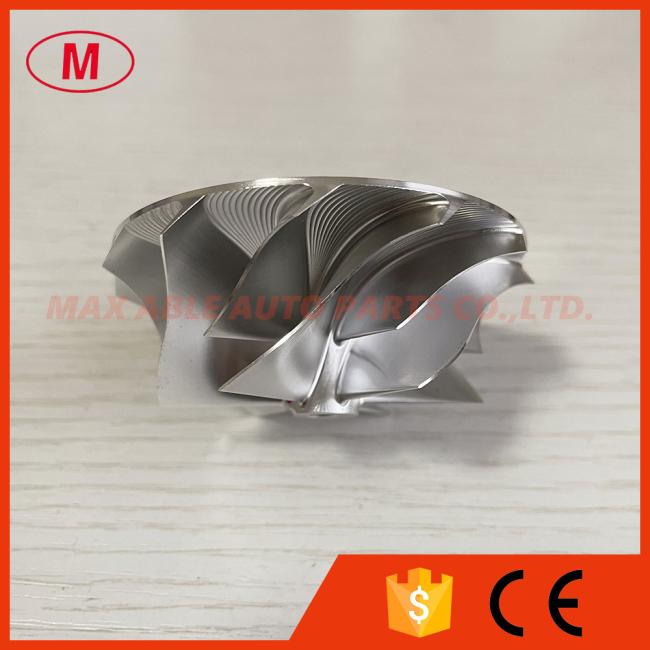

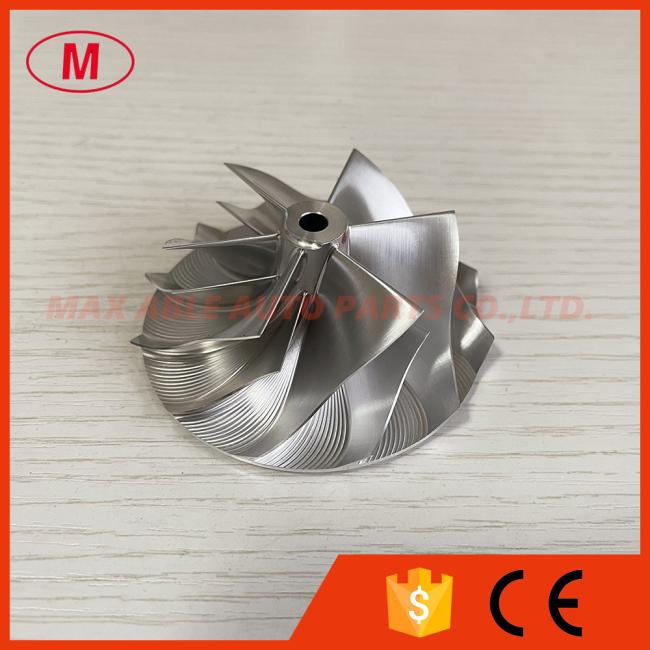

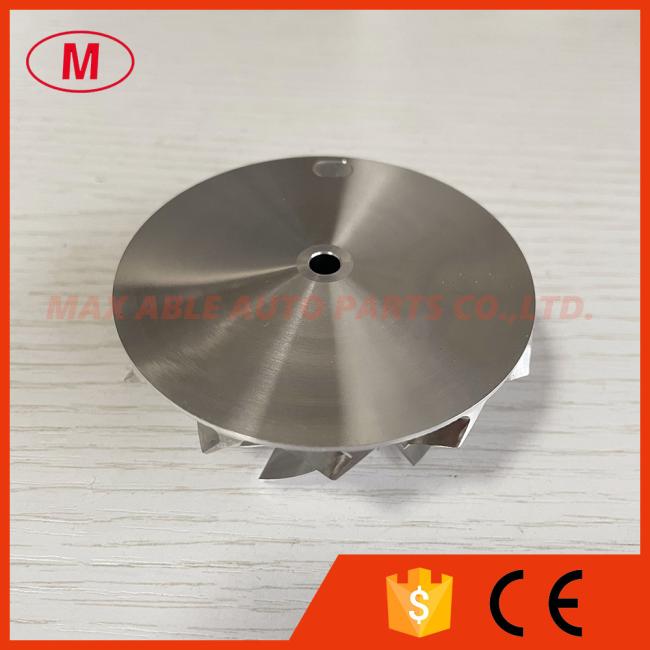

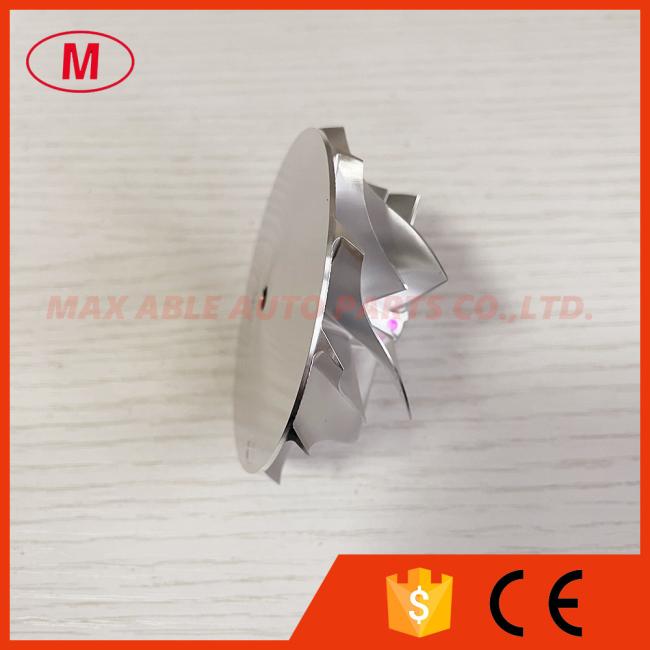

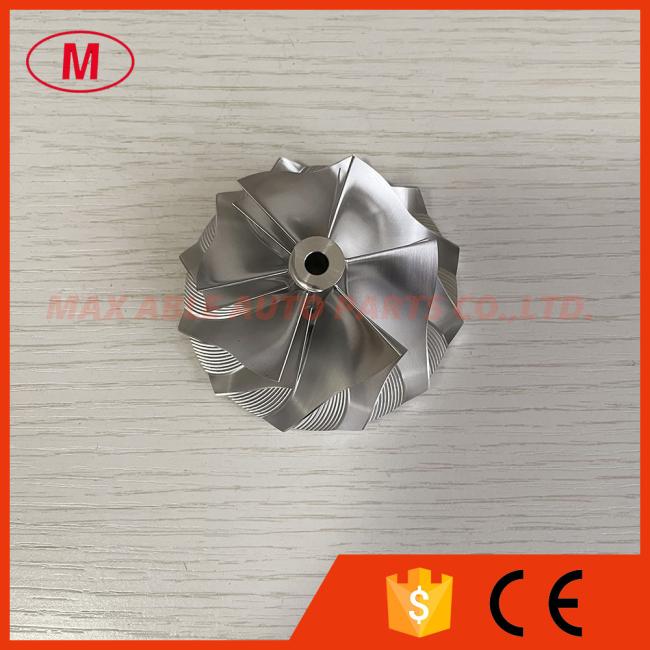

RHF5 reverse 52.56/68.00mm 6+6 blades turbo aluminum 2618/milling/billet compressor wheel

1.  MODEL:RHF5 reverse

2.RHF5 reverse 52.56/68.00mm 6+6 blades turbo aluminum 2618/milling/billet compressor wheel
3.Size:

Nose diameter:12.09mm

Inducer:52.56mm

exducer:68.00mm

Tapered tip exducer:71.02mm

Tip height :5.64mm

superback:1.90mm

Overall height:28.70mm

 Bore size:5.10mm

bore type:through

Trailing Angle:45 degree

Cutback:0.0mm

SP height angle:-5.00

Blade height:25.08mm

Splitter height:17.40mm

6+6 blades

reverse rotation

Tapered tip angle:18 degree

It is custom size ,please check carefully before buying

4.High quality and competitive price.

5.Any questions please send email to me.

All the compressor wheels have been balanced.

We can produce as your requirement.
