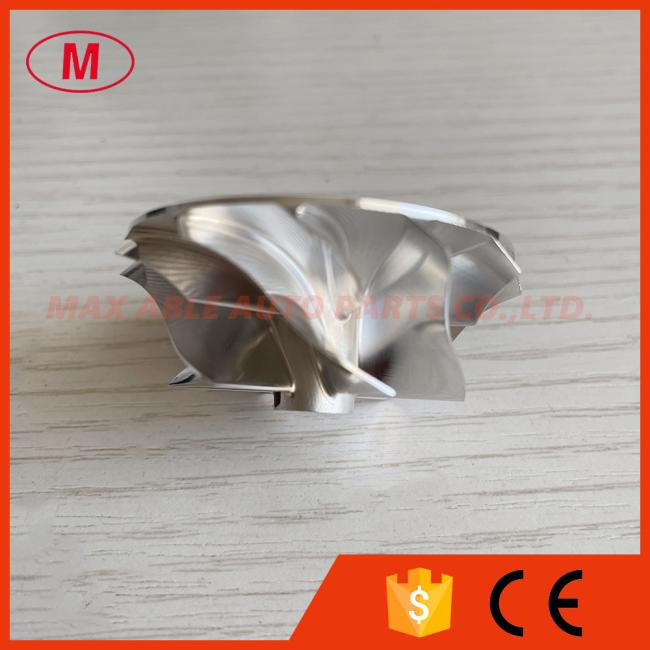

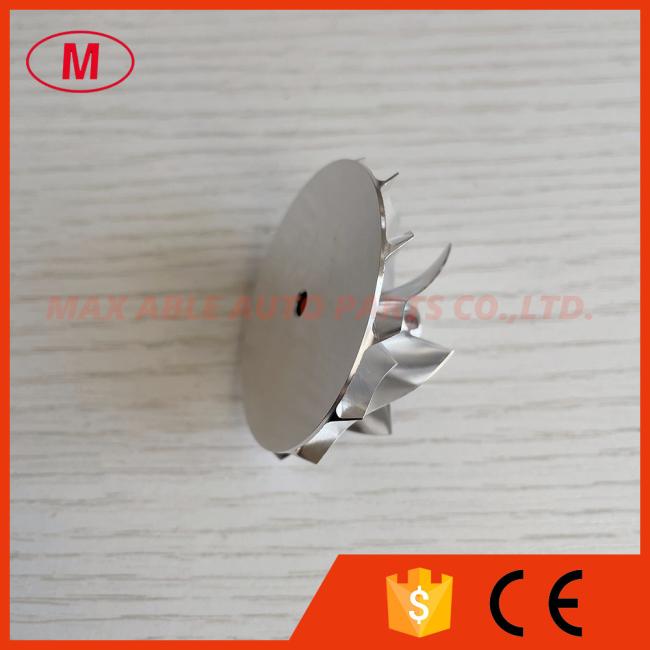

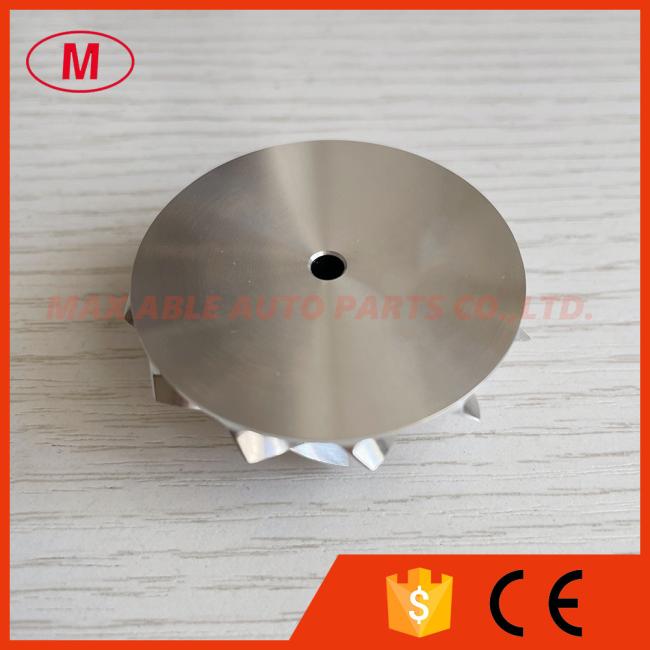

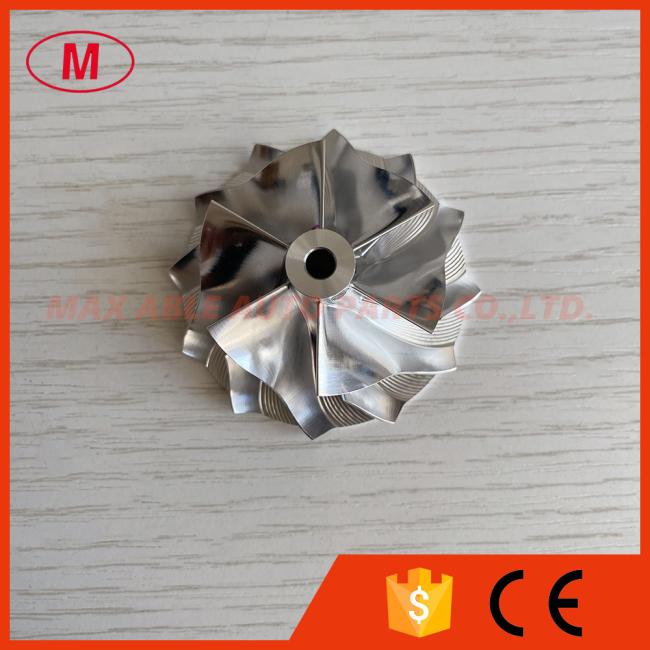

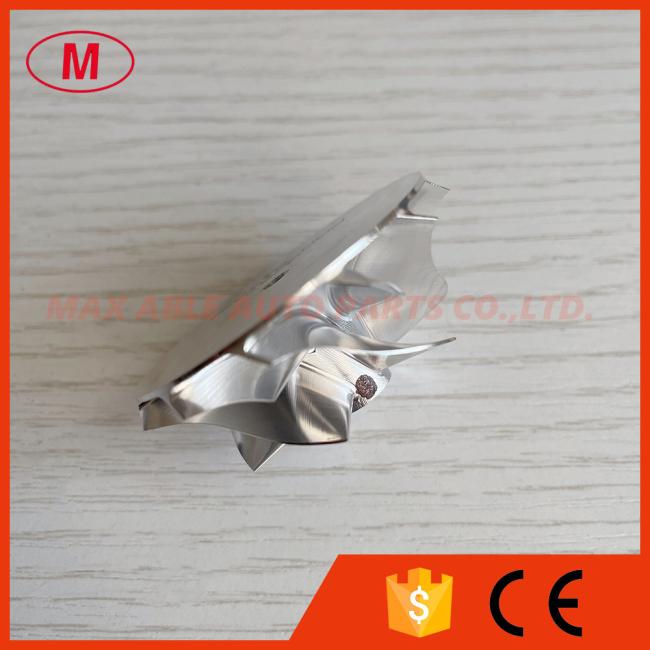

TD02 forward 35.65/46.00mm 6+6 blades high performance Turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:TD02 forward

2.TD02 forward 35.65/46.00mm 6+6 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:9.55mm

Inducer:35.65mm

Exducer:46.00mm

Tapered tip exducer:49.42mm

Tip height:3.96mm

Superback:0.00mm

Overall height:19.53mm

Trailing angle:45 degree

Cutback:0.0mm

blade height:17.50mm

bore size :4.01mm

bore type: through

SP height angle:0.00

Splitter height:8.85mm

6+6 Blades

forward rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced

we can also produce as your requirement.
