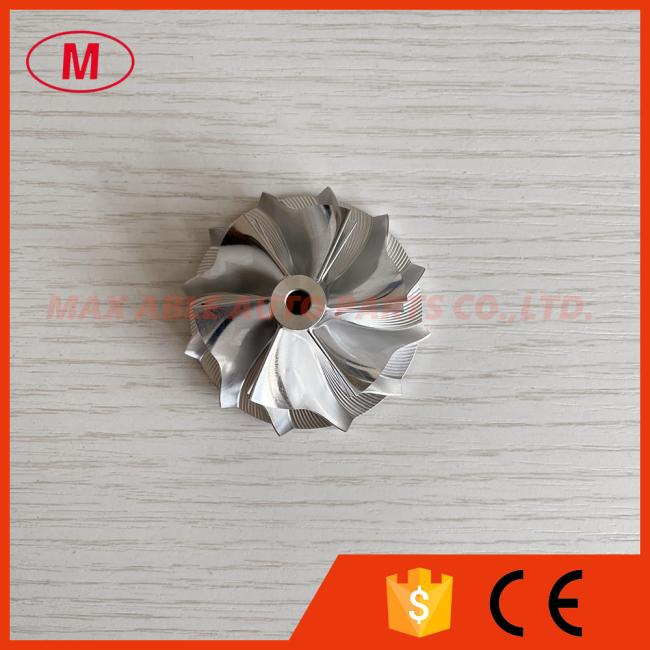

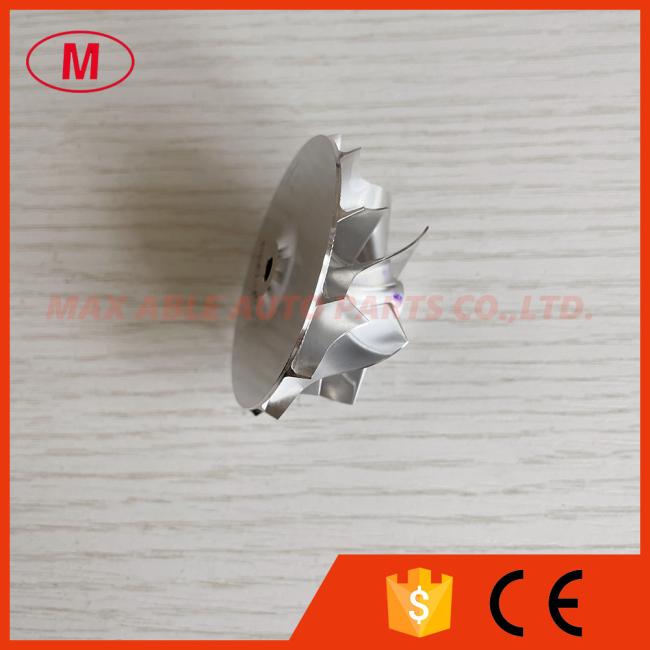

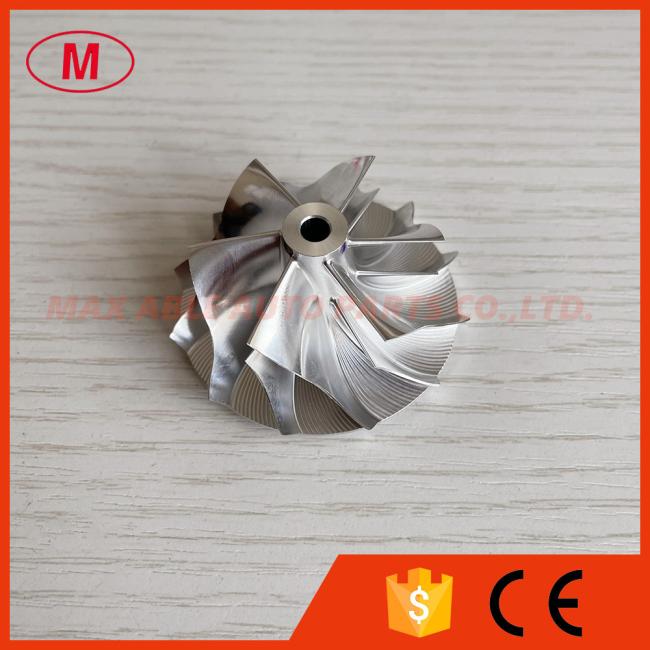

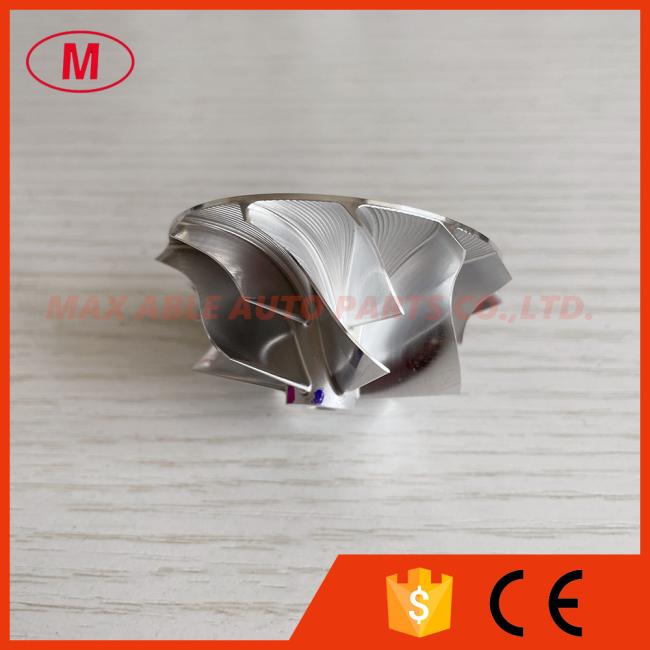

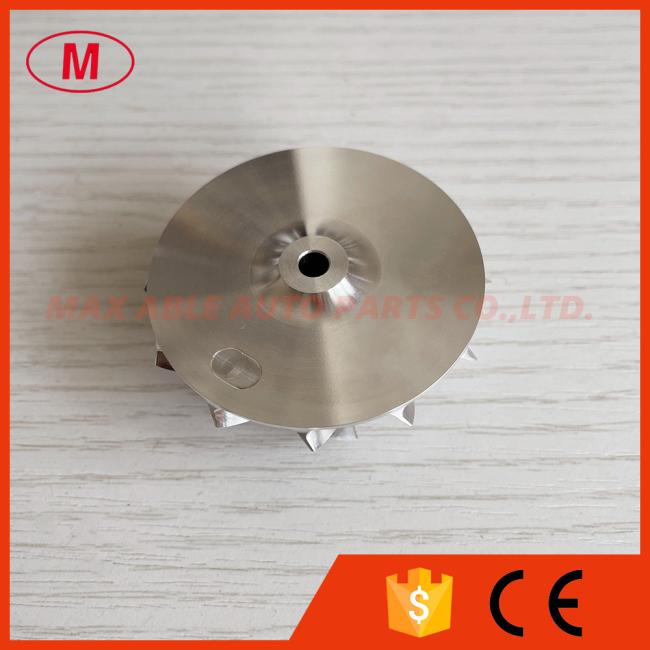

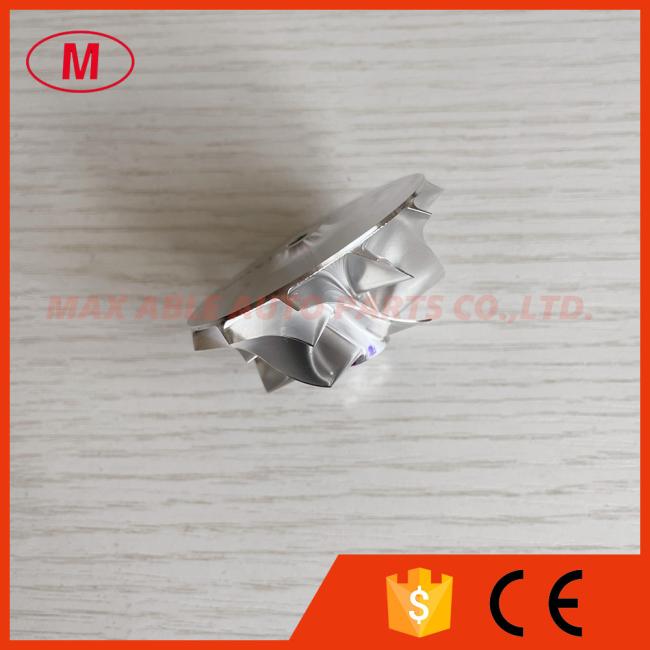

K04 6+6 blades 41.02/50.96mm high performance milling/aluminum 2618/billet compressor wheel for 5303-970-0260/0154/0191

1.Model:K04 forward
2.K04 6+6 blades 41.02/50.96mm high performance billet/milling/aluminum 2618 compressor wheel

for 5303-970-0260/0154/0191/0198/0237/0238/0240/0259/0269/0288/0289 GTDI/FordS-Max/LandRoverRangeRoverEvoque/LandRoverLR2/LandRoverDiscoverySport/Ecoboost Engine:AJ-I4D/B4204T7

3.SIZE:

Nose diameter:10.30mm

inducer:41.02mm

Exducer:50.96mm

Tapered tip exducer:54.59mm

Tip height:4.15mm

Superback:1.80mm

Overall height:25.65mm

bore size :4.61mm

bore type:through

Trailing angle :60 degree

blade height:21.90mm

Cutback:8.00mm

Splitter height:12.20mm

SP height angle:0.00

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying

Application:

5303-970-0260

5303-970-0154

5303-970-0191

5303-970-0198

5303-970-0237

5303-970-0238

5303-970-0240

5303-970-0259

5303-970-0269

5303-970-0288

5303-970-0289

4.Good quality and competitive price

5.please email to me or talk to me on online ,if you want to know more details.

All the compressor wheels have been balanced.

We can produce as your requirement.
