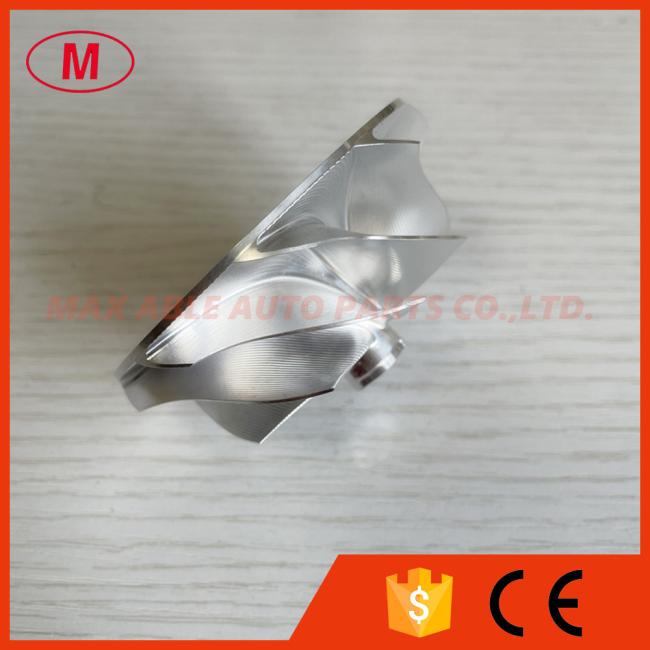

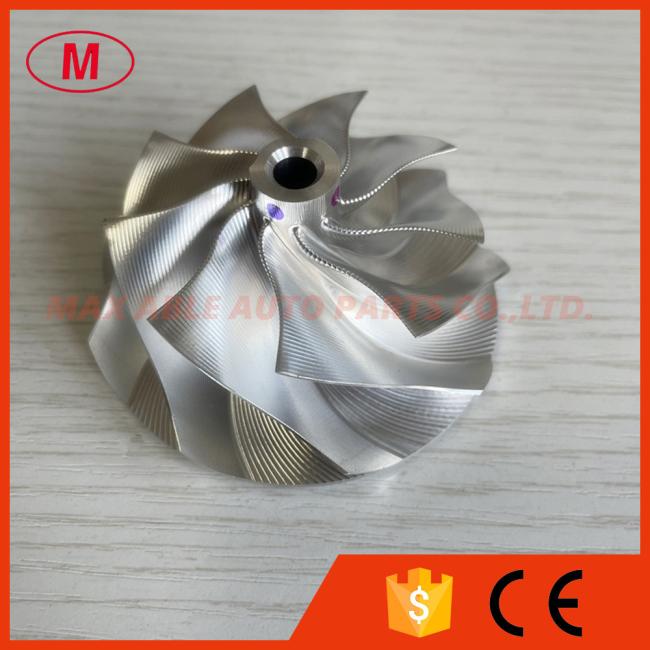

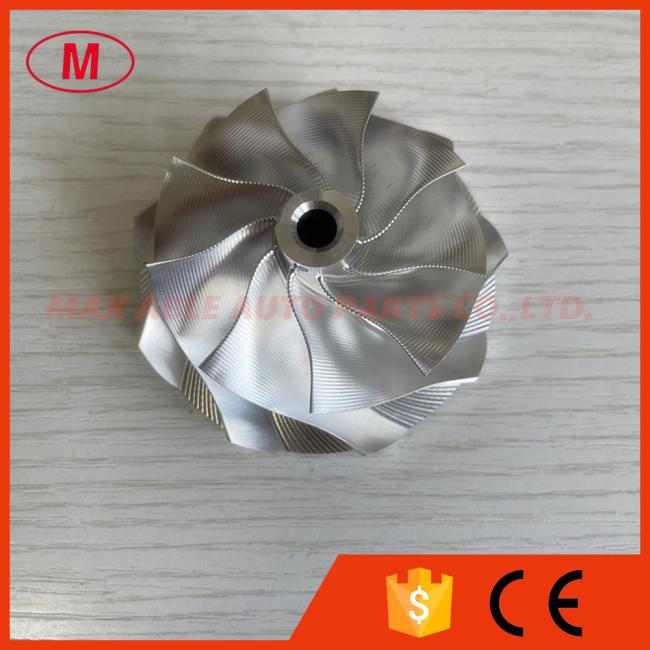

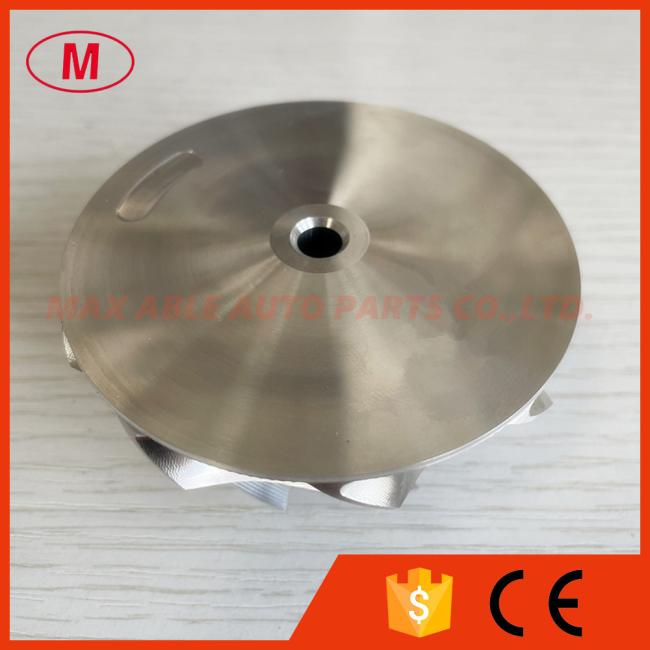

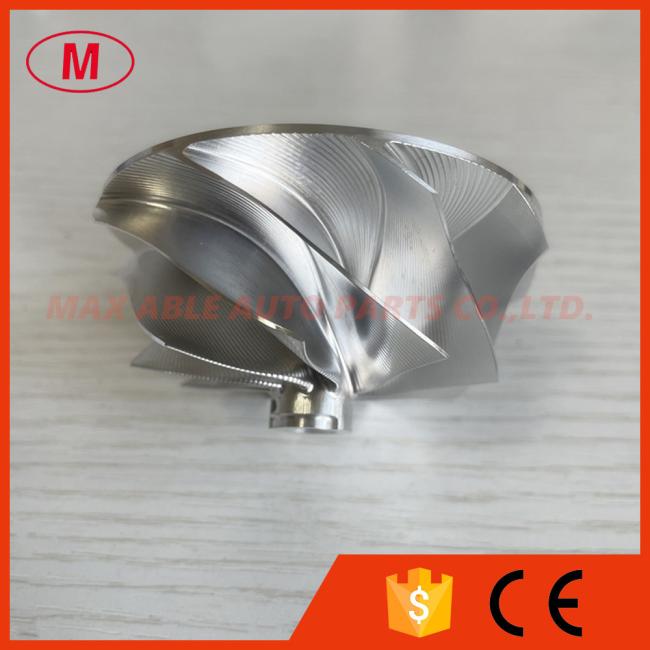

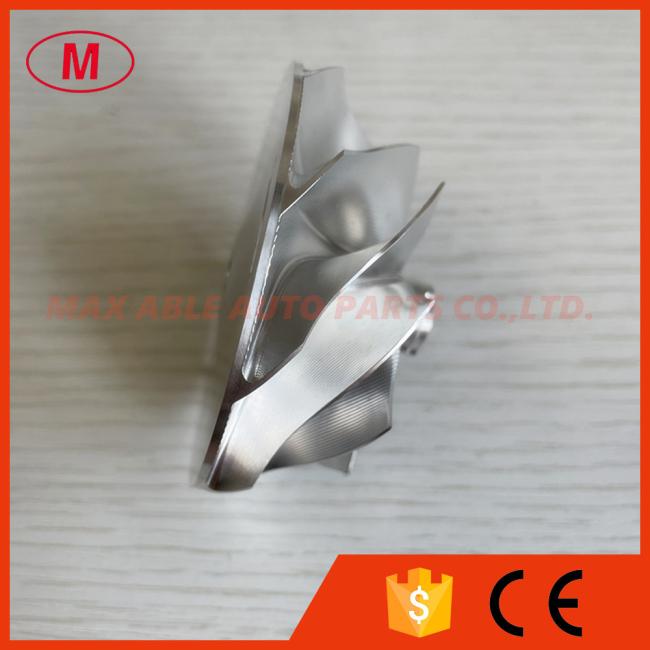

G30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009S
Price:
DISCUSS
MOQ:
1PC
Delivery Time:
3-7 DAYS
Brand:
no
Product Description
1. MODEL:G30-770 forward
2.G30-770 57.52/71.40mm 9+0 blades point milling snake curve Billet/milling/aluminum 2618 compressor wheel for 880693-5002S / 880697-5008S / 880697-5009S/ 880697-5010S/ 880697-5011S
3.Size:
Nose diameter:13.15mm
Inducer:57.52mm
exducer:71.40mm
Tapered tip exducer:73.98mm
Tip height:7.58mm
Superback:1.75mm
bore size :6.35mm
bore type:through
Overall height:35.23mm
Cutback:6.70mm
Trailing Angle:35 degree
SP height angle:0.00
Splitter height:0.00mm
Blade height:27.60mm
9+0 blades forward
Fit for OE compressor housing
Tapered tip Angle:11.4 degree
Application:
880693-5002S / 880697-5008S / 880697-5009S/ 880697-5010S/ 880697-5011S
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement ,the minimun order is 5pcs
All the compressor wheels have been balanced.
