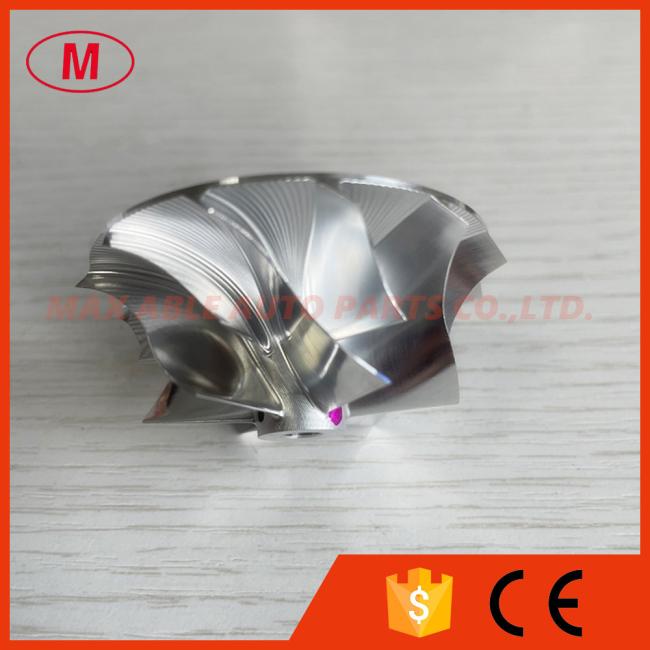

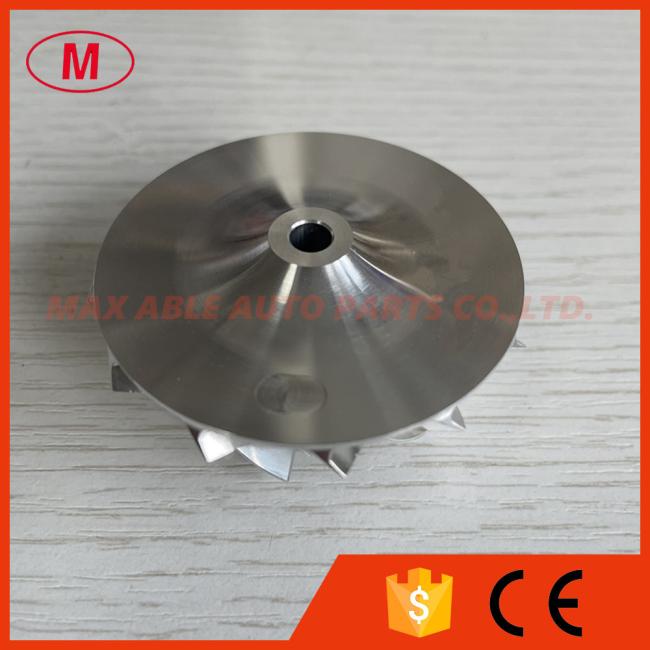

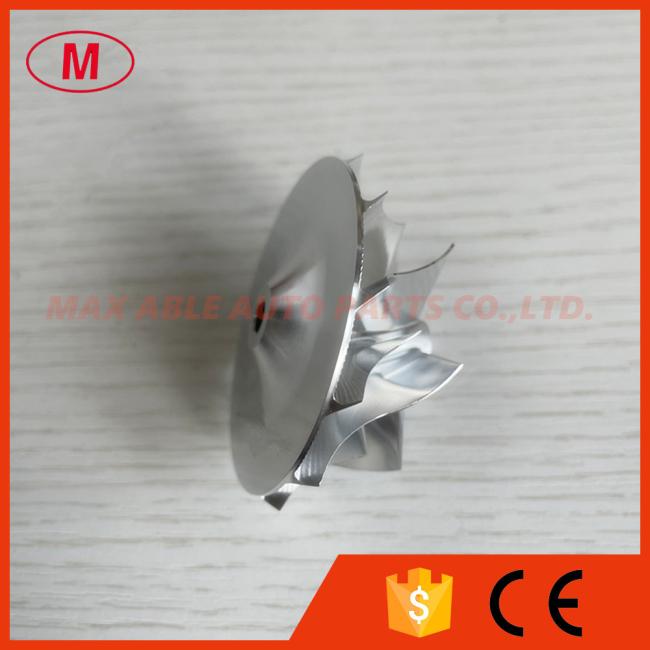

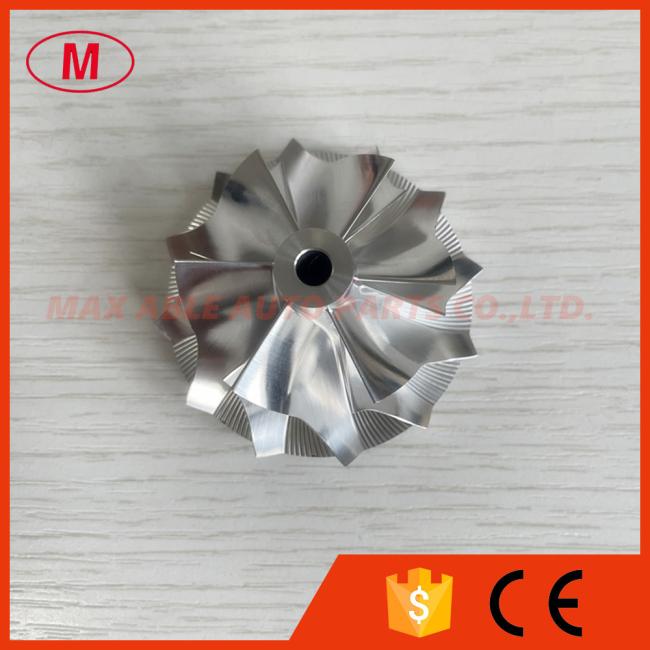

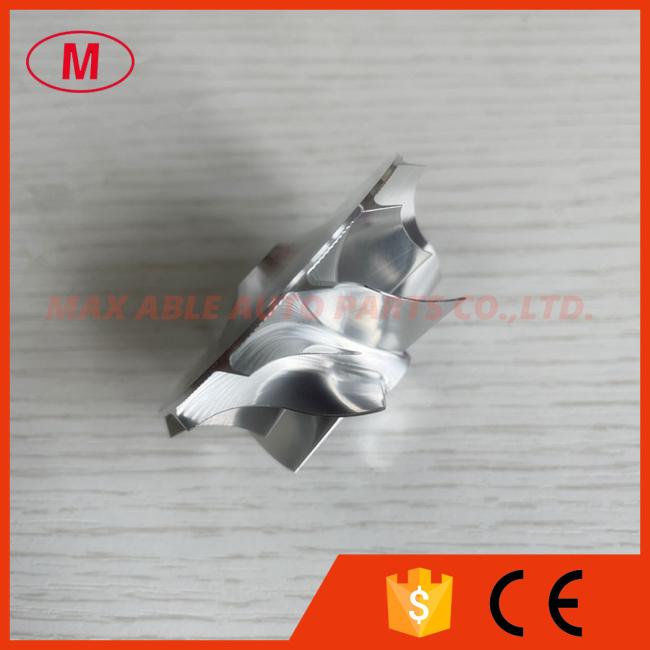

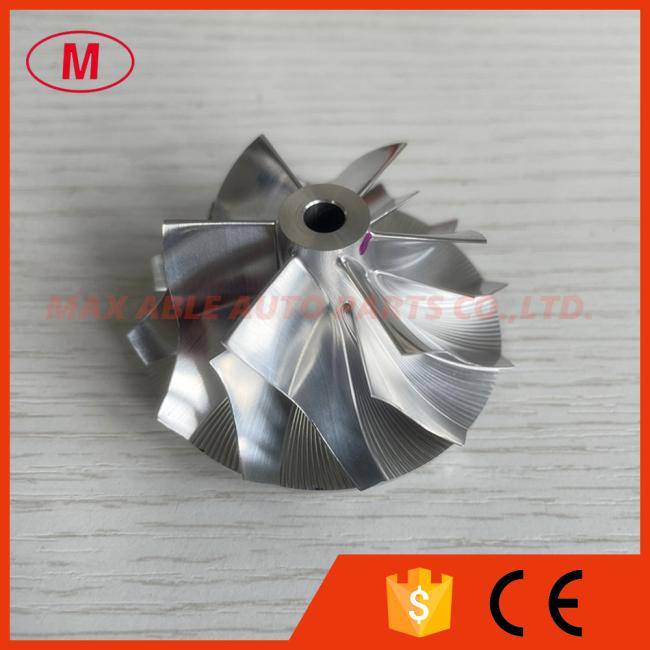

GT1752S 40.27/52.00mm 6+6blades high performance Turbocharger milling/aluminum 2618/billet compressor wheel

1. MODEL:GT1752S forward

2.GT1752S 40.27/52.00mm 6+6blades high performance Turbocharger milling/aluminum 2618/billet compressor wheel for Twin: Big Turbo, 810356-0001, 810356-0002, 810356-0006, 810356-0007, 810356-0008, 810357-0001, 810357-0002, 810357-0006, 810357-0007, 810357-0008, 810358-0001, 810358-0002, 810358-0003, 810358-0004, 810358-0005, 810358-0006, 810358-0007, 810358-0008 Mazda SH01 SKYACTIV-D, 2.2D engine. Mazda 6, CX-5
3.Size:

Nose diameter:11.45mm

Inducer:40.27mm

Exducer:52.00mm

Tapered tip exducer:55.45mm

Tip height:3.99mm

Superback:3.90mm

Bore:5.08mm

bore type:through

Overall height:27.00mm

Trailing Angle:45 degree

Cutback:3.3mm

Blades height:21.10mm

Splitter height:13.20mm

SP Height angle:-0.50

Tapered tip Angle:30 degree

6+6 blades

Forward rotation

Tapered tip Angle:30 degree

It is for OE Compressor housing

4.High quality and competitive price.

5.Any questions please send email to me

Application:

Twin: Big Turbo, 810356-0001, 810356-0002, 810356-0006, 810356-0007, 810356-0008, 810357-0001, 810357-0002, 810357-0006, 810357-0007, 810357-0008, 810358-0001, 810358-0002, 810358-0003, 810358-0004, 810358-0005, 810358-0006, 810358-0007, 810358-0008
