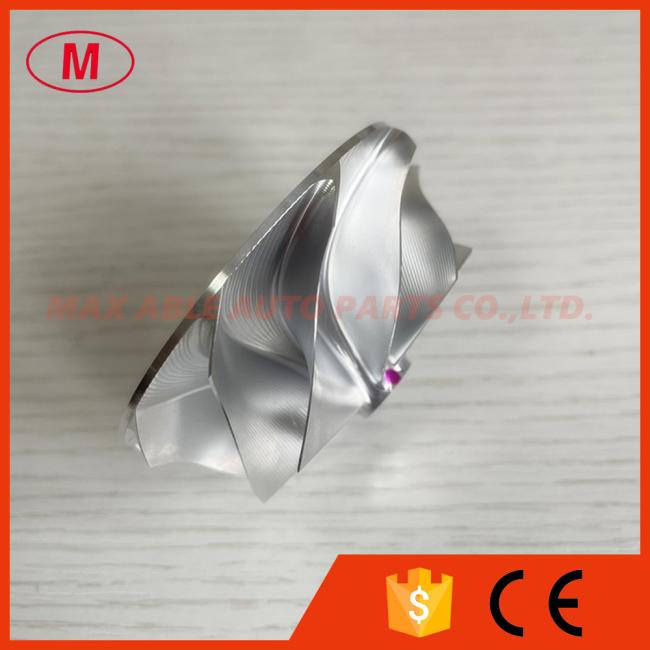

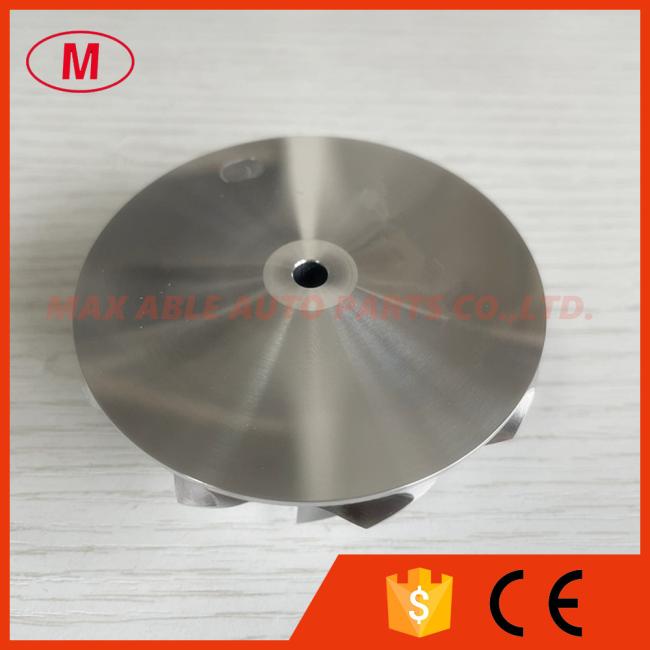

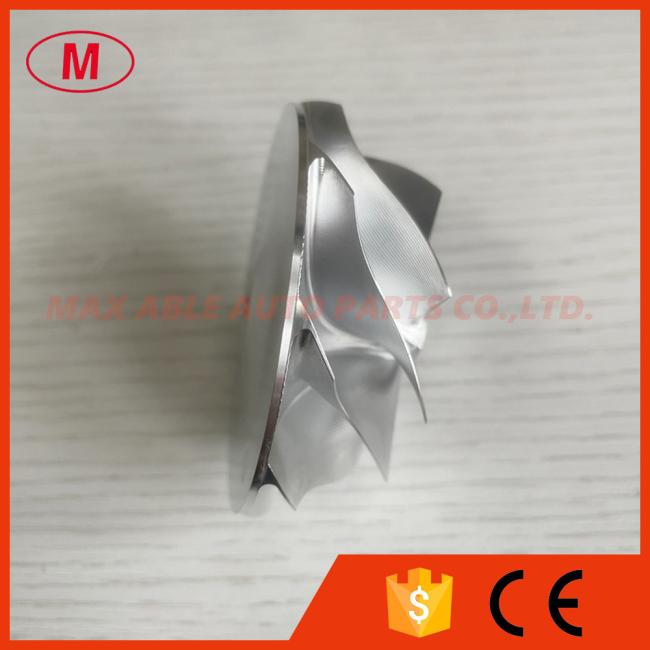

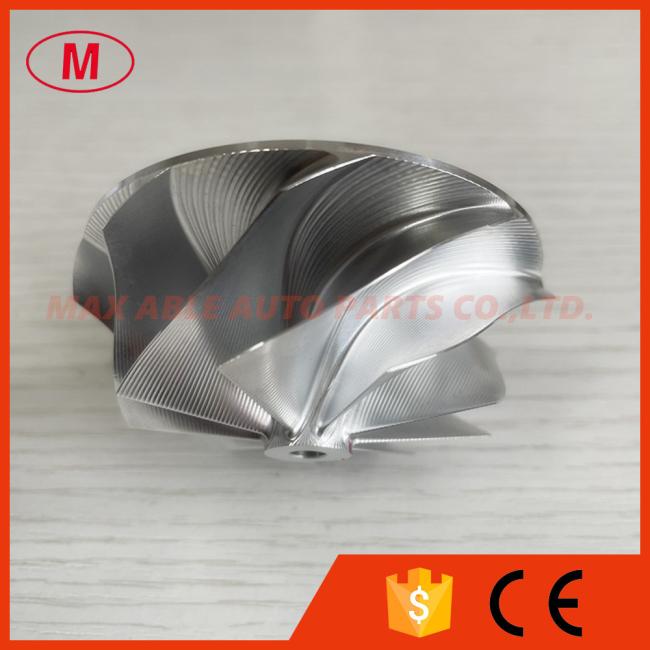

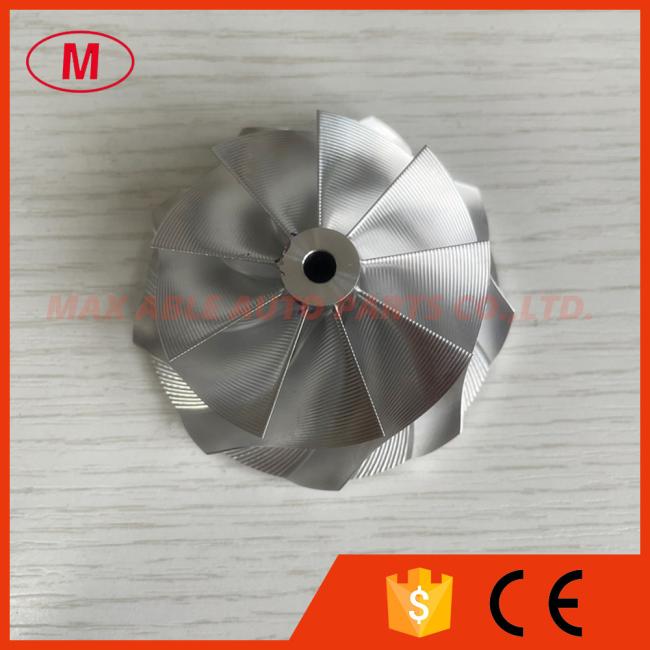

TD04 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description

1.Model:TD04 reverse

2. TD04 reverse 54.28/67.40mm 9+0 Blades point milling turbo billet/aluminum 2618/Milling compressor wheel
3.Size:

Nose diameter:12.40mm

Inducer:54.28mm

Exducer:67.40mm

Tapered tip exducer:69.80mm

Tip height:7.17mm

Trailing angle:35 degree

Superback:1.90mm

Bore:5.00mm

bore type:through

Cutback:6.6mm

Overall height:30.00mm

SP Height angle:0.00

Blades height:26.05mm

Splitter height:0.00mm

9+0 blades

Tapered tip angle:11.4 degree

reverse rotation

It is custom size ,please check carefully before buying.



4.Good quality and competitive price

5.if you want to know more details ,please send email to me !



All the compressor wheel have been balanced.
