RHF5 forward 47.00/60.50mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Product Description

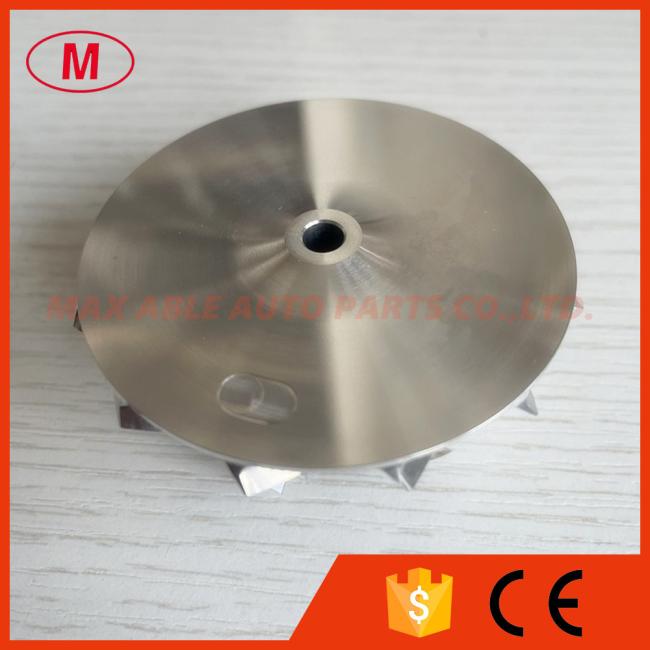

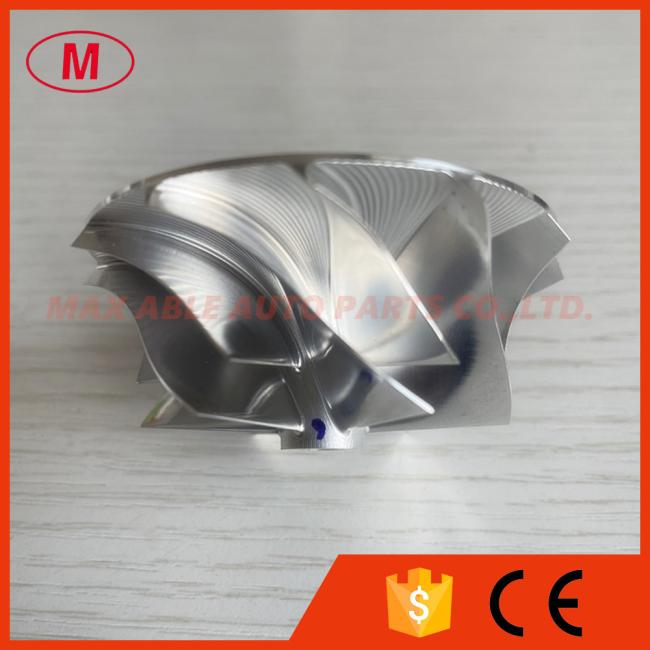

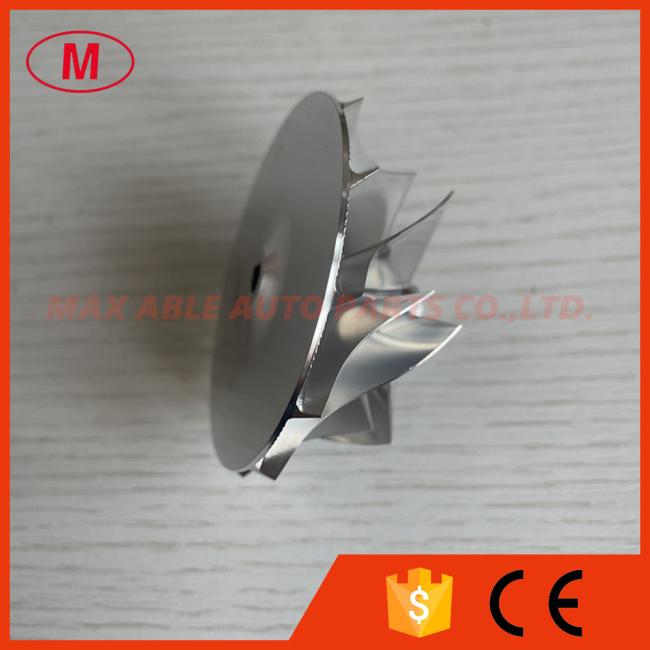

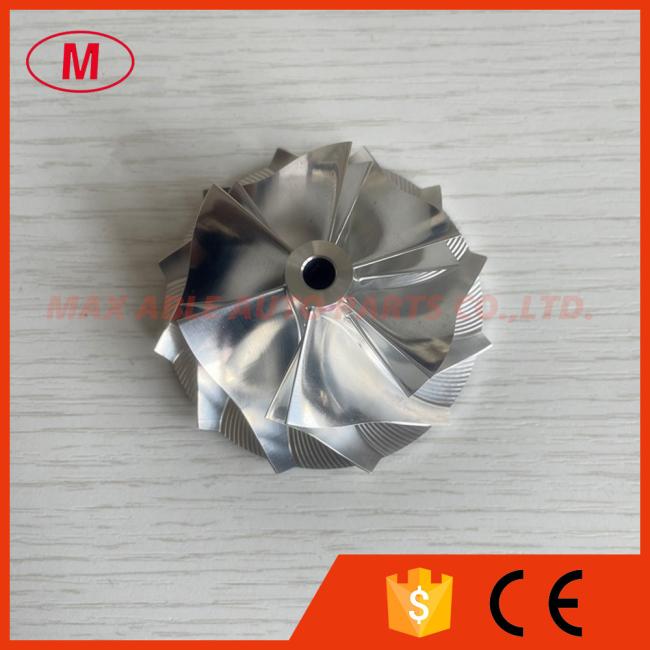

1. MODEL:RHF5 forward

2. RHF5 forward 47.00/60.50mm 6+6 blades high performance turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:

Nose diameter:10.61mm

Inducer:47.00mm

exducer:60.50mm

Tapered tip exducer:64.07mm

Tip height:4.09mm

Superback:1.53mm

Overall height:27.75mm

Bore size:5.10mm

bore type:through

Trailing angle:50 degree

Cutback:3.0mm

SP Height angle:-5.50

BladeS height:24.22mm

Splitter height:18.20mm

6+6 blades

forward rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying.

We also have many other sizes,please don't hestitate to contact me.



All the compressor wheel have been balanced.
