TD04H 19T 46.02/58.00mm 11+0 blades Small Nose, Slim Hub Turbocharger milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 3-7 days after payment
Brand: no
Product Description
1. MODEL:TD04H 19T forward

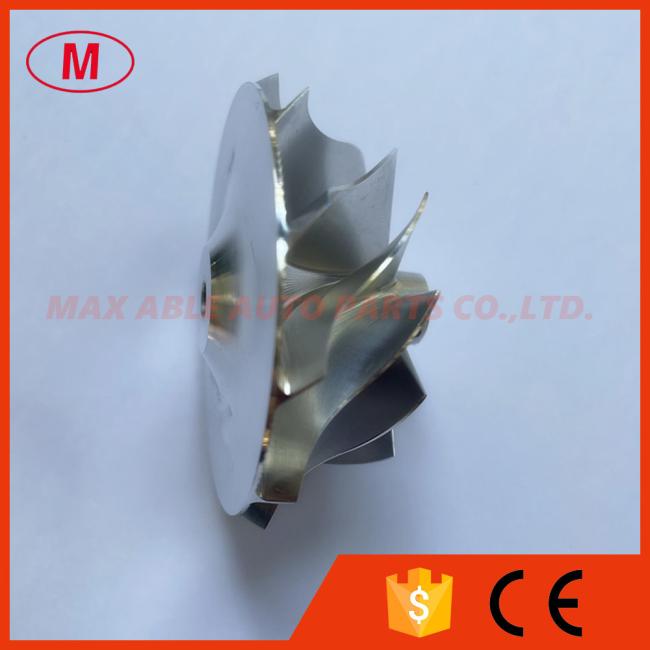

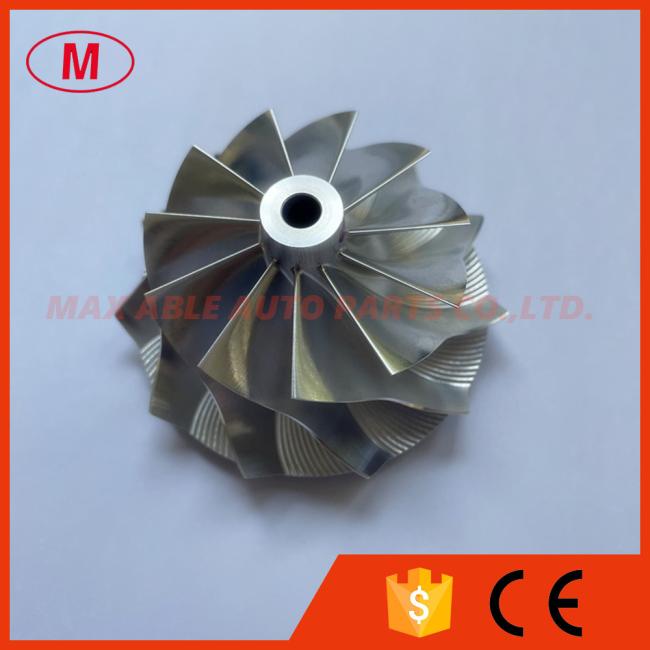

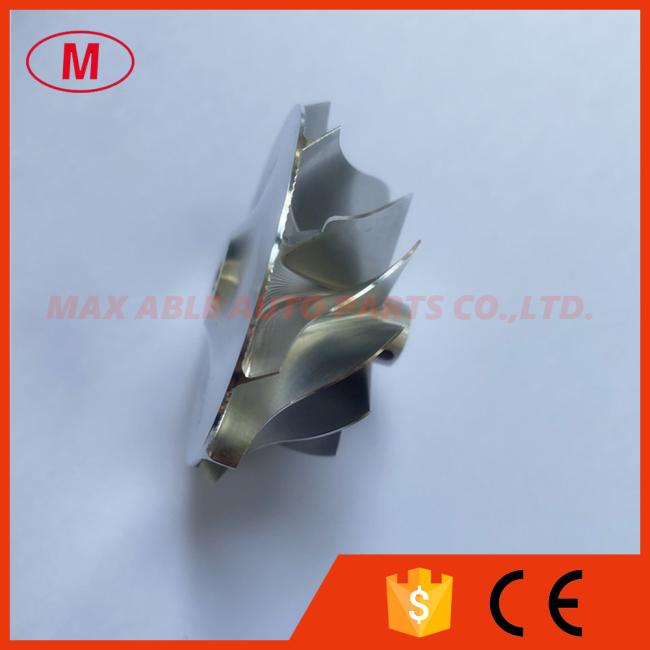

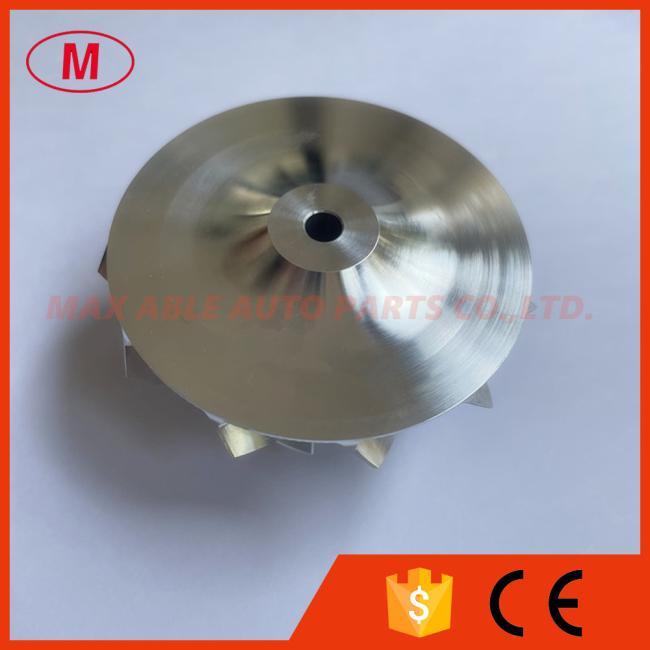

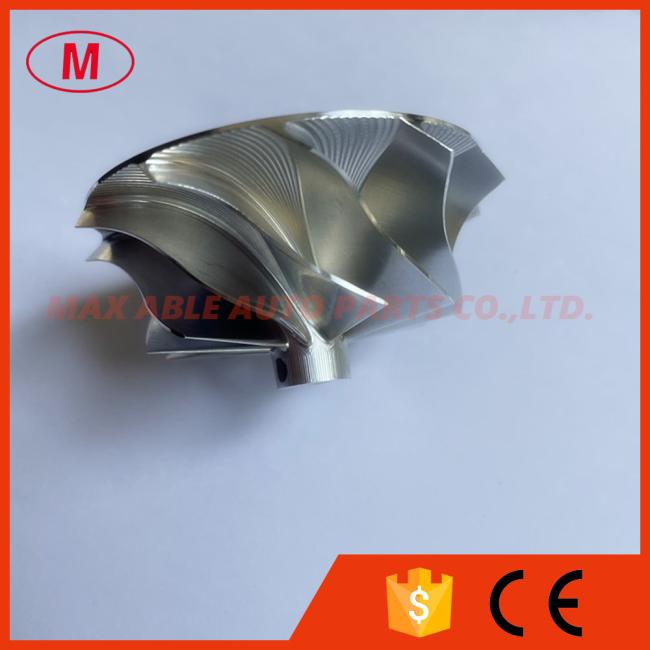

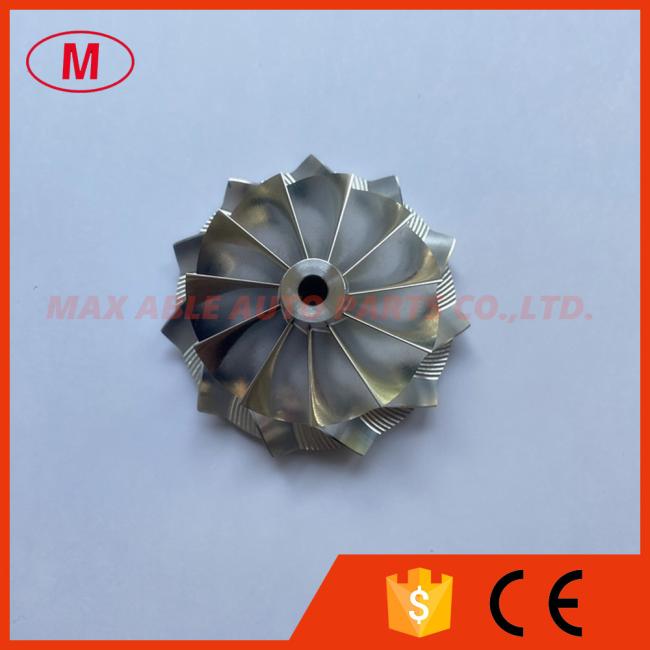

2.TD04H 19T 46.02/58.00mm 11+0 blades Small Nose, Slim Hub Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.00mm
Inducer:46.02mm
exducer:58.00mm
Tapered tip exducer:62.58mm
Tip height:4.97mm
Superback:3.70mm
Overall height:32.00mm
bore size :5.00mm
Bore type:through
Trailing angle:45 degree
Cutback:0.0mm
SP Height angle:0.00
Blades height:22.75mm
Splitter height:0.00mm
11+0 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
