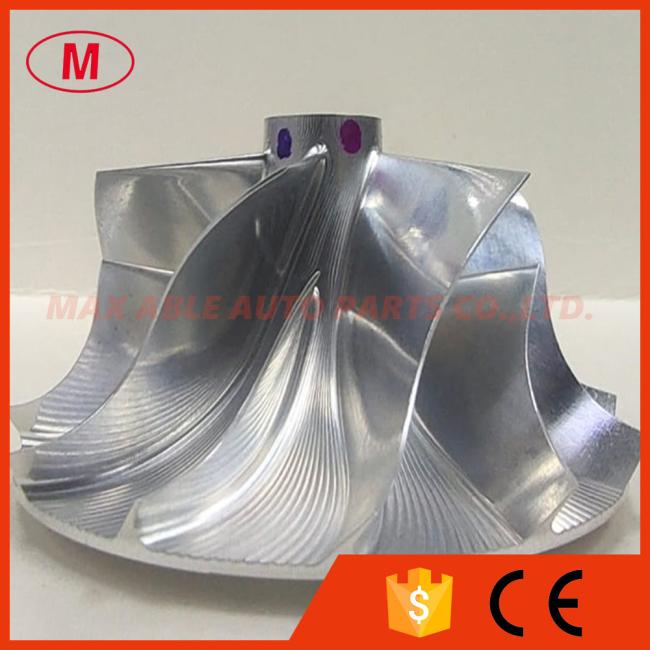

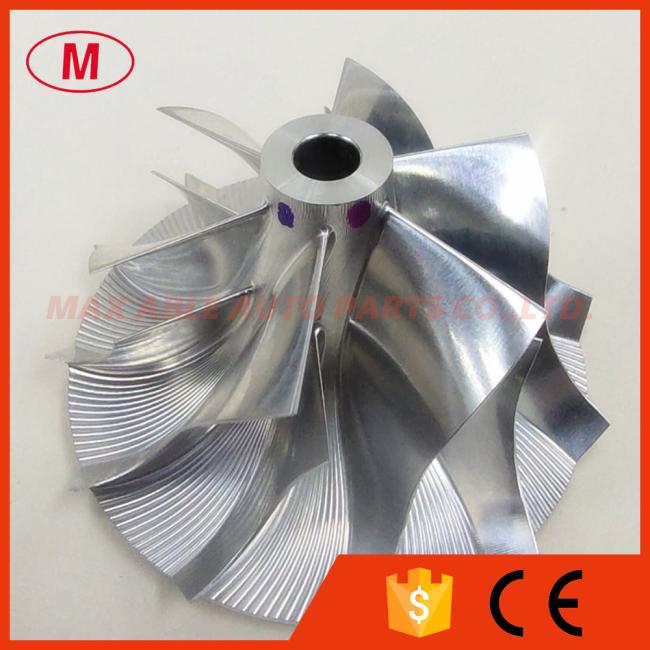

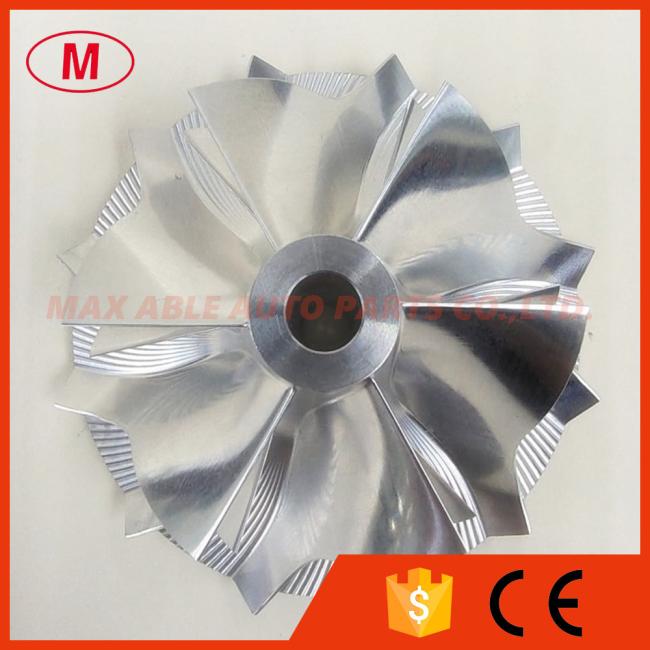

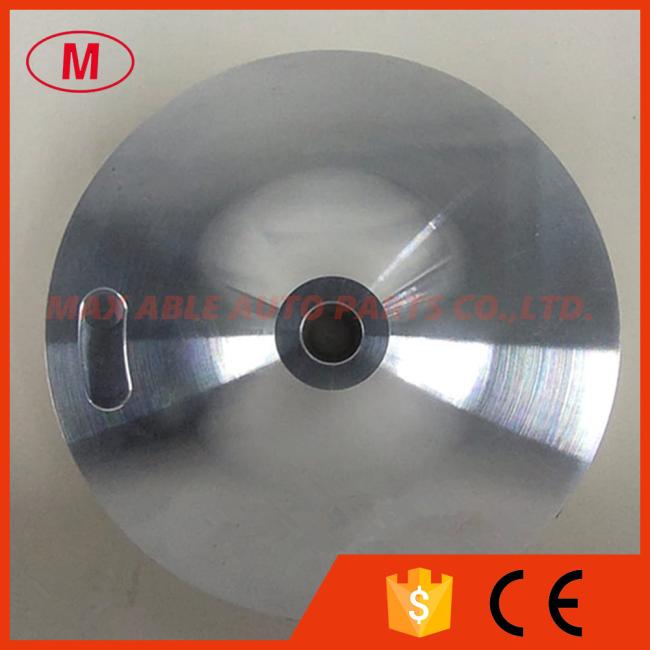

TD05HR 16G6-9T reverse 49.28/65.00mm 6+6 blades 49179-44100 high performance Turbo Billet/milling/Aluminum 2618 compressor wheel for 49178-01500/49178-01510 Lancer Evo04

Price Negotiable
Price: DISCUSS
MOQ: 1PC
Delivery Time: 3-7 DAYS
Brand: NO
Product Description

1. MODEL:TD05HR 16G6-9T Reverse

2.TD05HR 16G6-9T reverse 49.28/65.00mm 6+6 blades 49179-44100 high performance Turbo Billet/milling/Aluminum 2618 compressor wheel for 49178-01500/49178-01510 Lancer Evo04

3.Size:

Nose diameter:13.00 mm

inducer:49.28mm

exducer:65.00mm

Tapered tip exducer:69.15mm

Tip height:4.60mm

Superback:2.80mm

Blade height:27.00mm

Overall height:33.00mm

bore size :6.51mm

bore type :through

Trailing angle:45 degree

Tapered tip Angle: 30 degree

Cutback:6.0mm

Splitter height:18.20mm

Sp height angle:-10.00

6+6 blades

reverse rotation

It is custom size,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
