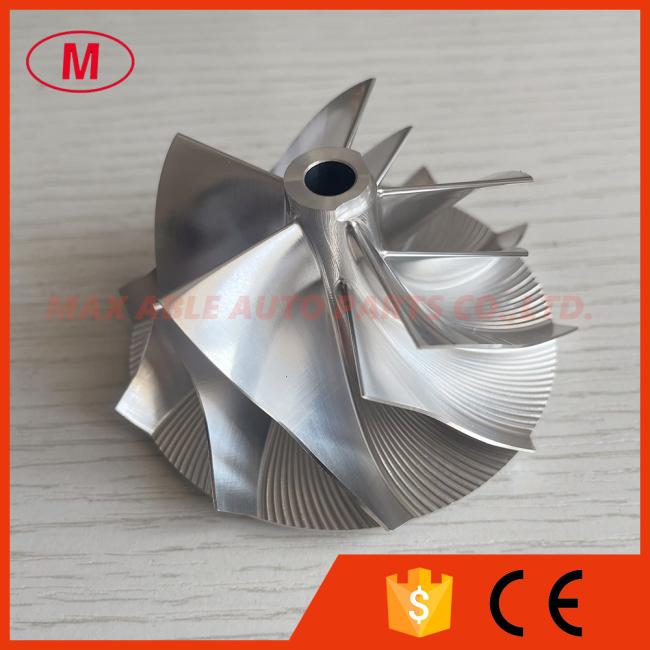

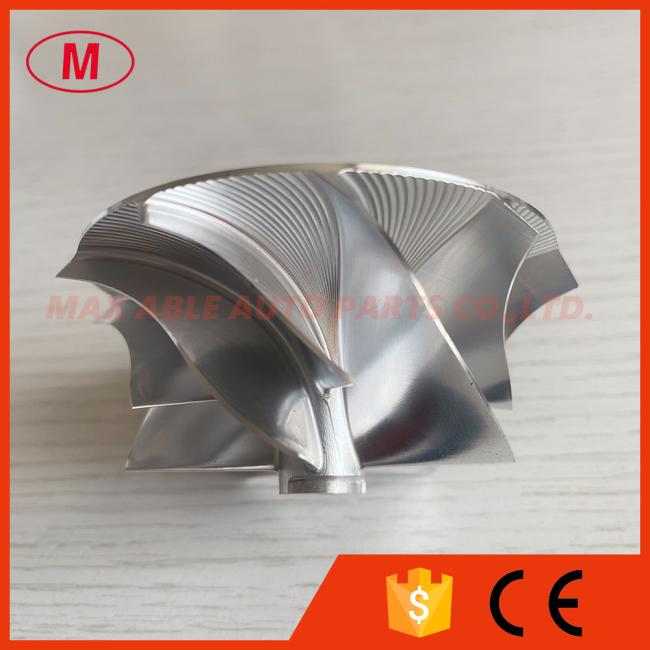

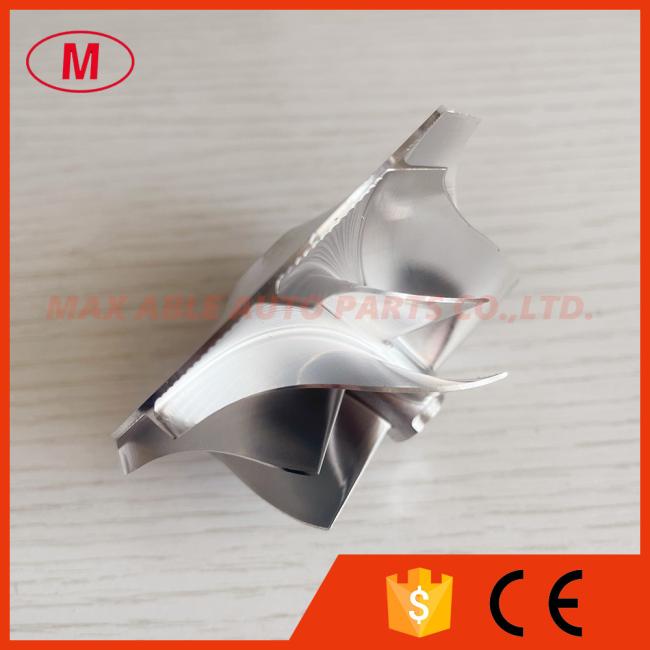

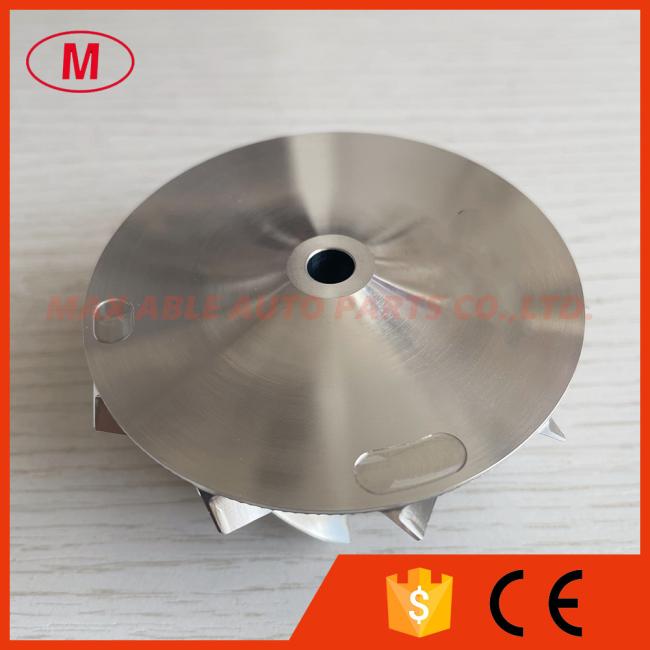

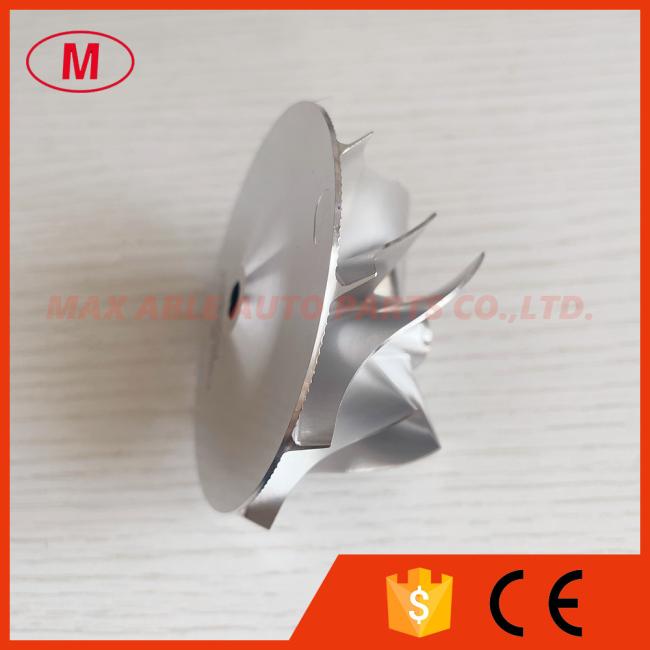

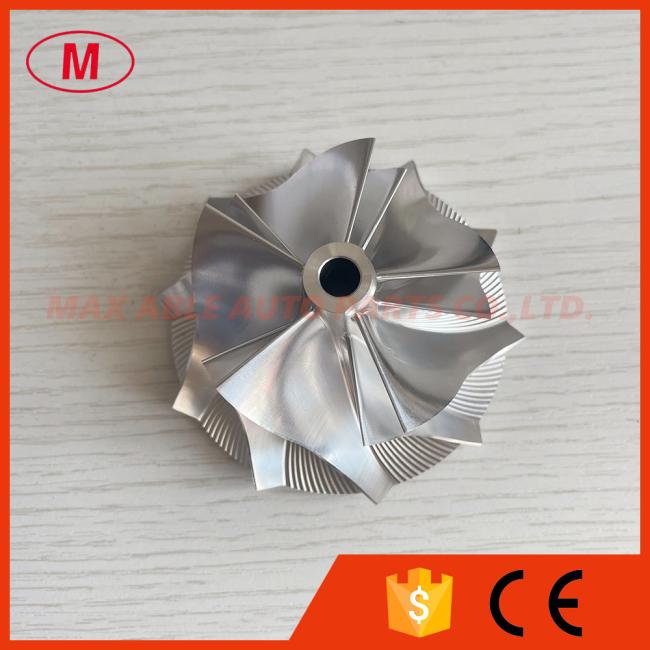

TD05H 20G Forward 5+5 Blades 52.56/68.01mm High Performance Turbo Billet Compressor Wheel

1. MODEL:TD05H 20G forward

2.TD05H 20G forward 5+5 blades 52.56/68.01mm high performance turbo billet/milling/aluminum 2618 compressor wheel

Nose diameter:11.96mm

inducer:52.56mm

Exduder:68.01mm

Tapered tip exducer:73.05mm

Tip height:5.37mm

Superback:2.90mm

Overall height:35.20mm

bore size :6.50mm

bore type:through

Trailing Angle:50 degree

Cutback:0.0mm

SP Height angle:-8.30

Blades height:29.10mm

Splitter height :21.75mm

5+5blades

forward rotation

It is for OE compressor housing

Tapered tip Angle: 30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

All the billet compressor wheels have been blanced.

The more models we also have.
