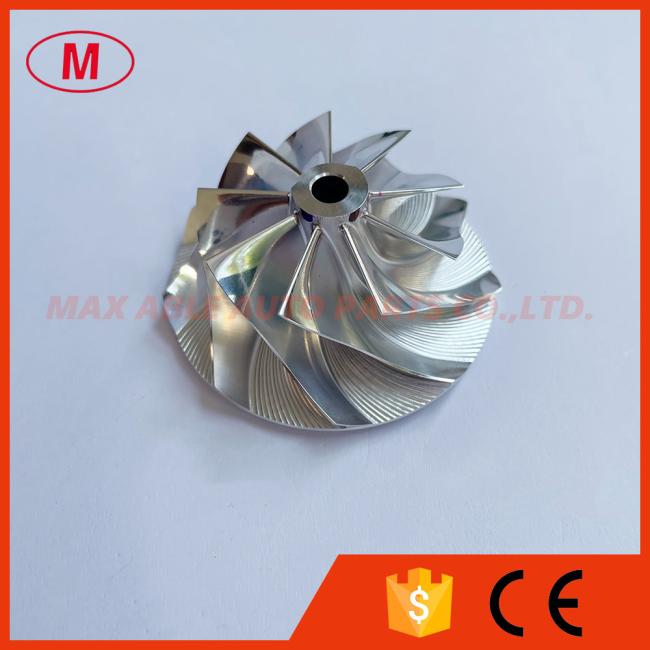

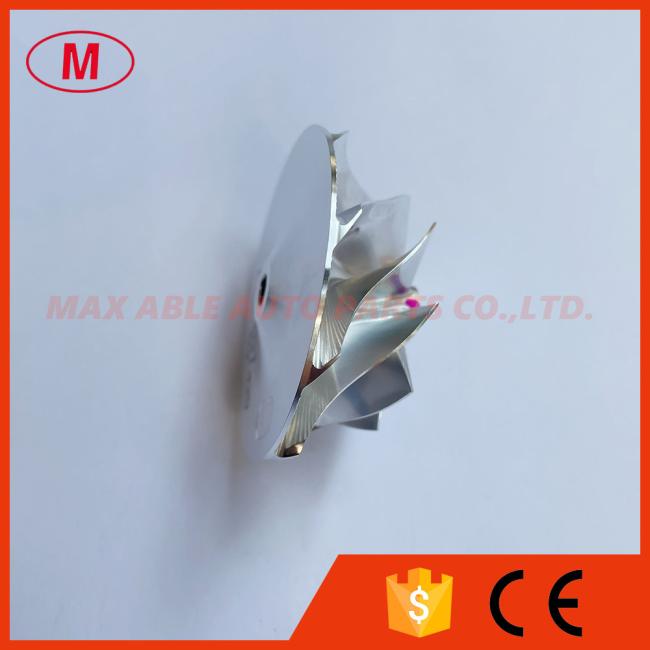

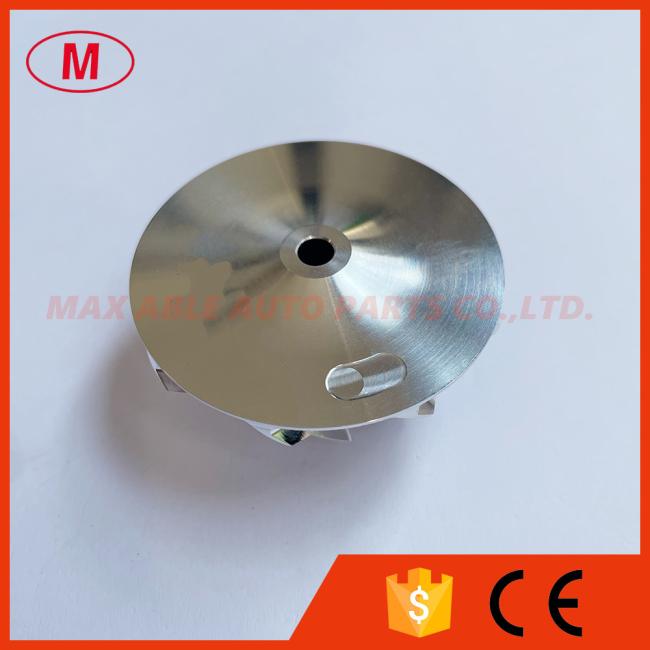

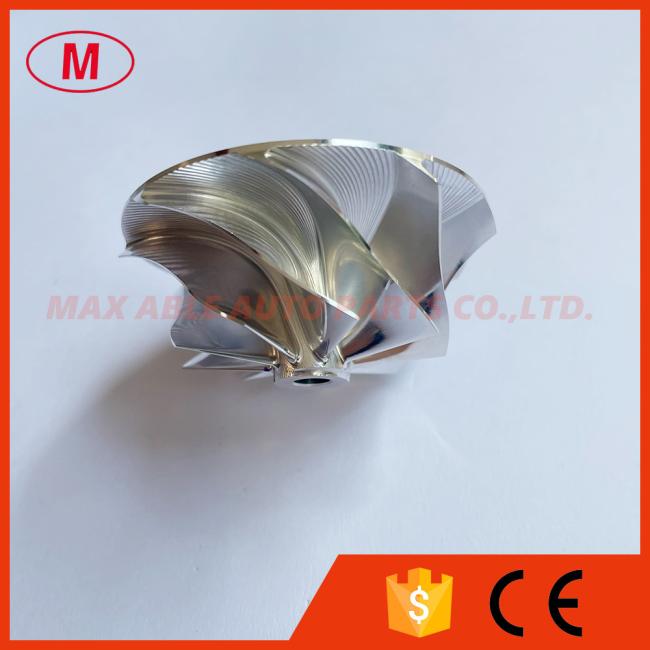

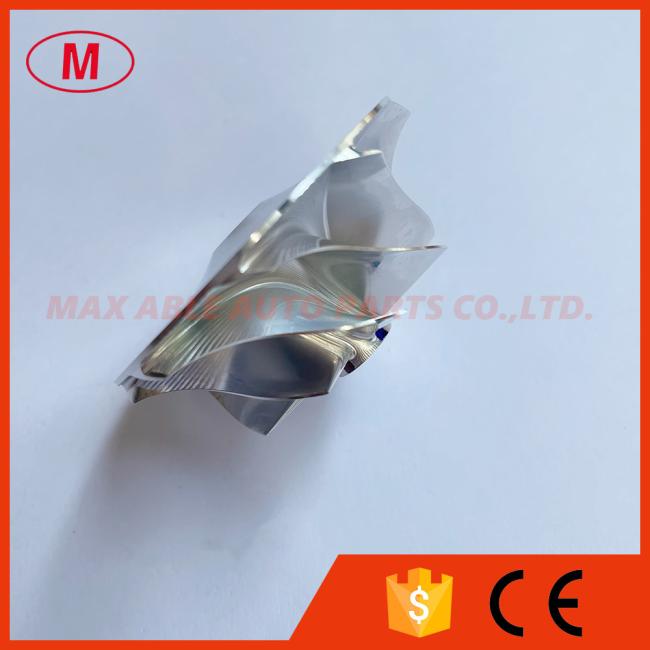

GT15-25 38.50/52.19mm 702492-0001/4 9+0Blades Turbo Aluminum 2618/billet Compressor Wheel for 454135-0003

1. MODEL:GT15-25 forward

2.GT15-25 38.50/52.19mm 702492-0001, 702492-0004 9+0 blades turbo billet/milling/aluminum 2618 compressor wheel for 454135-0003, 454135-0004, 454135-0005, 454135-0008, 454135-0009, 454135-0010, 454205-0003, 710060-0001,710415-0001, 710415-0003, 714334-0001, 723167-0001, 723167-0002, 723167-0003, 723167-0004, 724639-0005, 724639-0006, 727461-0006, 733952-0001, 742693-0001, 742693-0002, 742693-0003

3.Size:

Nose diameter:10.60mm

inducer:38.50mm

Exduder:52.19mm

Tapered tip exducer:53.35mm

Tip height:3.87mm

Superback:2.39mm

Overall height:24.67mm

bore size :5.08mm

bore type:through

Trailing Angle:35 degree

Cutback:6.6mm

SP Height angle:0.00

Blades height:20.35mm

Splitter height:0.00mm

9+0 blades

Forward rotation

Tapered tip angle:11.4 degree

Fit for OE compressor housing

Application:

454135-0003

454135-0004

454135-0005

454135-0008

454135-0009

454135-0010

454205-0003

710060-0001

710415-0001

710415-000

714334-0001

723167-0001

723167-0002

723167-0003

723167-0004

724639-0005

724639-0006

727461-0006

733952-0001

742693-0001

742693-0002

742693-0003

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

All the billet compressor wheels have been balanced.
