S100 47.00/61.98mm 9+0 Blades Point Milling Turbo Milling/aluminum 2618/billet Compressor Wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description
1. MODEL:S100 forward

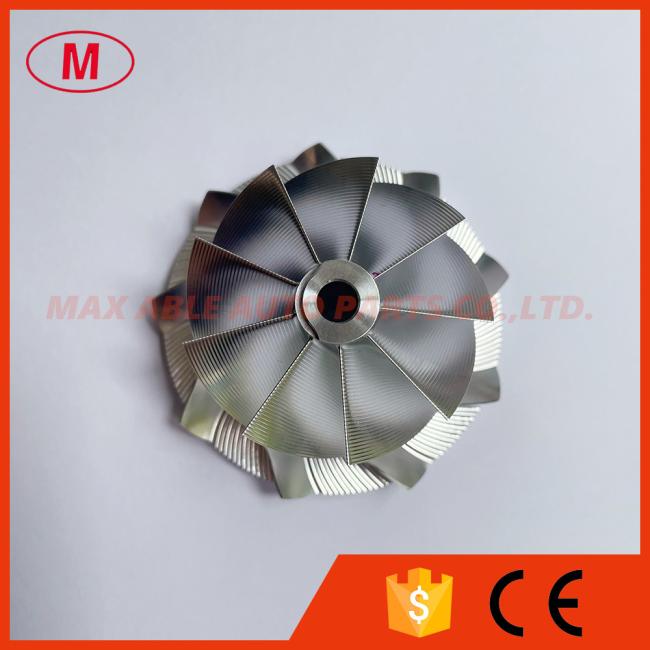

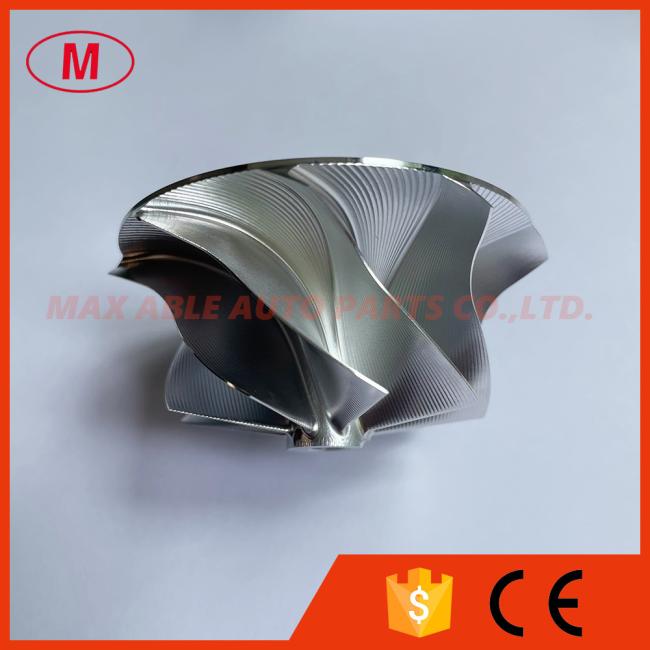

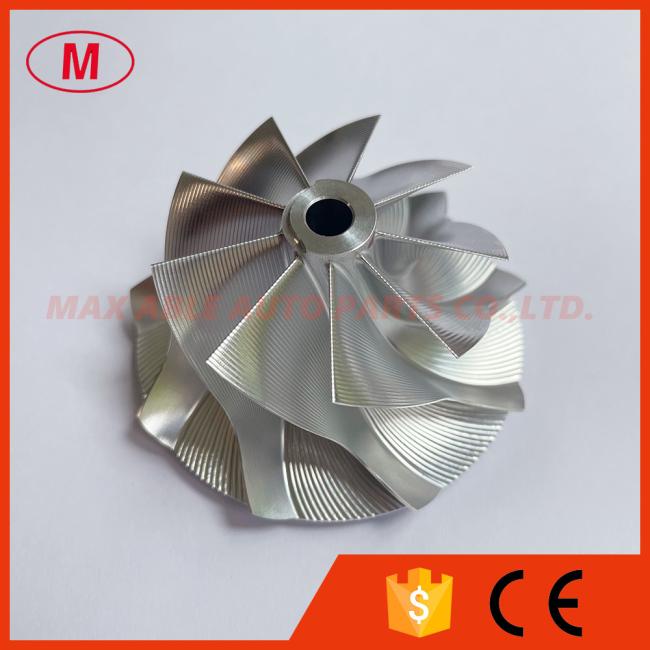

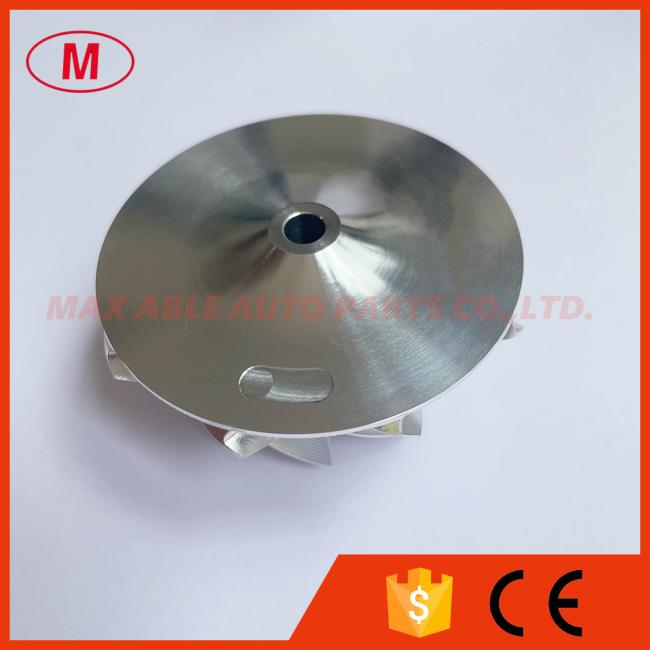

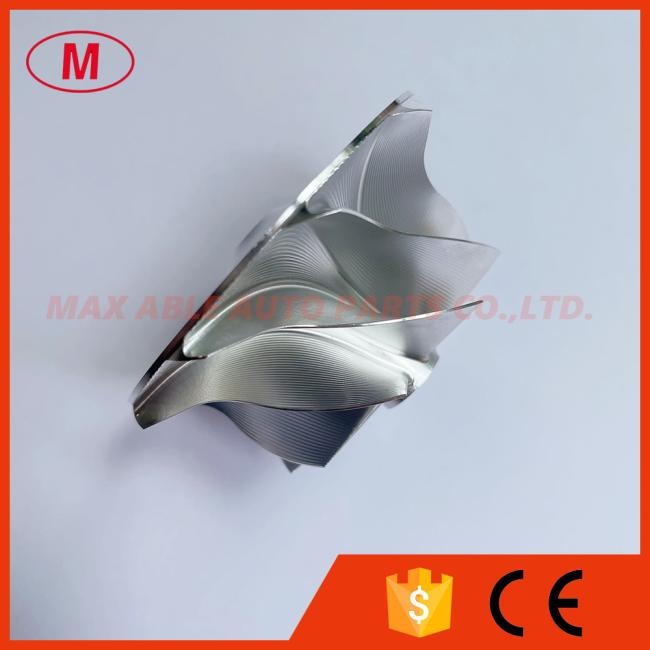

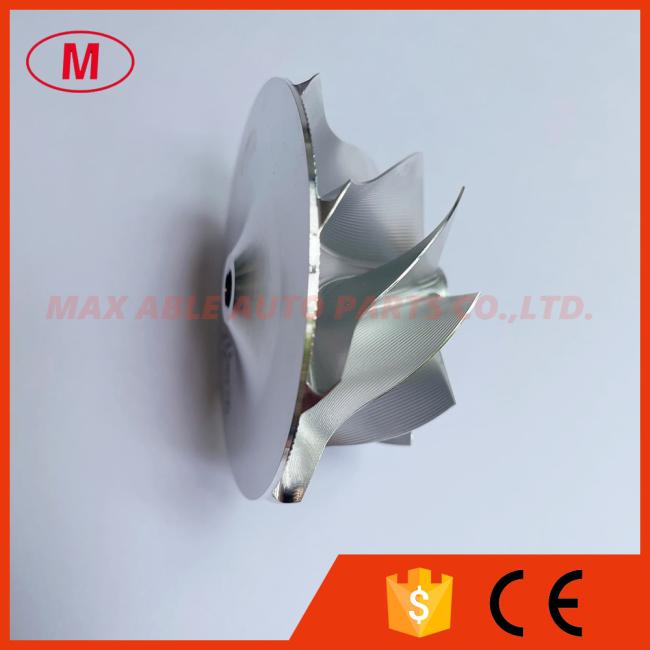

2.S100 47.00/61.98mm 9+0 Blades Point Milling Turbo Milling/aluminum 2618/billet Compressor Wheel
3.Size:
Nose diameter:12.19mm
Inducer:47.00mm
exducer:61.98mm
Tapered tio exducer:65.45mm
Tip height:4.41mm
Superback:3.71mm
bore size :6.00mm
bore type:through
Overall height:34.00mm
Cutback:8.5mm
Trailing Angle:35 degree
Blades height:28.20mm
Splitter height:0.00mm
SP height angle:0.00
9+0 blades
forward rotation
It is custom size ,please check carefully before buying.
Tapered tip Angle:27degree

4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
