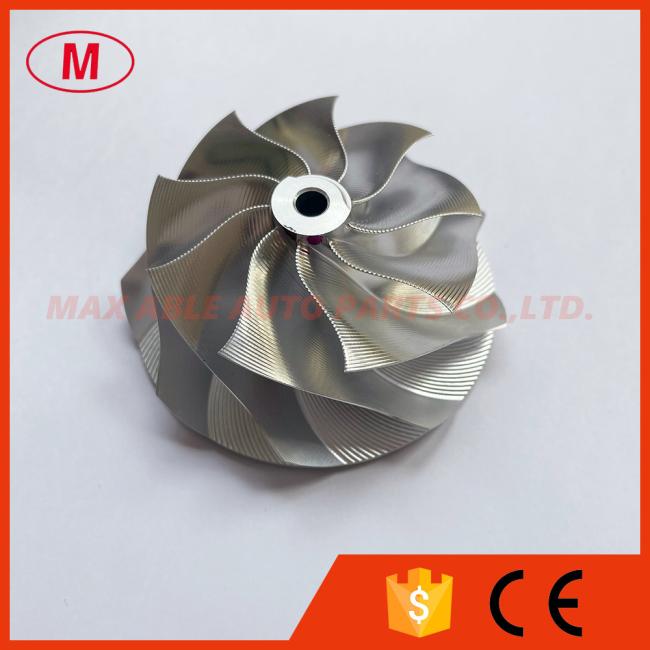

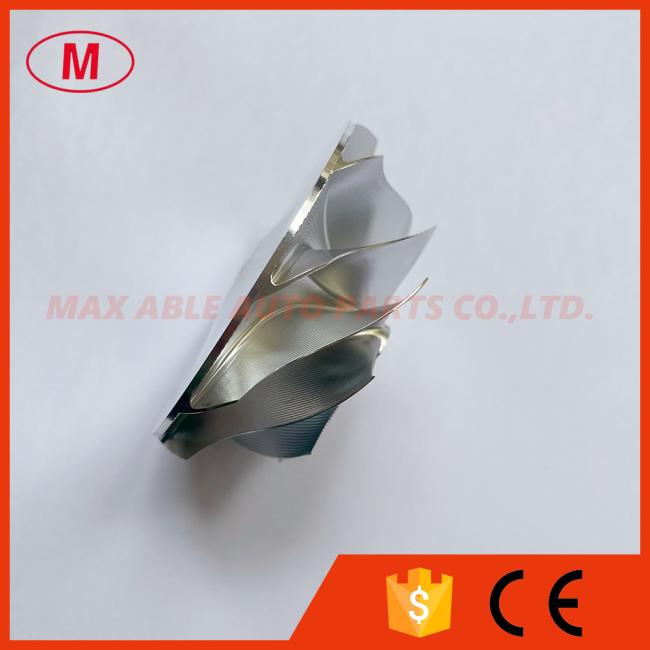

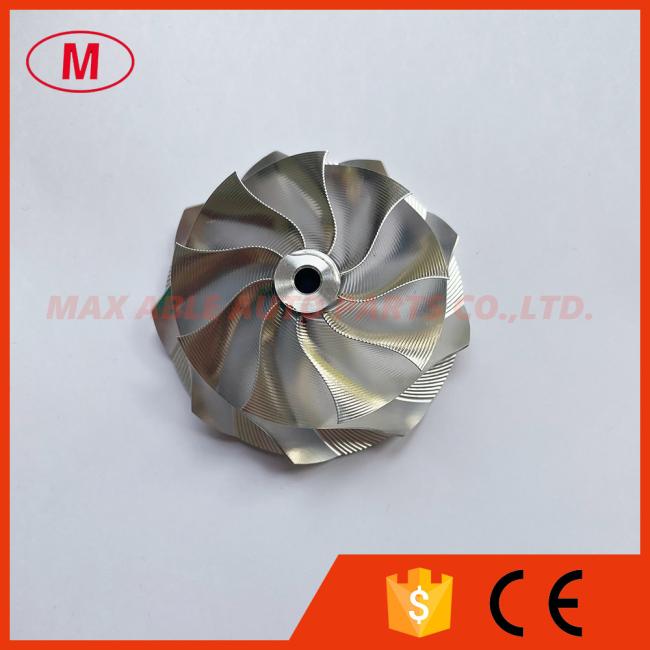

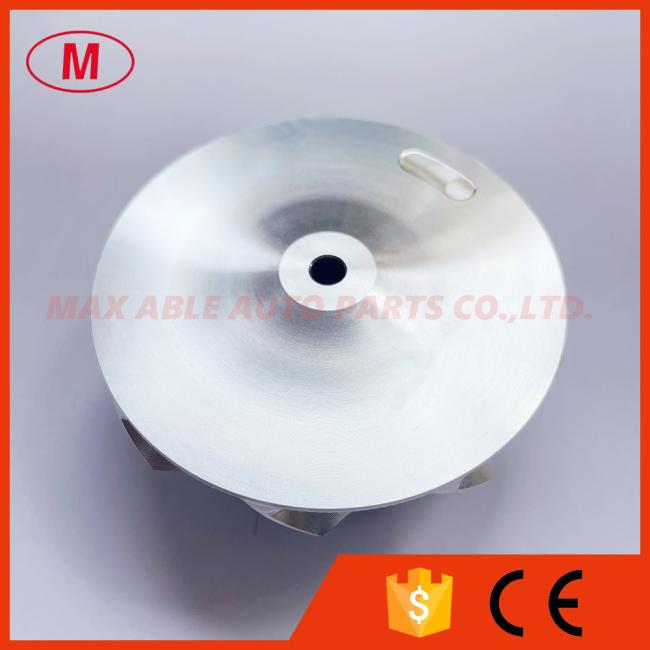

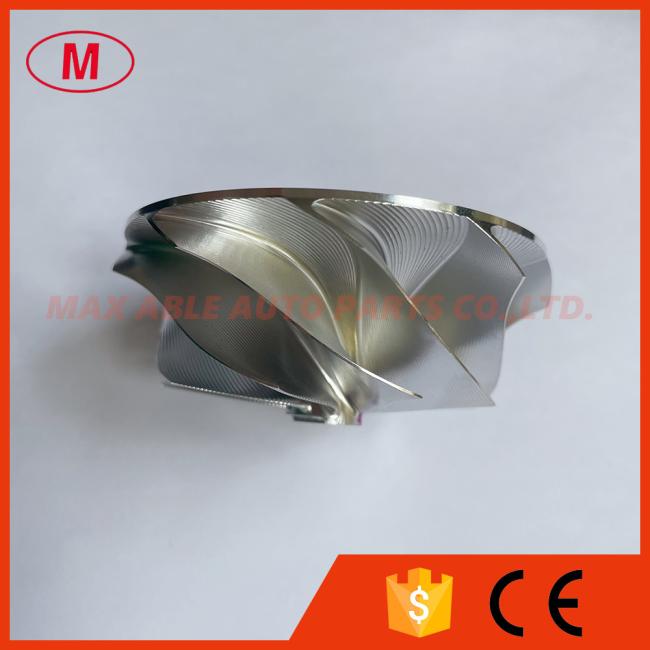

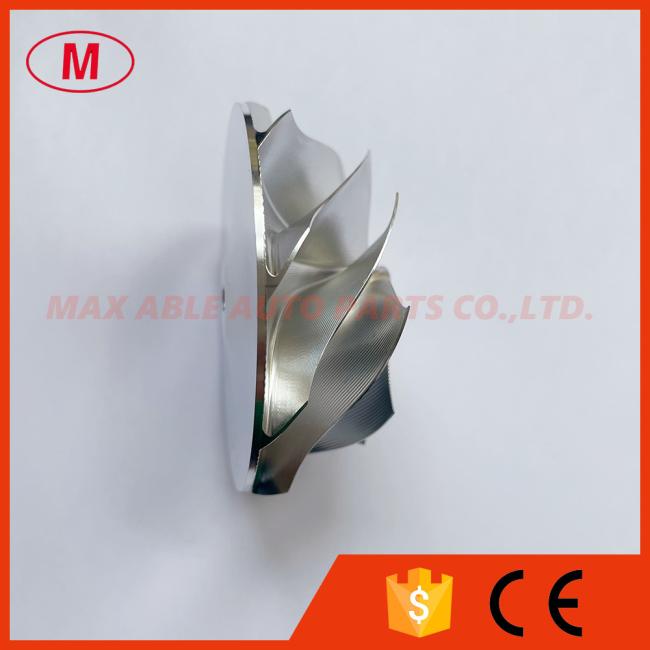

TD04 forward 54.28/67.40mm 9+0 Blades point milling snake curve turbo aluminum 2618/Milling/billet compressor wheel
1.Model:TD04 forward
2. TD04 forward 54.28/67.40mm 9+0 Blades point milling snake curve turbo billet/aluminum 2618/Milling compressor wheel
3.Size:
Nose diameter:12.40mm
Inducer:54.28mm
Exducer:67.40mm
Tapered tip exducer:69.80mm
Tip height:7.17mm
Trailing angle:35 degree
Superback:1.90mm
Bore:5.00mm
bore type:through
Cutback:6.6mm
Overall height:30.00mm
SP Height angle:0.00
Blades height:26.05mm
Splitter height:0.00mm
9+0 blades
Tapered tip angle:11.4 degree
reverse rotation
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
All the compressor wheels have been balanced.
