TD04 Forward 43.30/56.00mm 6+6 Blades High Performance Point Milling Snake Curve Milling/aluminum 2618/billet Compressor Wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: no
Product Description

1. MODEL:TD04 forward

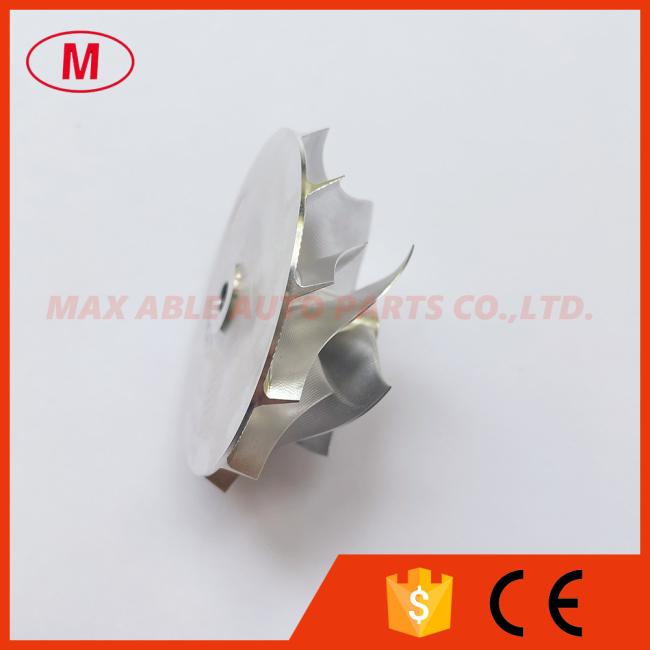

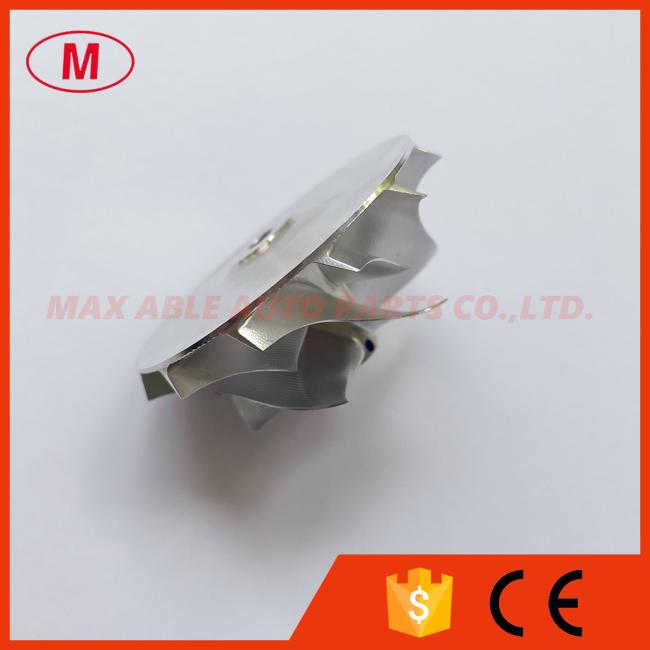

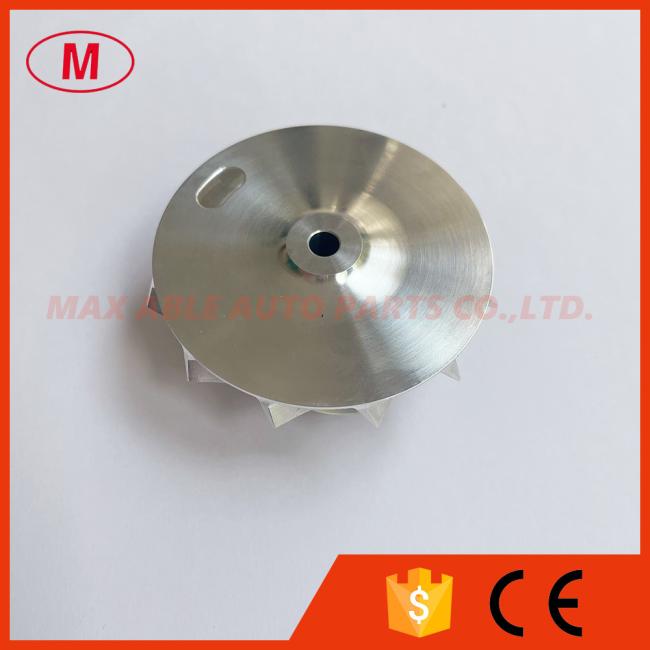

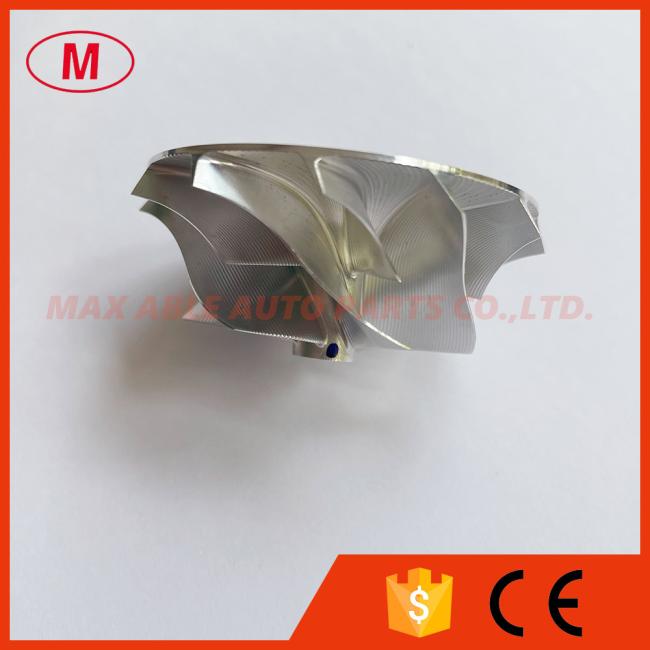

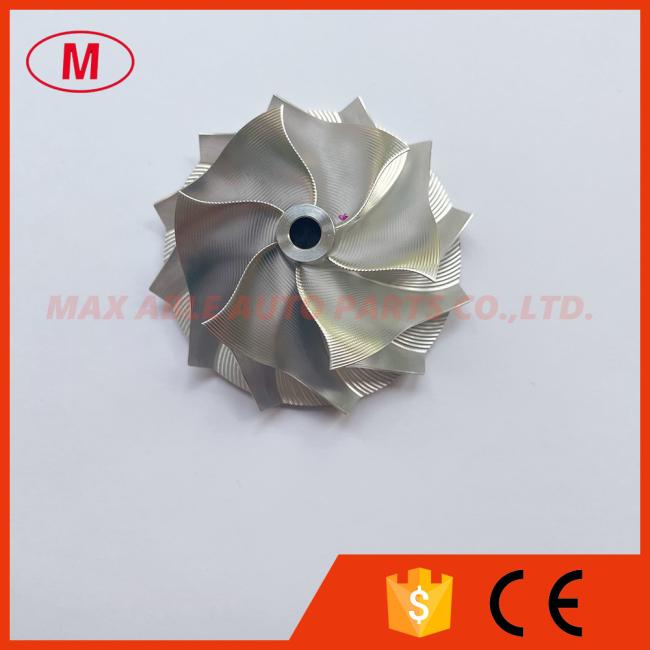

2.TD04 Forward 43.30/56.00mm 6+6 Blades High Performance Point Milling Snake Curve Milling/aluminum 2618/billet Compressor Wheel

3.Size:

Nose diameter:9.09mm

inducer:43.30mm

Exduder:56.00mm

Tapered tip exducer:60.37mm

Tip height:5.29mm

Superback:1.90mm

Overall height:26.00mm

bore size :5.00mm

bore type:through

Trailing Angle:60 degree

Cutback:3.0mm

SP height angle:-7.00

Blade height:20.90mm

Splitter height:13.00mm

6+6 blades

Tapered tip Angle:27 degree

Forward rotation

It is Custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

All the billet compressor wheels have been balanced.

The more models we also have.



Wechat/Whatsapp:+86-18018657719
