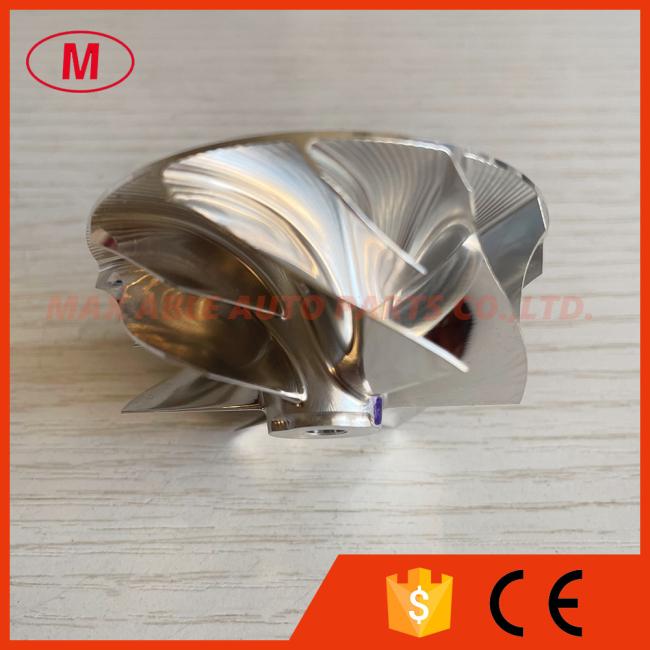

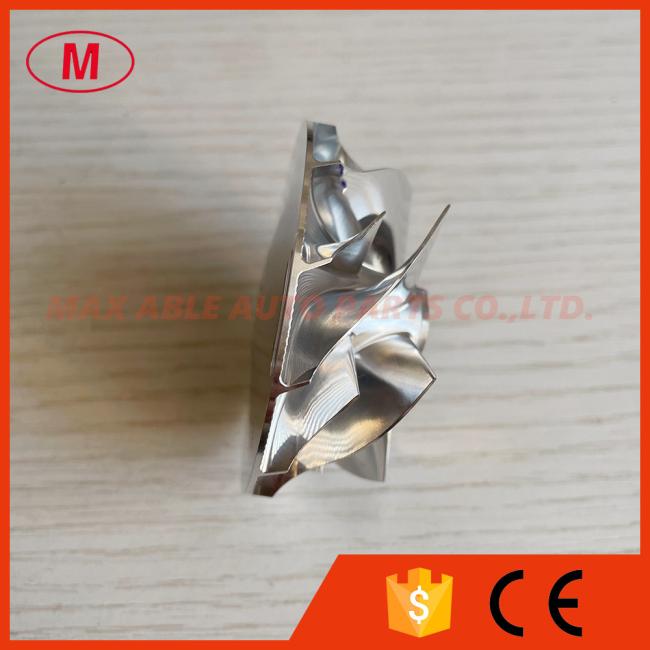

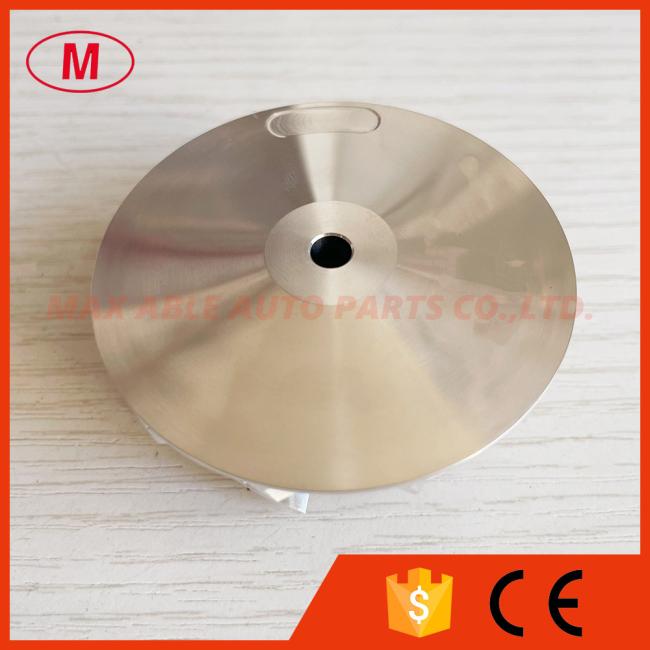

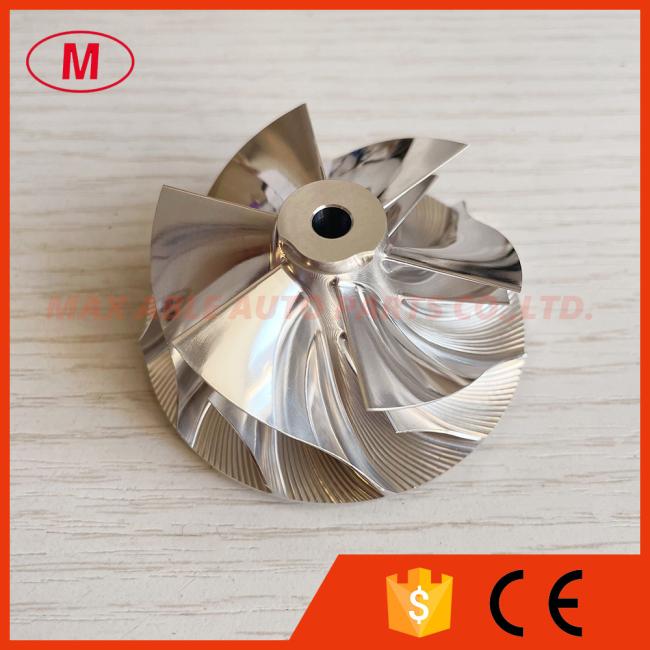

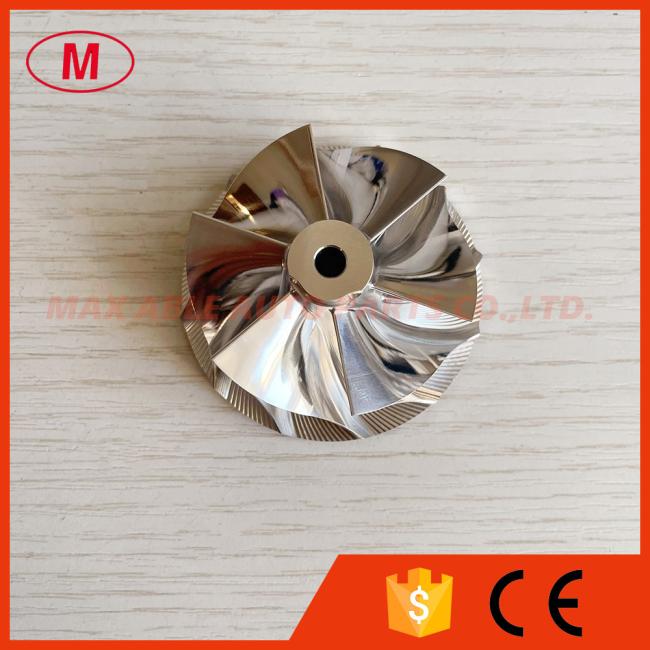

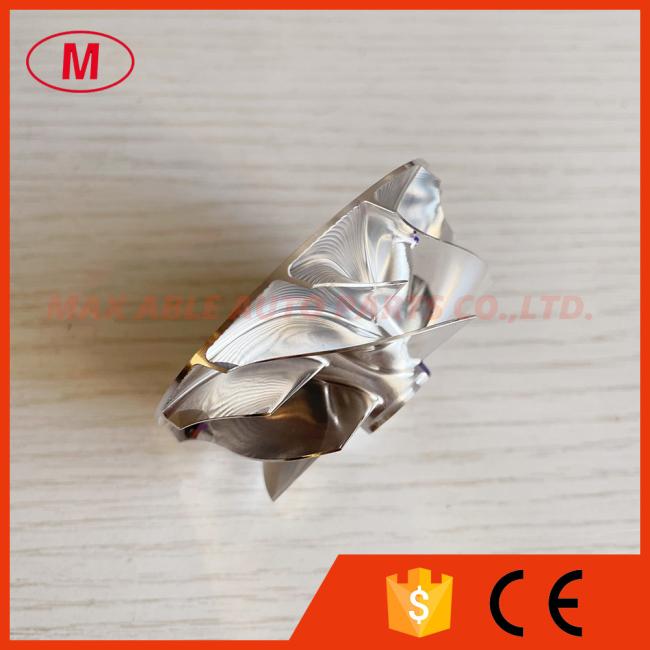

TD04L6,18900-5BF-A01 Forward 49.25/58.00mm 6+6 Blades Billet Compressor Wheel for 18900-5BF-A010-M3, 189005BFA010M3, 18900-5BF-A01, 189005BFA01 2017- Honda Civic Type R (FK8) with KA 6MT Engine
1. MODEL:TD04L6 forward
2.TD04L6,18900-5BF-A01 Forward 49.25/58.00mm 6+6 Blades Billet Compressor Wheel for 18900-5BF-A010-M3, 189005BFA010M3, 18900-5BF-A01, 189005BFA01 2017- Honda Civic Type R (FK8) with KA 6MT Engine/Honda 2SV with AP4T Engine
3.Size:
Nose diameter:13.85mm
inducer:49.25mm
Exduder:58.00mm
Tip height:4.58mm
Superback:2.00mm
Overall height:26.20mm
bore size :5.01mm
bore type:through
Trailing Angle:60 degree
Cutback:0.0mm
SP height angle:0.00
Blade height:21.20mm
Splitter height:11.85mm
6+6 blades
Tapered tip Angle:0 degree
Forward rotation
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
