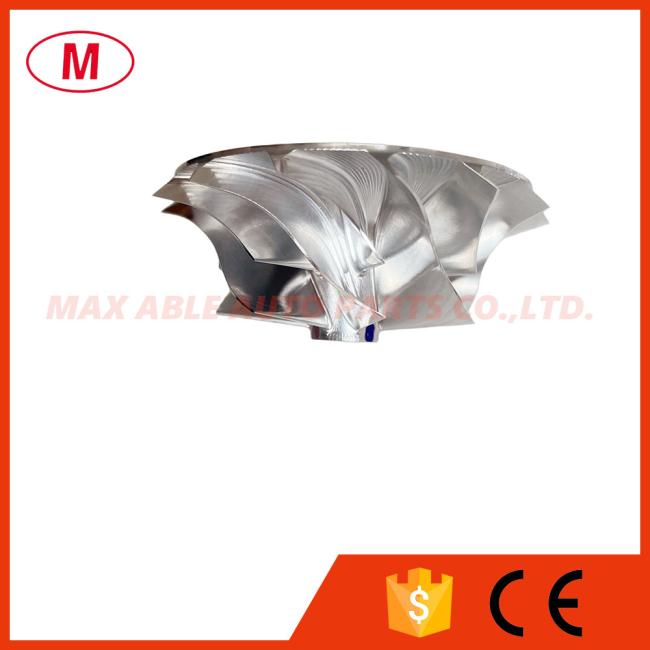

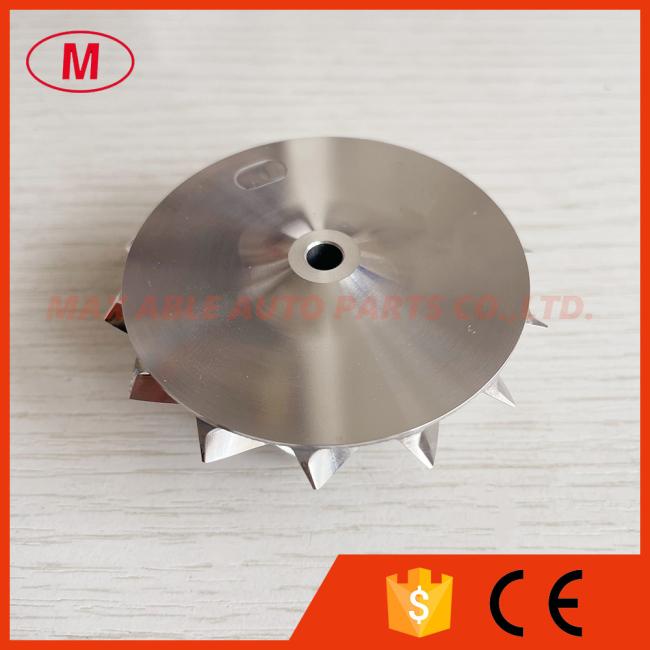

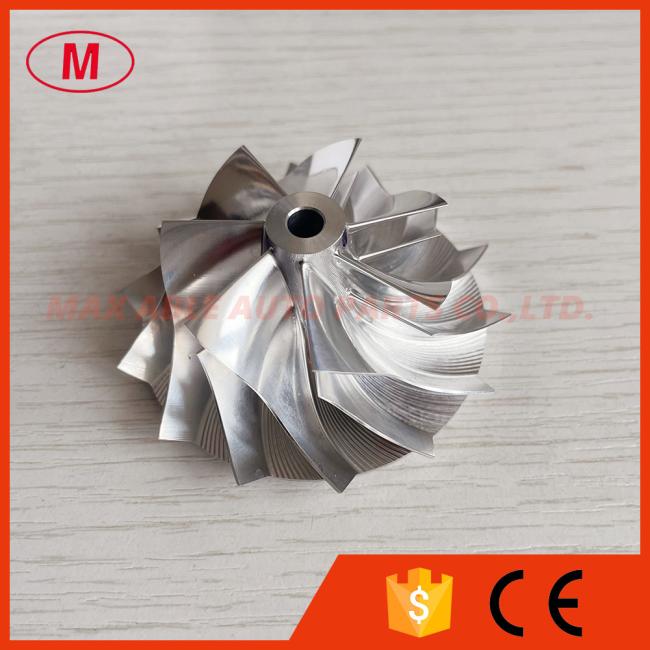

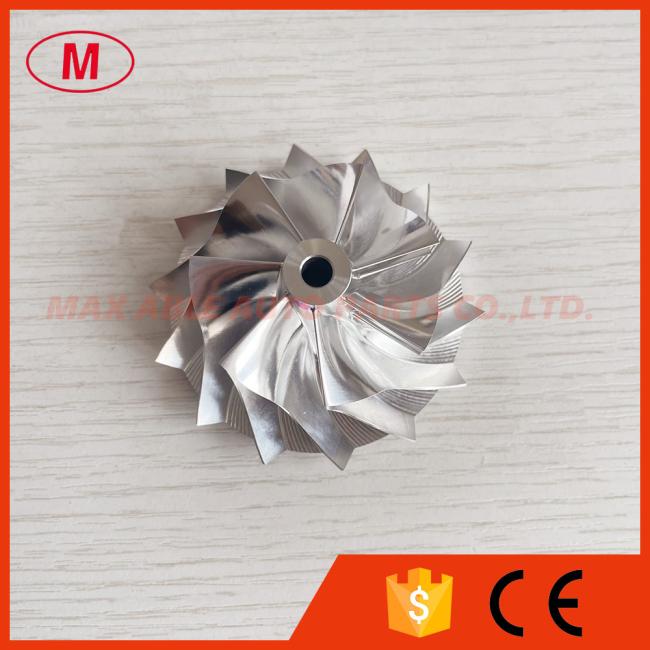

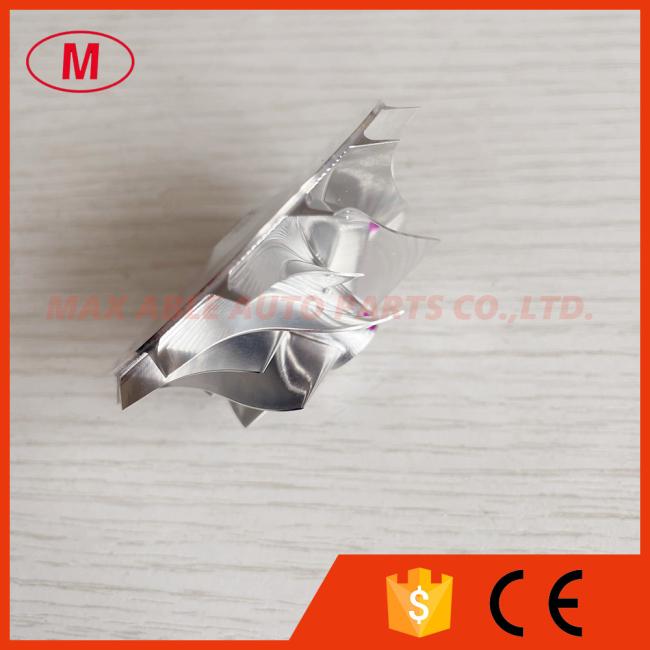

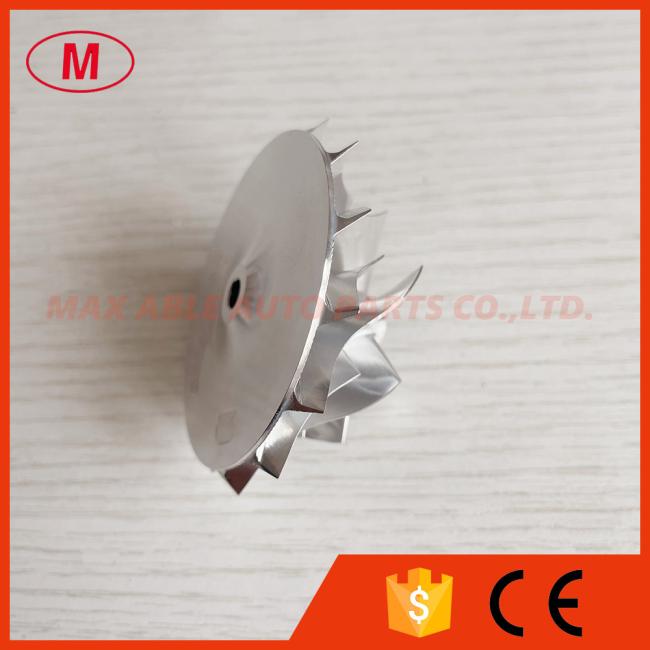

TD04HL 15T 1401-404-426 49189-43500 42.00/56.02mm 7+7blades Turbocharger milling/aluminum 2618 /Billet compressor wheel for 49189-00560, 49189-00570, 49189-00580, 49189-00590, 49189-01700,49189-01800,

1. MODEL:TD04HL 15T Forward

2.TD04HL 15T 1401-404-426 49189-43500 42.00/56.02mm 7+7blades Turbocharger milling/aluminum 2618 /Billet compressor wheel for 49189-00560, 49189-00570, 49189-00580, 49189-00590, 49189-01700, 49189-01800, 49189-01810, 49189-01820,49189-01830,49189-02310,49189-02311,49189-02320,49189-02330,49189-02340, 49189-02350, 49189-02600, 49189-04200, 49189-07000, 49189-07001, 49377-06350, 49377-06351, 49377-06360, 49377-06361, 49389-01700  V40 2.0 T4,Saab 9-3 2.3 Turbo, S40 2.0 T4,Saab 9000 2.3 Aero

3.Size:

Nose diameter:11.00mm

inducer:42.00mm

Exducer:56.02mm

Tapered tip exducer:62.89mm

Tip height:4.44mm

Superback:1.83mm

Bore size:5.00mm

bore type:through

Cutback:6.0mm

Overall height:26.20mm

Blade height:22.40mm

Splitter height:13.70mm

Sp height angle:0.00

7+7 blades

It is for OE compressor housing

Tapered tip angle:45 degree

Trailing angle :60 degree
